- Non-Blocking Throughput Switching Performance
- Gigabit Ethernet RJ45 and SFP+/SFP Ports
- Auto-Sensing IEEE 802.3af/at PoE
Advanced Switching Technology for the Masses

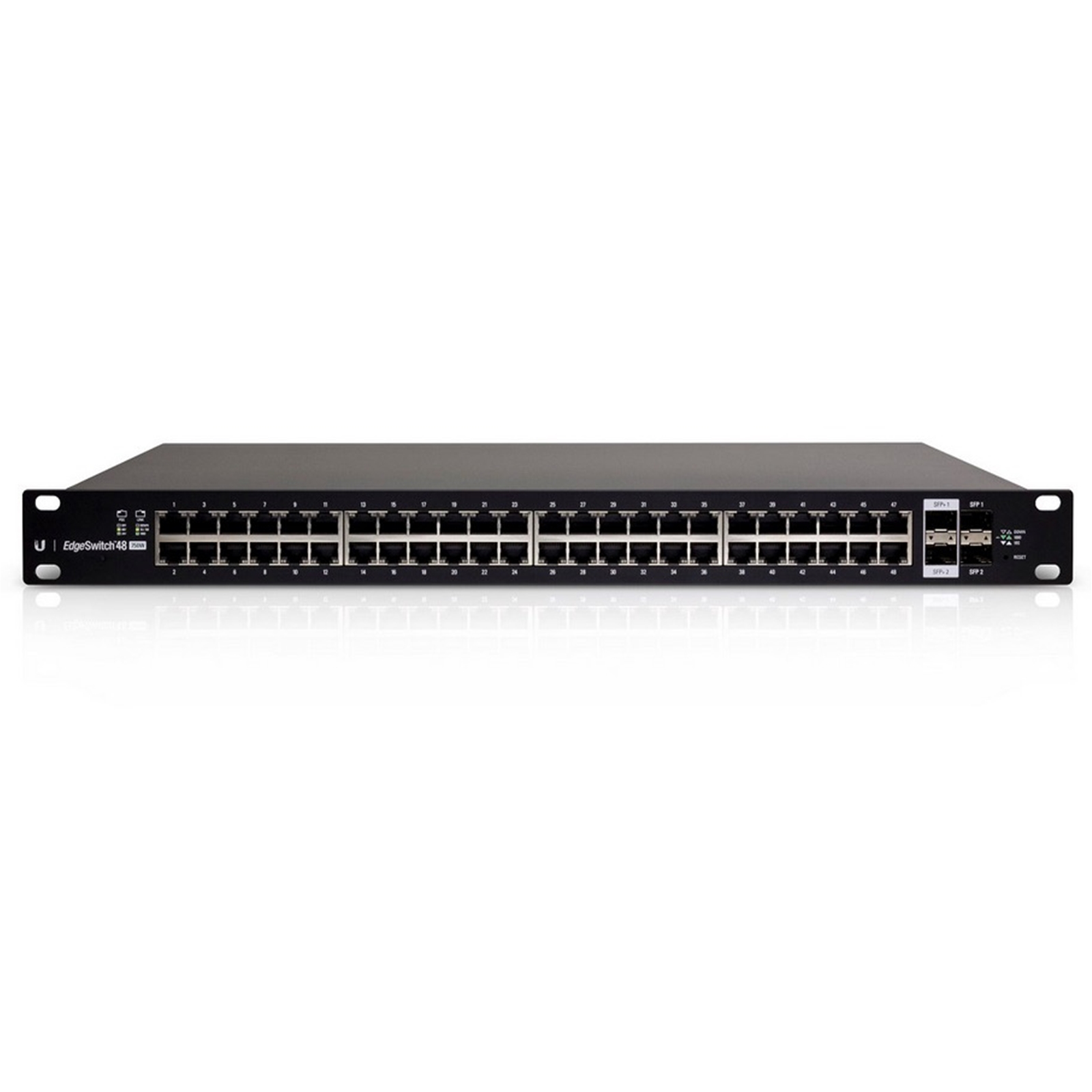

Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.
PoE+ Flexibility
The EdgeSwitch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.
By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration
Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through telnet and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
Warranty:
Manufacturers Warranty - For further details please visit the manufacturers website.
CERTIFICATION
|
Certification |
CE, FCC, IC |
DATA TRANSMISSION
|
MAC address table |
16384 entries |
Switching capacity |
140 Gbit/s |
Jumbo frames support |
Yes |
Number of queues |
8 |
Forwarding rate |
104.16 Mpps |
DESIGN
|
Certification |
CE, FCC, IC |
Rack mounting |
Yes |
Form factor |
1U |
LED indicators |
Activity, Link, PoE |
Product colour |
Black |
ENERGY MANAGEMENT
|
Power consumption (typical) |
500 W |
AC input frequency |
50 - 60 Hz |
AC input voltage |
100 - 240 V |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Switch layer |
L2/L3 |
Quality of Service (QoS) support |
Yes |
Web-based management |
Yes |
Switch type |
Managed |
MULTICAST FEATURES
|
Multicast support |
Yes |
NETWORKING
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
Flow control support |
Yes |
Port mirroring |
Yes |
Link aggregation |
Yes |
Broadcast storm control |
Yes |
Number of VLANs |
4093 |
Spanning tree protocol |
Yes |
VLAN support |
Yes |
10G support |
Yes |
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
Virtual LAN features |
Voice VLAN, Port-based VLAN |
OPERATIONAL CONDITIONS
|
Operating relative humidity (H-H) |
5 - 95% |
Operating temperature (T-T) |
-5 - 40 °C |
PERFORMANCE
|
Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
Gigabit Ethernet (copper) ports quantity |
48 |
Console port |
RJ-45 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
48 |
SFP module slots quantity |
2 |
SFP+ module slots quantity |
2 |
POWER OVER ETHERNET (POE)
|
Power over Ethernet (PoE) |
Yes |
PROTOCOLS
|
Management protocols |
SNMP v1, v2, v3 |
SECURITY
|
MAC address filtering |
Yes |
Access Control List (ACL) |
Yes |
IGMP snooping |
Yes |
Access Control List (ACL) rules |
10 |
DHCP features |
DHCP server, DHCP snooping |
WEIGHT & DIMENSIONS
|
Weight |
5.3 kg |
Height |
44.5 mm |
Width |
485 mm |
Depth |
347.6 mm |
