Includes UK USB C Power Supply
Key Features
Up to 10x routing performance increase over UniFi USG
Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
1 x GbE WAN port
1 x GbE LAN port
Compact footprint

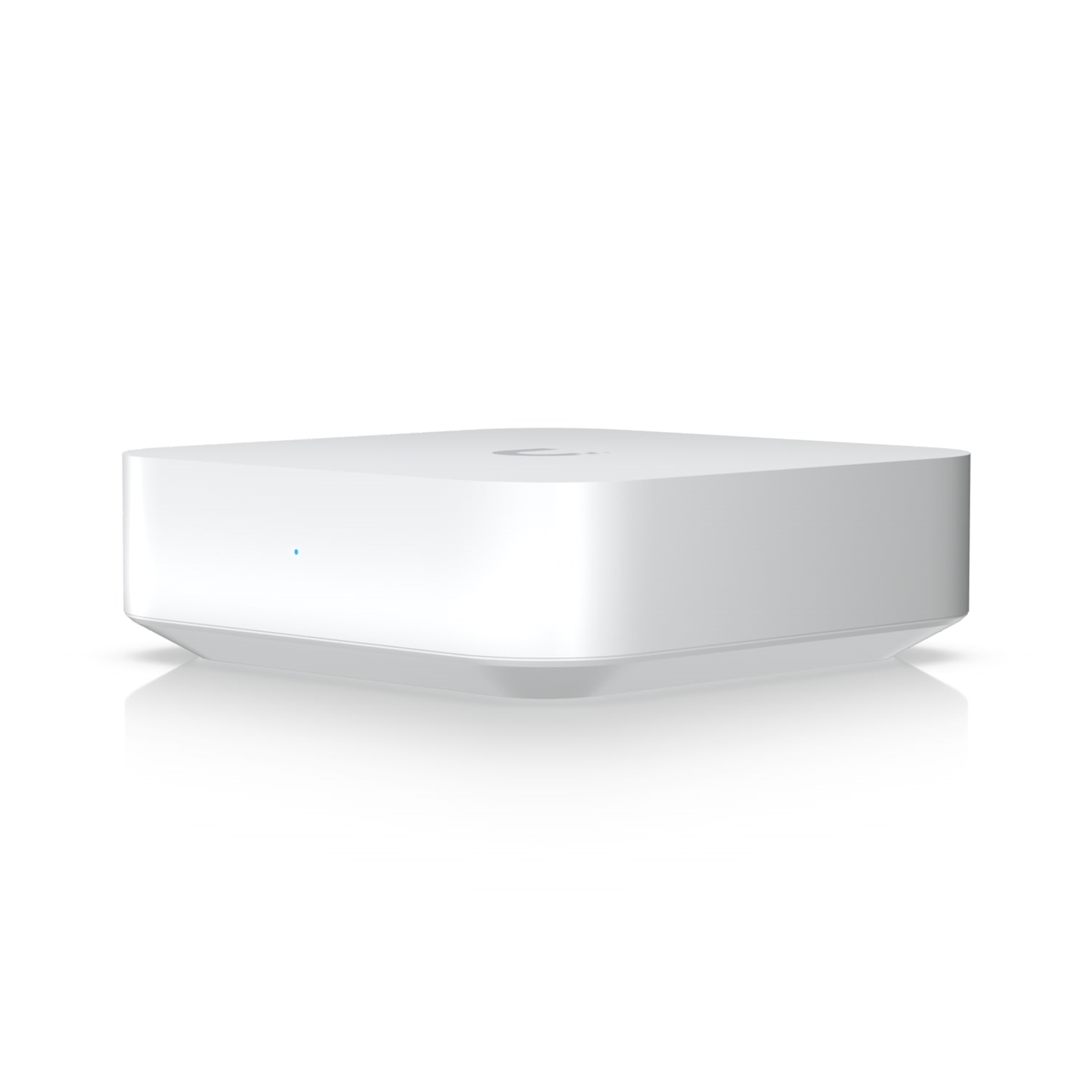

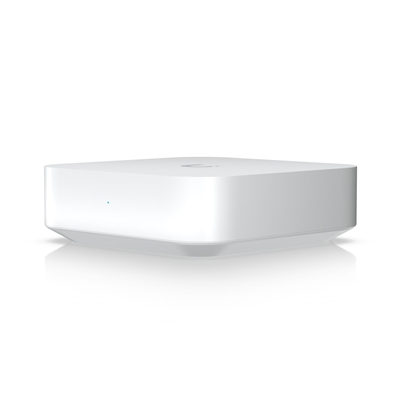

The Ubiquiti UniFi UXG-Lite is a compact yet powerful gateway, equipped with a comprehensive suite of advanced routing and security features. It significantly boosts routing performance, offering up to 10 times the capability of its predecessor, the UniFi USG, especially when tested with IPS/IDS, QoS, and Smart Queues. The device can be managed using a Cloud Key, Official UniFi Hosting, or a UniFi Network Server.
The UXG-Lite's hardware consists of a dual-core ARM Cortex-A53 processor at 1 GHz and 1 GB DDR3L memory. For connectivity, it includes one Gigabit Ethernet (GbE) WAN port and one GbE LAN port. It also supports Bluetooth 5.1, and is USB-C powered (with an adapter included), supporting a voltage range of 100–240V.
UXG-Lite offers performance WiFi QoS with UniFi APs, application, domain, and country-based QoS, and application and device type identification. It also provides additional internet quality and outage reporting, and next-generation security with application-aware firewall rules and signature-based IPS/IDS threat detection.
The UXG-Lite also supports VLAN/subnet-based traffic segmentation, a full stateful firewall, and advanced networking options including license-free SD-WAN, WireGuard, L2TP and OpenVPN server, and more?.
Specification
Mechanical
Weight & Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
320 g (11.3 oz)
Enclosure materials
Polycarbonate
Hardware
Processor
Dual-core ARM Cortex-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
Ethernet
Bluetooth 5.1
Networking interface
1 x GbE RJ45 WAN port
1 x GbE RJ45 LAN port
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
3.83W
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity Enterprise VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Application Requirements
UniFi Network
Version 8.0.7 and later
Box Contents
1 x UXG-Lite
1 x USB-C power adapter EU
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CERTIFICATES
|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
DESIGN
|
| LED indicators |
Yes |
| Product colour |
White |
| Enclosure material |
Polycarbonate (PC) |
DISPLAY
|
| Control display unit |
No |
ENERGY MANAGEMENT
|
| Input voltage |
5 V |
| Input current |
3 A |
| Power consumption (max) |
3.83 W |
ILLUMINATION/ALARMS
|
| LED indicators |
Yes |
MANAGEMENT FEATURES
|
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
MEMORY
|
| Internal memory |
1000 MB |
| Internal memory type |
DDR3L |
NETWORKING
|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
PERFORMANCE
|
| Processor frequency |
1000 MHz |
| Internal memory |
1000 MB |
| Processor model |
Cortex-A53 |
| Internal memory type |
DDR3L |
| Number of processors installed |
1 |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Control display unit |
No |
PORTS & INTERFACES
|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
2 |
PROTOCOLS
|
| DHCP server |
Yes |
SECURITY
|
| Security algorithms |
IPSec |
| Firewall security |
Yes |
| VLAN support |
Yes |
SUSTAINABILITY
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, Federal Communications Commission (FCC) |
TECHNICAL DETAILS
|
| Processor frequency |
1000 MHz |
| Number of processors installed |
1 |
| Built-in processor |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
WEIGHT & DIMENSIONS
|
| Weight |
320 g |
| Height |
30 mm |
| Width |
98 mm |
| Depth |
98 mm |
