Target Components

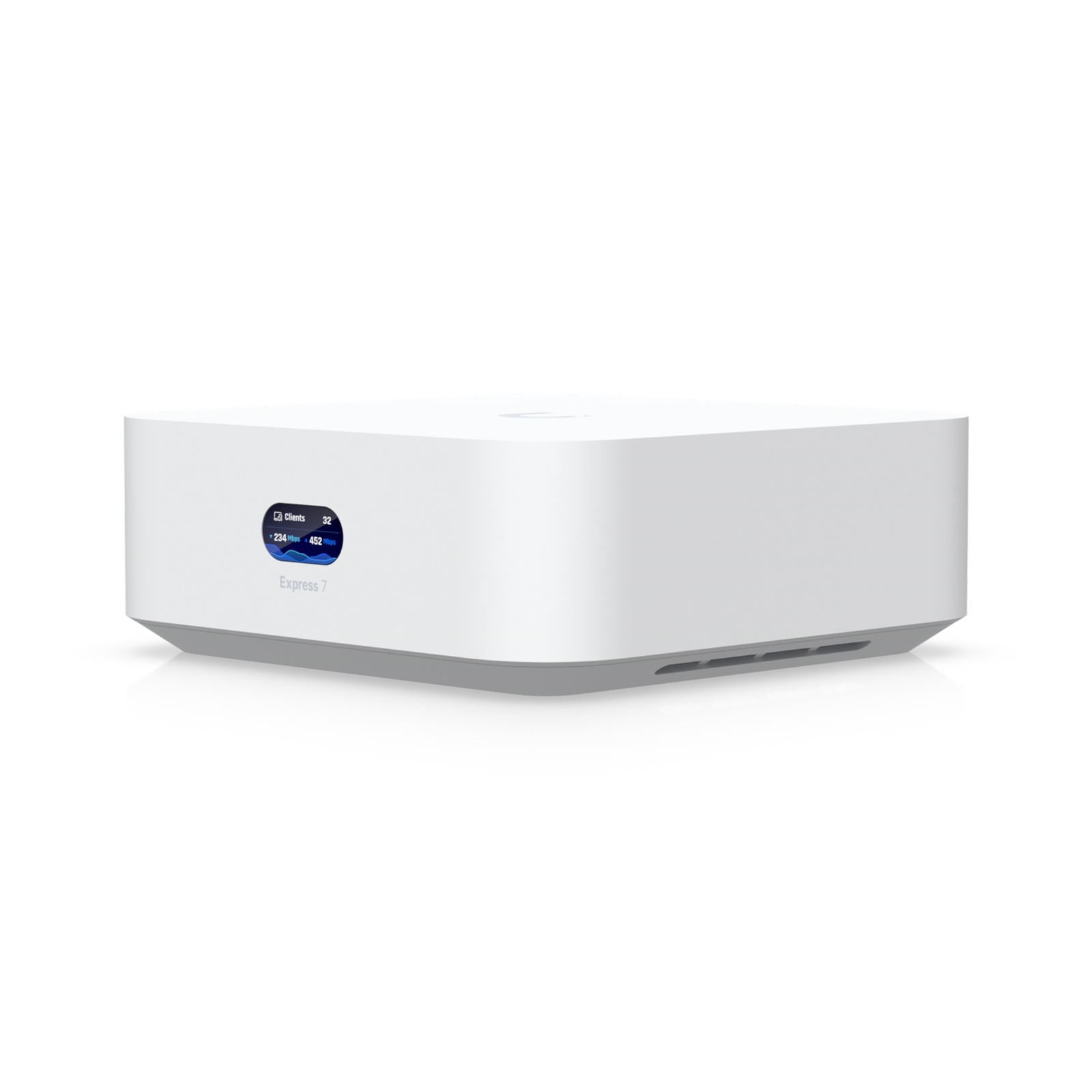

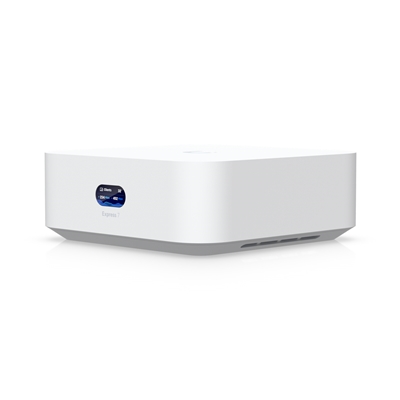

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

Dimensions
117 x 117 x 42.5 mm
(4.61 x 4.61 x 1.67'')

UniFi Application Suite
Network
Yes

Managed UniFi Devices
30

Simultaneous Users Connected
300

Default WAN Ports
(1) 10 GbE RJ45

LAN Ports
(1) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput
6 GHz
5.7 Gbps

5 GHz
4.3 Gbps

2.4 GHz
688 Mbps

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz
6 dBi

5 GHz
7 dBi

2.4 GHz
4 dBi

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio (Gateway Mode)
4 per Radio (AP Mode)

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Max. Power Consumption
22W

Power Method
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3GB

Weight
422 g (14.9 oz)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth

System LEDs
Ethernet

Certifications
CE, FCC, IC

Button
Factory Reset
