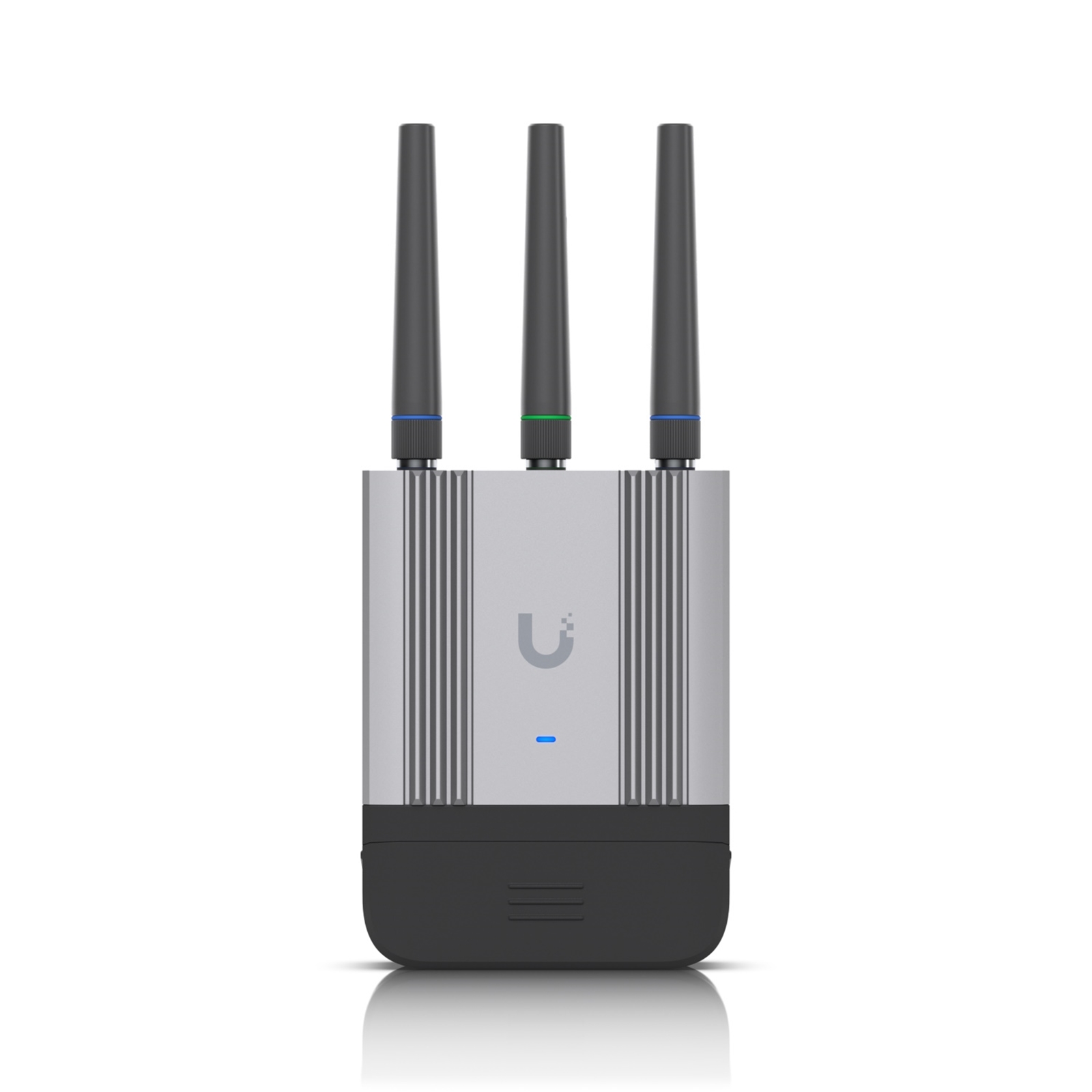

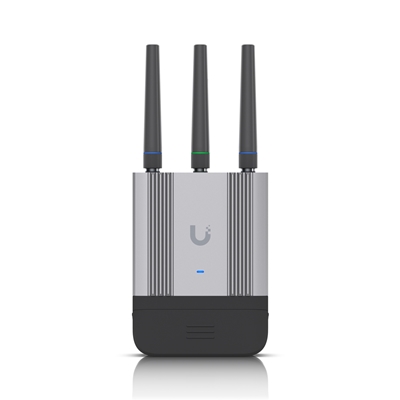

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

Dimensions
Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3")
With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")

Weight
Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate

Pole Mount Diameter
1–2" on pipe outer diameter

Wind Loading
38.8 N at 200 km/h (8.7 lbf at 125 mph)

Weatherproofing
Device with outdoor cover: IP66

Management Interface
Ethernet
WiFi

Networking Interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4

PoE Interface
(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.

Power Supply
UniFi PoE switch (48—54V DC)
USB Type-C (5V DC)
4-pin ATX DC power socket (9—30V DC)

Max. Power Consumption
12.5W

SIM
nano-SIM (4FF)

LTE Bands
B1, B3, B7, B8, B20, B28

3G Bands
B1, B8

LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps

WiFi Standards
802.11 b/g/n, WiFi 2.4G, 20/40 MHz

Max. WiFi TX Power
22 dBm

WiFi MiMo
2x2

GPS
Yes

Antenna SMA Ports
(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector, supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors

External Antennas
(2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors

LED
Status: blue/white

Button
Factory reset

Mounting
DIN rail/wall/pole mount (Included)

Supported WiFi Data Rates
802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
