5 GHz airMAX® ac CPE

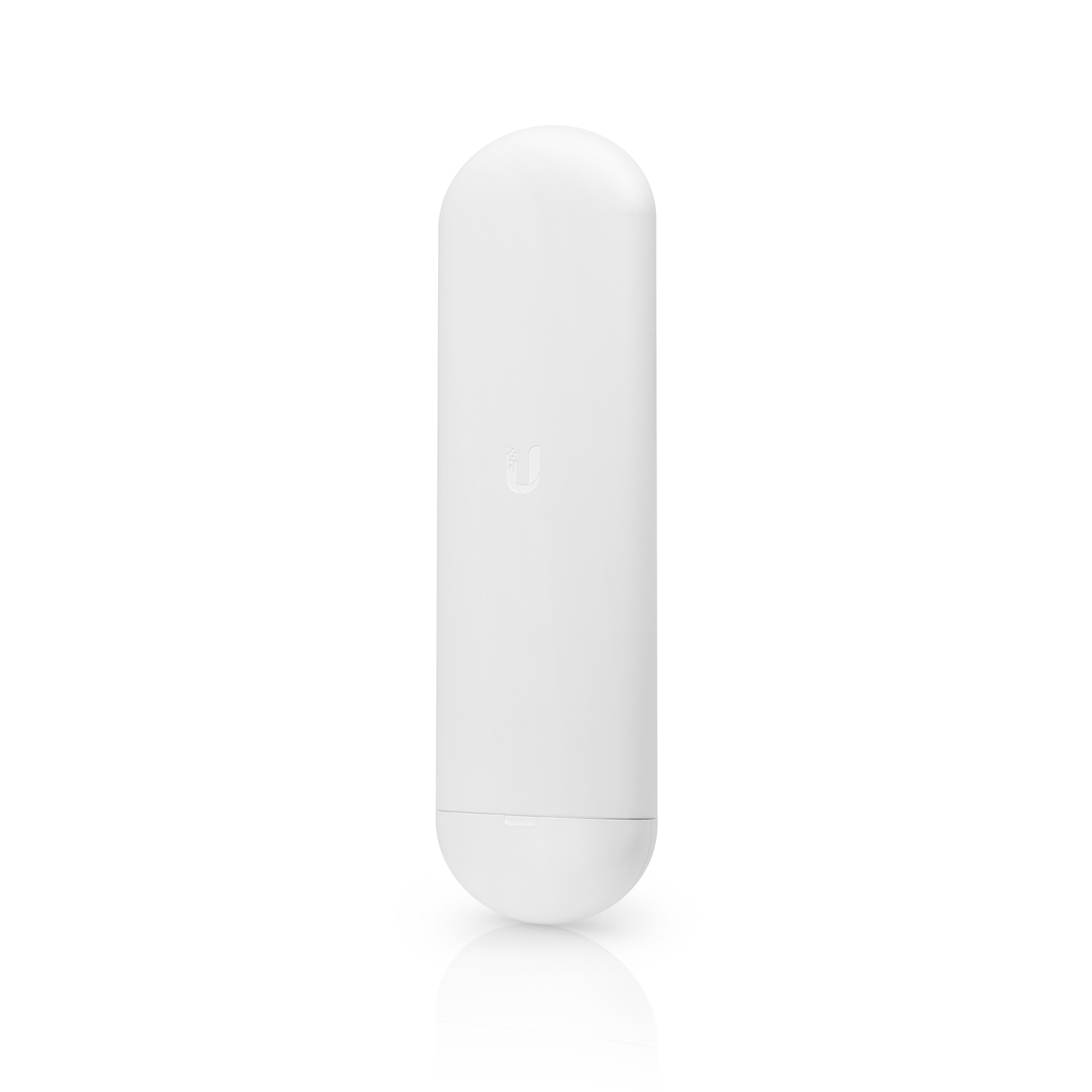

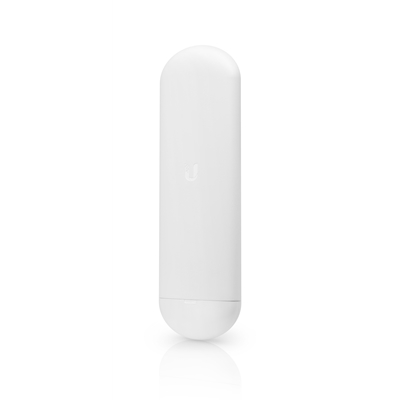

The indoor/outdoor NanoStation® AC is a compact, high-performance CPE featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Model: NS-5AC
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 15+ KM
Management Radio: Yes
PoE PSU Included: Yes
802.3af Support: Yes
Secondary Ethernet Port with PoE Out: Yes

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna gain level (max)	16 dBi
CERTIFICATION
Certification	CE, FCC, IC
DESIGN
Internal	No
Certification	CE, FCC, IC
LED indicators	Network, Power, Signal strength
Product colour	White
Placement	Ceiling
ENERGY MANAGEMENT
Power over Ethernet (PoE)	Yes
Input current	0.5 A
AC input voltage	24 V
FEATURES
Maximum data transfer rate	1000 Mbit/s
Channel bandwidth	80 MHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum outdoor range	15000 m
5 GHz	Yes
Throughput data rate	450 Mbit/s
LOGISTICS DATA
Harmonized System (HS) code	85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
PACKAGING CONTENT
PoE adapter included	Yes
PACKAGING DATA
PoE adapter included	Yes
PERFORMANCE
Internal memory	64 MB
Operating system installed	AirOS
Built-in processor	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Weight	233 g
Height	41 mm
Width	257 mm
Depth	84 mm
