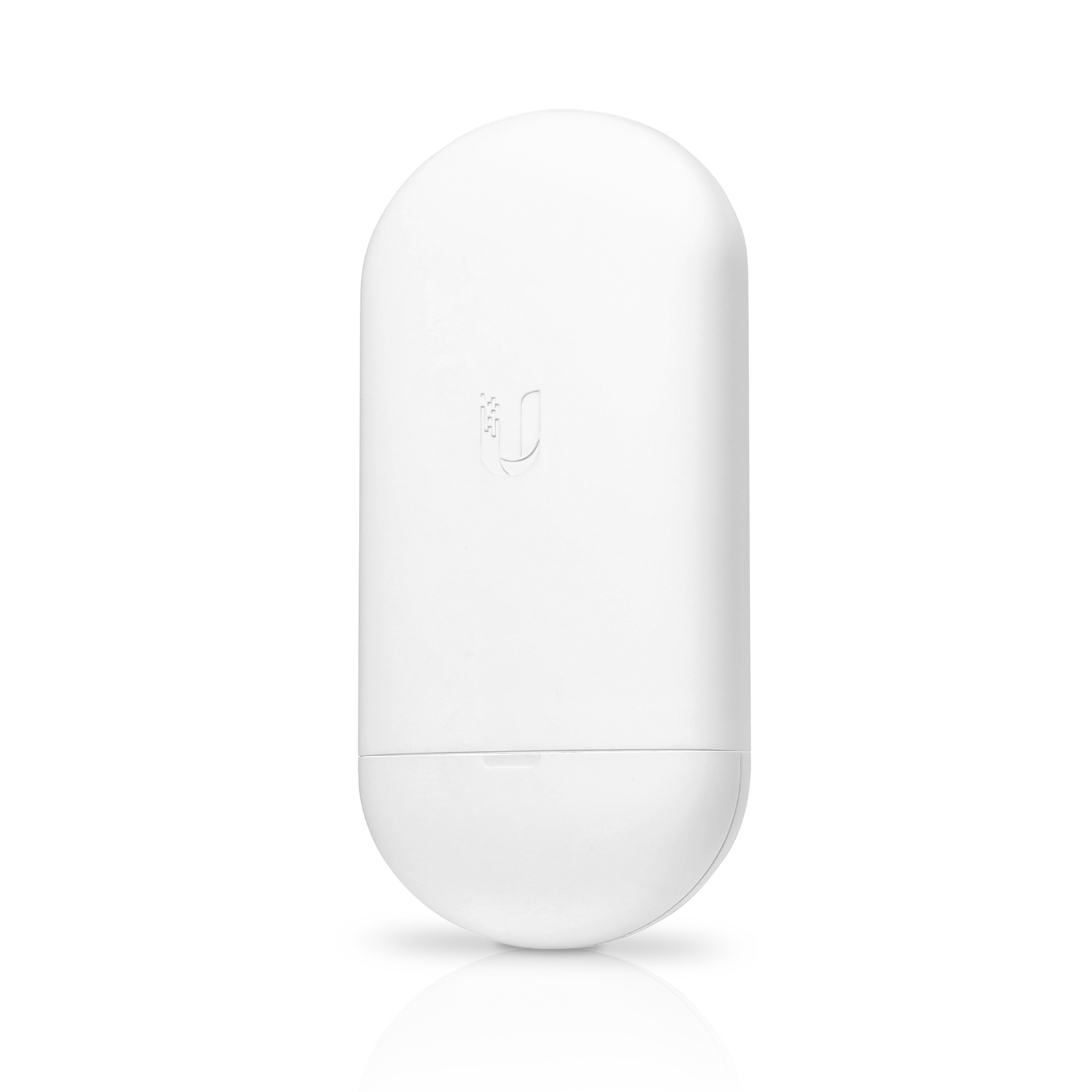

Ubiquiti NS-5ACL NanoStation AC Loco 5GHz 13dBi airMAX Outdoor Wireless AC CPE Bridge

NPUBI-NS-5ACL
Key Specifications
TypeCPE
Speed450+ Mbps
POE Capability24v
Range10+ km
Antenna Gain13 dBi
/productImages/80/NPUBI-NS-5ACL.JPG
/productImages/80/127018.JPG
/productImages/80/127019.JPG
/productImages/80/129322.JPG
/productImages/80/129323.JPG
/productImages/80/129324.JPG
/productImages/80/129325.JPG
/productImages/80/129326.JPG
Manufacturer : UBIQUITI
EAN : 817882027250
Manufacturer Part Code : Loco5AC
Weight : 0.39 kg
Login For Pricing

Key Specifications
TypeCPE
Speed450+ Mbps
POE Capability24v
Range10+ km
Antenna Gain13 dBi
Manufacturer :
UBIQUITI

EAN :
817882027250

Manufacturer Part Code :
Loco5AC

Weight :
0.39 kg
Recommended Products

5 GHz airMAX ac CPE

The indoor/outdoor NanoStation AC loco is a compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS
airOS provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Model: Loco5AC
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 15+ KM
Management Radio: Yes
PoE PSU Included: No
802.3af Support: No
Secondary Ethernet Port with PoE Out: No
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
CERTIFICATION
Certification CE, FCC, IC
DESIGN
Certification CE, FCC, IC
LED indicators Network, Power, Signal strength
Product colour White
Placement Ceiling
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
Input current 0.5 A
AC input voltage 24 V
FEATURES
Maximum data transfer rate 1000 Mbit/s
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Frequency band 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum outdoor range 10000 m
5 GHz Yes
Throughput data rate 450 Mbit/s
LOGISTICS DATA
Harmonized System (HS) code 85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 70 °C
PERFORMANCE
Internal memory 64 MB
Operating system installed AirOS
Built-in processor Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
TECHNICAL DETAILS
Harmonized System (HS) code 85176990
WEIGHT & DIMENSIONS
Weight 180 g
Height 59.1 mm
Width 179 mm
Depth 77.5 mm
