High-Performance airMAX Bridge

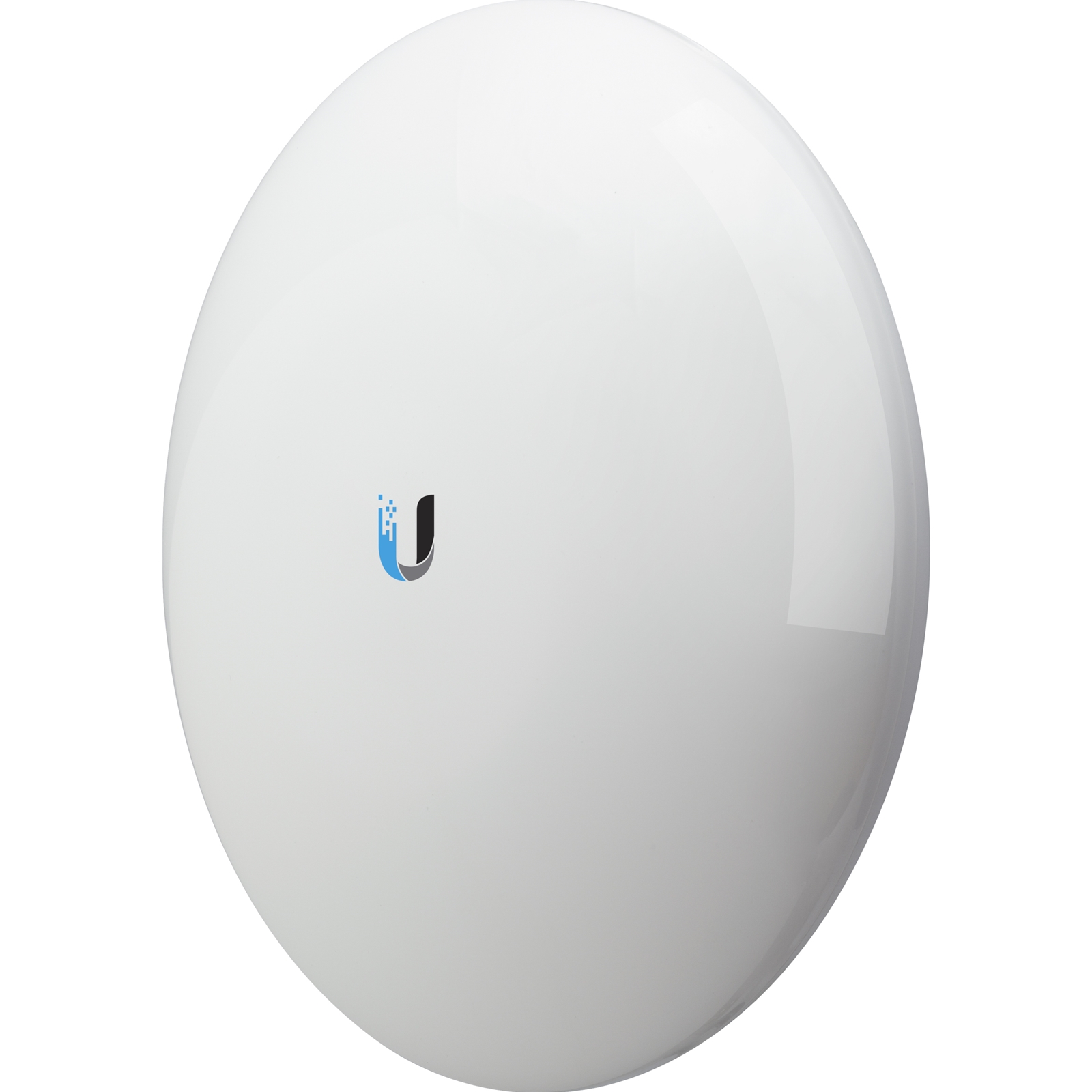

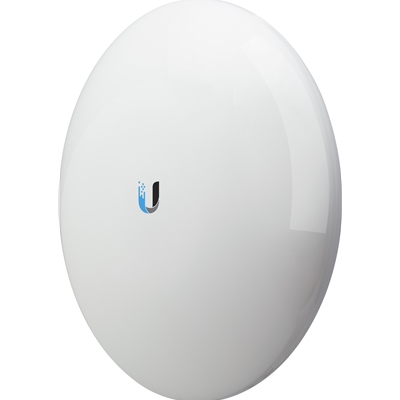

Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti airMAX CPE for customer locations.

Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Incredible Antenna Beam Performance
The form factor of the NanoBeam� features the highest gain for its size. The NanoBeam�s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.

Specifications

Model: NBE-M5-16
Frequency: 5GHz
Throughput: 150+ Mbps
Range: 15+ KM
Improved Wide Bandwidth Antenna: No
Management Radio: No

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ENERGY MANAGEMENT
Power requirements	24V
Power consumption	500 mA
FEATURES
Certification	FCC, IC, CE
Product colour	White
Mounting	Wall
Polarization	Dual polarization
LOGISTICS DATA
Harmonized System (HS) code	85177100
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
PACKAGING CONTENT
Quantity per pack	1 pc(s)
PERFORMANCE
Frequency band	5 GHz
Antenna gain level (max)	16 dBi
TECHNICAL DETAILS
Sustainability certificates	RoHS
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Weight	320 g
Height	54 mm
Width	140 mm
Depth	140 mm
