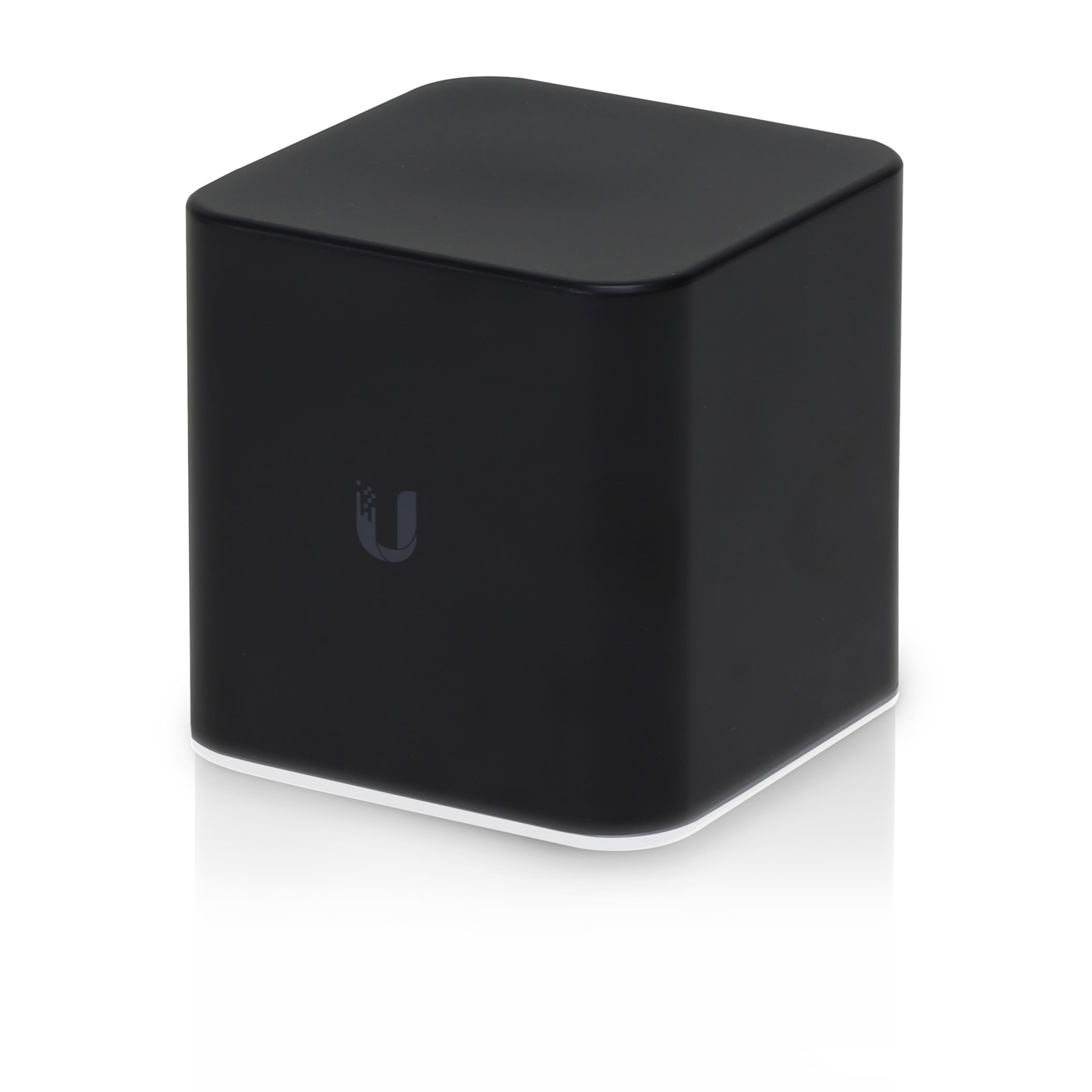

Ubiquiti ACB-AC airCube AC airMAX Home Wi-Fi Access Point with Integrated 24V PoE Passthrough (EU PLUG)

NPUBI-ACBACUK
Key Specifications
TypeRouter
SpeedN/A
POE Capability24v
RangeN/A
Antenna GainN/A
/productImages/80/NPUBI-ACBACUK.JPG
/productImages/80/135021.JPG
/productImages/80/135022.JPG
Manufacturer : UBIQUITI
EAN : 810354026652
Manufacturer Part Code : ACB-AC
Weight : 0.28 kg
Login For Pricing

Key Specifications
TypeRouter
SpeedN/A
POE Capability24v
RangeN/A
Antenna GainN/A
Manufacturer :
UBIQUITI

EAN :
810354026652

Manufacturer Part Code :
ACB-AC

Weight :
0.28 kg
Recommended Products

Please note this product is only supplied with an EU Plug - there is no UK version available

airMAX Home Wi-Fi Access Point
With a compact design and integrated 24V PoE passthrough, the airCube is a home Wi-Fi access point designed to interoperate with airMAX CPEs.

UNMS Support
Ubiquiti Network Management Software simplifies remote network management.

Super Antenna
Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

24V PoE Passthrough
The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

UNMS Mobile Support
Use the intuitive UNMS Mobile app for iOS and Android to install and configure airCube.

Sleek Design
The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.

Specifications

24V PoE Passthrough
Yes

Power Supply
24V PoE

Wi-Fi Standards
802.11ac 2x2

Ethernet Ports
4x Gigabit

Frequency
2.4GHz/5GHz

UMobile and UNMS Support
Yes
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Certification CE, FCC, IC
DESIGN
Internal No
Certification CE, FCC, IC
Product colour Black
Housing material Plastic
Placement Floor, Table
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
Input current 0.83 A
AC input voltage 24 V
Power consumption (max) 8.5 W
FEATURES
Maximum data transfer rate 867 Mbit/s
Networking standards IEEE 802.11ac
Ethernet LAN data rates 10,100,1000 Mbit/s
2.4 GHz Yes
5 GHz Yes
LOGISTICS DATA
Harmonized System (HS) code 85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -10 - 50 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 4
TECHNICAL DETAILS
Harmonized System (HS) code 85176990
WEIGHT & DIMENSIONS
Weight 280 g
Height 89.5 mm
Width 87.8 mm
Depth 89.2 mm
