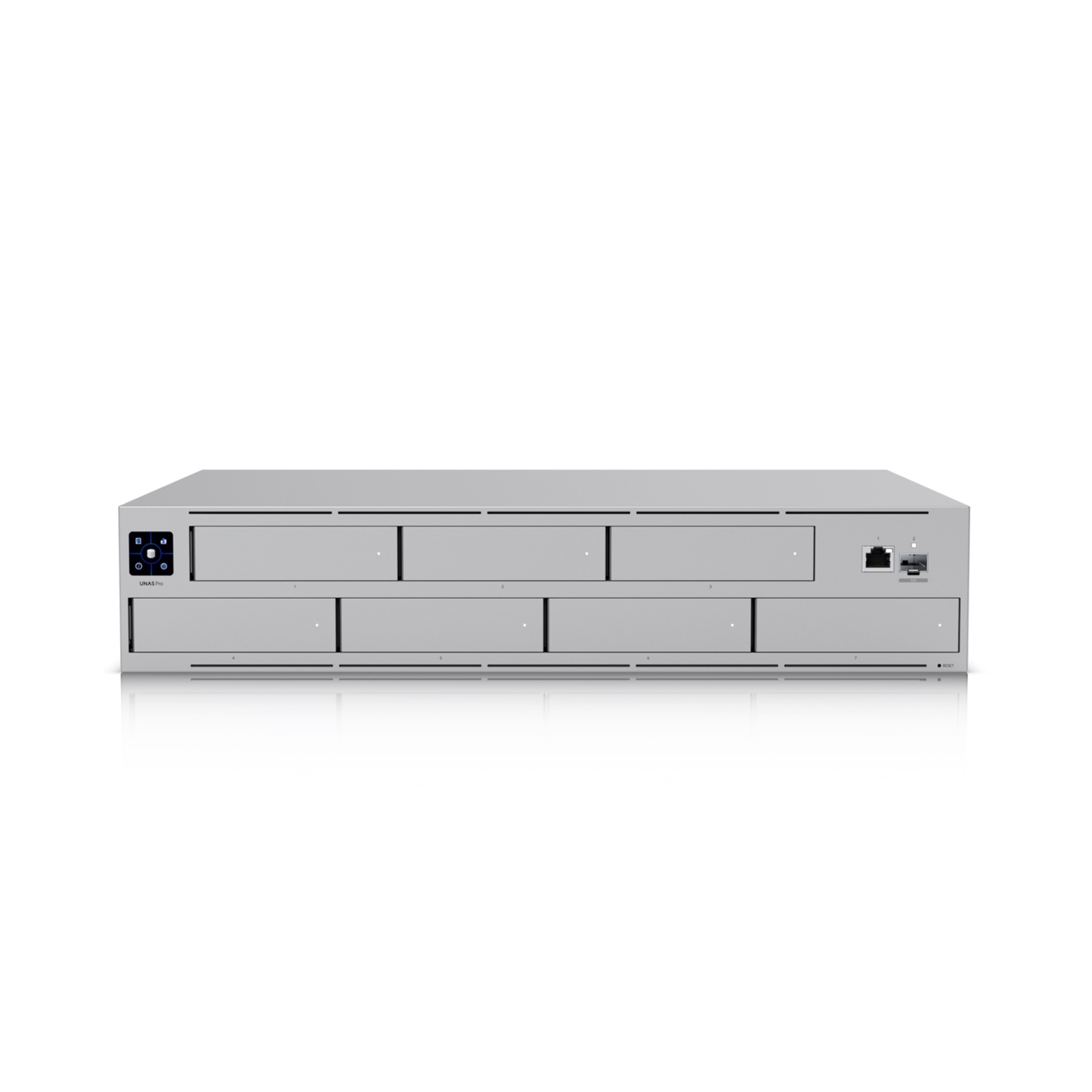

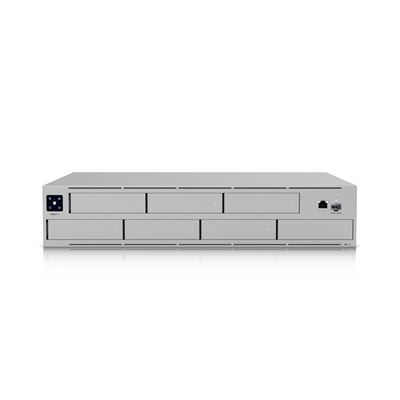

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

(7) 2.5/3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
UniFi Power Backup ready
1.3" touchscreen for management

Dimensions
442 x 325 x 87 mm (17.4 x 12.8 x 3.4")

Weight
Without mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)

Enclosure
SGCC steel

Mounting
SGCC steel

Processor
Quad-Core ARM Cortex-A57 at 1.7 GHz

System Memory
8GB

Management Interface
Ethernet In-Band

Networking Interface
(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port

RF Interface
Bluetooth 4.1

Power Method
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A

Power Supply
AC/DC, internal, 200W

Supported Voltage Range
100—240V AC

Max. Power Consumption
160W

Max. Power Budget for Drives
135W

ESD/EMP Protection
Air: ± 12kV, contact: ± 8kV

LCM Display
(1) 1.3" touchscreen

Certifications
FCC, CE, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

DESIGN
Chassis type	Rack (2U)
LED indicators	Status
Product colour	Grey
Number of fans	2 fan(s)
Housing material	Steel
Cooling type	Active
Built-in display	Yes
Display type	LCM
ENERGY MANAGEMENT
Redundant power supply (RPS) support	Yes
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	160 W
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
MEMORY
Internal memory	8 GB
NETWORKING
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-5 - 40 °C
OTHER FEATURES
Power consumption (standby)	LCM
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
PACKAGING CONTENT
Cables included	Power
Rack mount kit	Yes
PERFORMANCE
Type	NAS
Reset button	Yes
Backup function	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
USB port	No
PROCESSOR
Processor model	Cortex-A57
Processor manufacturer	ARM
Processor family	Cortex-A
Processor cores	4
Processor architecture	ARM Cortex-A57
Processor frequency	1.7 GHz
STORAGE
RAID support	Yes
Number of storage drives supported	7
Storage drive sizes supported	2.5,3.5"
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
TECHNICAL DETAILS
Power consumption (standby)	LCM
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight	9.2 kg
Height	87 mm
Width	442 mm
Depth	325 mm
