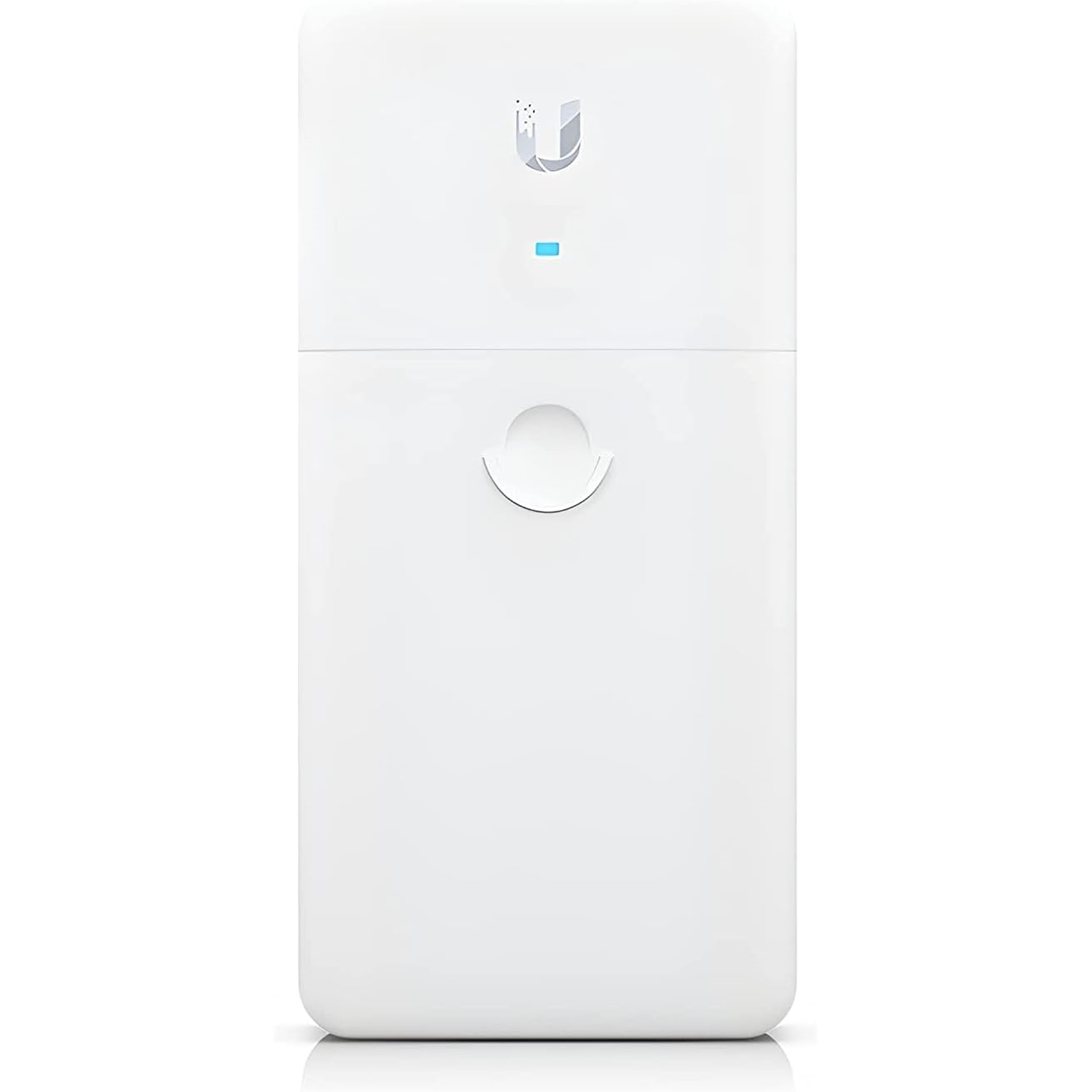

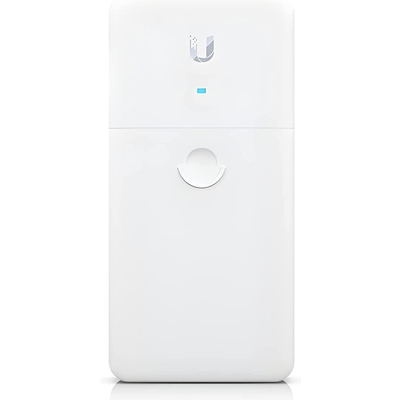

The Ubiquiti UACC-LRE 1-Port Long-Range PoE+ Extender is gigabit adapter that allows you to easily and inexpensively expand your ethernet network's range. With its two (2) GbE RJ45 ports, the UACC LRE can receive 802.3at PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40°C to 80°C) to protect your deployment from weather and electrical damage.
Specifications
Mechanical
Dimensions
196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5 inch)
Weight
350 g (12.3 oz)
Enclosure material
UV stabilised polycarbonate
Mounting material
Stainless steel
Weatherproofing
IPX5
Hardware
Networking interfaces
GbE RJ45 ports
Power method
802.3at PoE+ 2-pairs (pins 1, 2+; 3, 6-)
Max power consumption (excluding PoE out)
1.5W
Voltage range
37 to 57VDC
PoE interfaces
Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
ESD/EMP protection
Air/contact: ± 30kV
DC sparkover voltage
90V at 100V/s
Max. impulse sparkover voltage
700V at 1kV/µs
Discharge current
10kA+
Modes
Long-range indoor
Outdoor ethernet repeater
Operating temperature
-40° to 80°C (-40°F to 176°F)
Operating humidity
10 - 95% non-condensing
Certifications
CE, FCC, IC
LEDs
System
Blue: power ON
Ethernet
Green: 1 Gbps, Amber: 10/100 Mbps
PoE
Amber: passthrough PoE out
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
