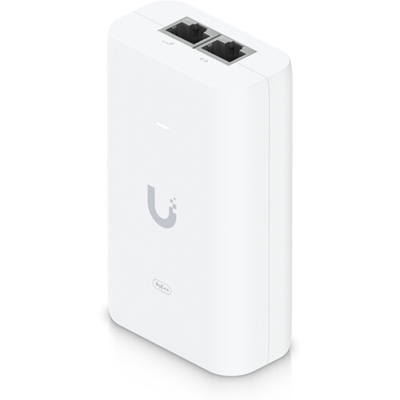

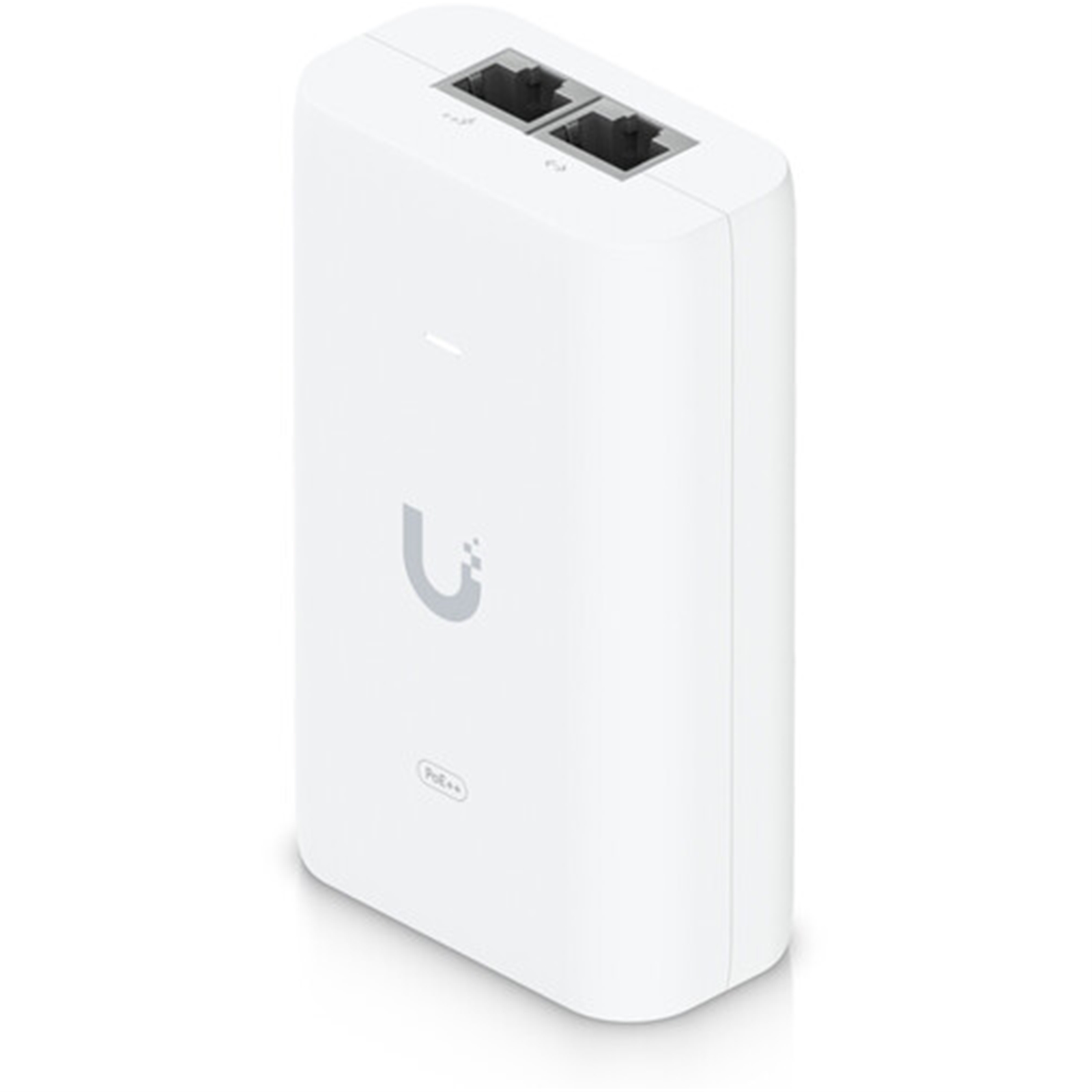

The Ubiquiti UniFi U-PoE++ Adapter is a versatile and robust device designed to power UniFi PoE++ devices, particularly suitable for wireless mesh applications or to offload power dependencies from PoE switches. This adapter can deliver up to 60W of PoE++, providing ample power for devices like the UA Hub, G4 PTZ, and other PoE++ compatible equipment.
The U-PoE++ is compact and easy to integrate into various setups. It outputs 48V DC @ 1.25A and is equipped with a Gigabit LAN port for high-speed data transmission. The adapter is built with surge, peak pulse, and overcurrent protection mechanisms to ensure the safety and durability of connected devices. It also features an LED indicator for convenient status monitoring.
UniFi U-PoE++ Adapter includes an RJ45 data input and an AC cable with earth ground, along with a PoE++ output. The U-PoE++ operates on a universal AC input of 100–240V AC at 50/60Hz, with an efficiency of over 85%.
U-PoE++ is certified, including CE, FCC, IC, UL, and RoHS, this adapter ensures compliance with various international standards????.
Specifications
Model
U-PoE++
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output voltage
48V DC @ 1.25A
LAN activity indicator
No
Gigabit LAN port
Yes
Remote reset capability
No
Reset button
No
Rated voltage
100—240V AC @ 50/60Hz
Input current
1.3A @ 120V AC
0.75A @ 230V AC
Inrush current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency
85+%
Output ripple
1% max.
Switching frequency
65 kHz
Line regulation
= 1%
Load regulation
= 3%
2-pair powering
No
4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connector
IEC-320 C6
Data In / PoE
RJ45 shielded socket
Surge protection
Difference and common mode
Clamping protection
11V data, 60V power
Max. surge discharge
1500A (8/20 µs) power
Peak pulse current
36A (10/1000 µs) data
Shunt capacitance
<5 pF data
Response time
<1 ns
Power method
Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A)
Power supply
AC/DC
Supported voltage range
100—240V AC
Max. PoE+ wattage per port by PSE
60W
Operating temperature
0 to 40° C (32 to 104° F)
Storage temperature
-30 to 70°C (-22 to 158° F)
Operating humidity
10 to 95% noncondensing
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
ENERGY MANAGEMENT
|
| Input voltage |
100-240 V |
| Input frequency |
50/60 Hz |
| Input current |
1.25 A |
| Output current |
0.65 A |
| Power over Ethernet (PoE) voltage |
48 V |
| Output power |
60 W |
| DC output voltage |
48 V |
FEATURES
|
| Certification |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| Product colour |
White |
NETWORKING
|
| Networking standards |
IEEE 802.3at |
| Power over Ethernet (PoE) |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
OPERATIONAL CONDITIONS
|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
32 - 104 °F |
PACKAGING CONTENT
|
| Power cord included |
Yes |
| Number of products included |
1 pc(s) |
TECHNICAL DETAILS
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), KC, RoHS, UKCA |
WEIGHT & DIMENSIONS
|
| Weight |
210 g |
| Height |
106 mm |
| Width |
63 mm |
| Depth |
34 mm |
