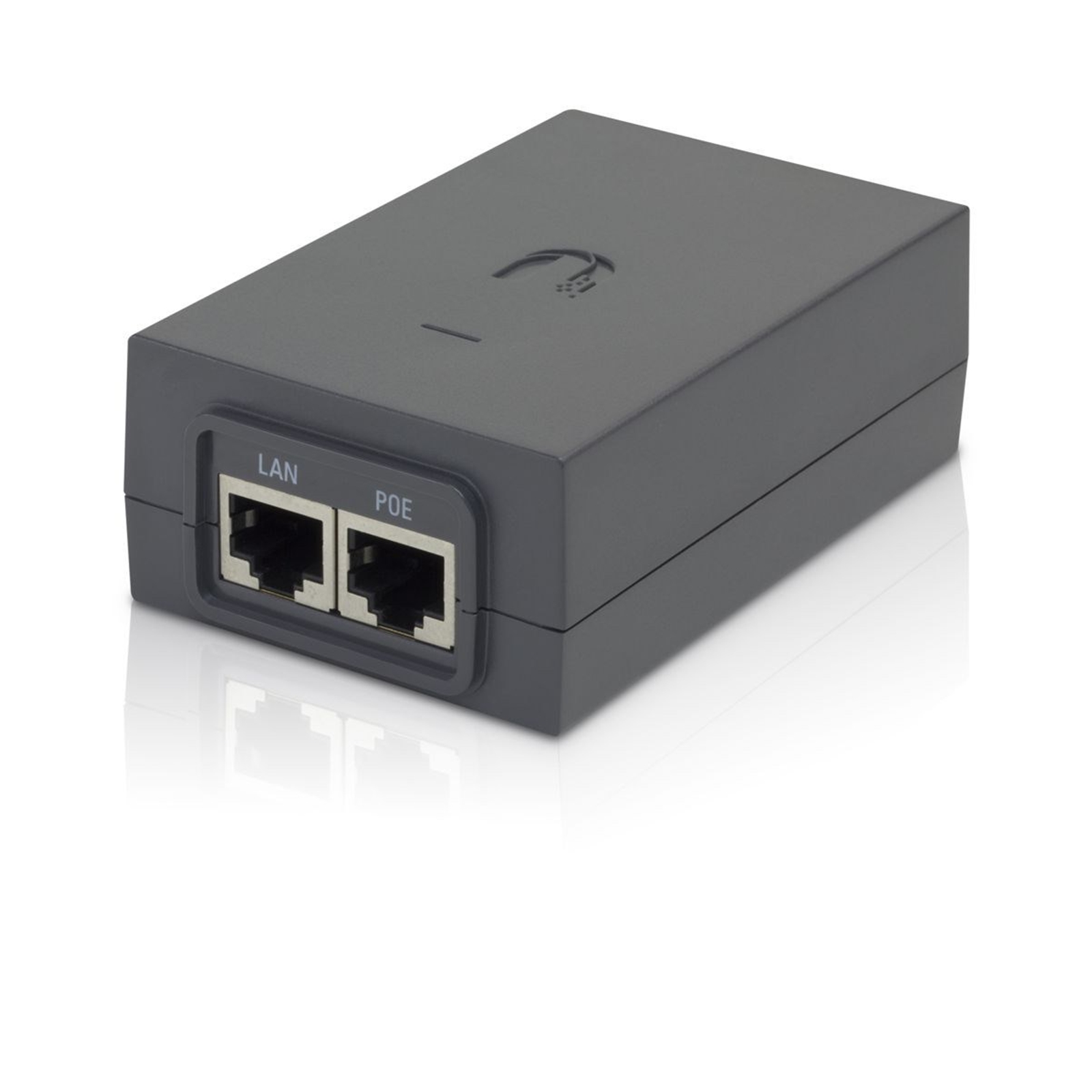

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
- airFiber
- airMAX
- EdgeMAX
- mFi
- UniFi AP
- UniFi Video / airVision
*Check product specifications to verify PoE compatibility.
Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network.
The airGateway is available in three models:
- airGateway Standard model with an internal antenna
- airGateway Pro Dual-Band Wi-Fi model with an internal antenna
- airGateway-LR Long-range Wi-Fi model with an external antenna for extended range
Dimensions ( W x H x D )
96 x 62 x 35 mm
Output Voltage
48VDC @ 0.5A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
No
Reset Button
No
Input Voltage
90-260VAC @ 47-63 Hz
Input Current
0.6A @ 120VAC,
0.4A @ 240VAC
Inrush Current
<65A Peak @ 120VAC,
<130A Peak @ 230VAC
Efficiency
80+%
Output Ripple
1% Max.
Switching Frequency
65 kHz
Line Regulation
± 1%
Load Regulation
± 3%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40° C (32 to 104° F)
Storage Temperature
-30 to 70°C (-22 to 158° F)
Operating Humidity
35 to 95% Noncondensing
AC Connector
IEC-320 C6
Data IN / POE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 ìs) Power
Peak Pulse Current
36A (10/1000 ìs) Data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Compliance
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
ENERGY MANAGEMENT
|
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Input current |
0.4 - 0.6 A |
| Output current |
0.5 A |
| Power over Ethernet (PoE) voltage |
48 V |
FEATURES
|
| Certification |
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B |
| LED indicators |
No |
| Product colour |
Black |
| Surge protection |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85044095 |
NETWORKING
|
| Power over Ethernet (PoE) |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
35 - 95% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
85044095 |
WEIGHT & DIMENSIONS
|
| Weight |
158.5 g |
| Height |
33 mm |
| Width |
59.9 mm |
| Depth |
91.8 mm |
