Target Components Ltd

Power over Ethernet Adapters

PoE Adapters power Ubiquiti� products that support passive PoE.

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway� Compatibility
The 24V, 0.5A model works with the airGateway� to bridge airMAX� connections to Wi-Fi at customer locations.

Specifications

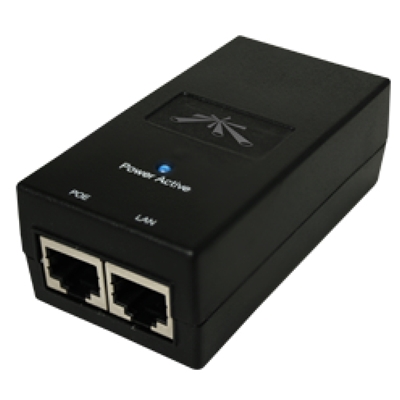

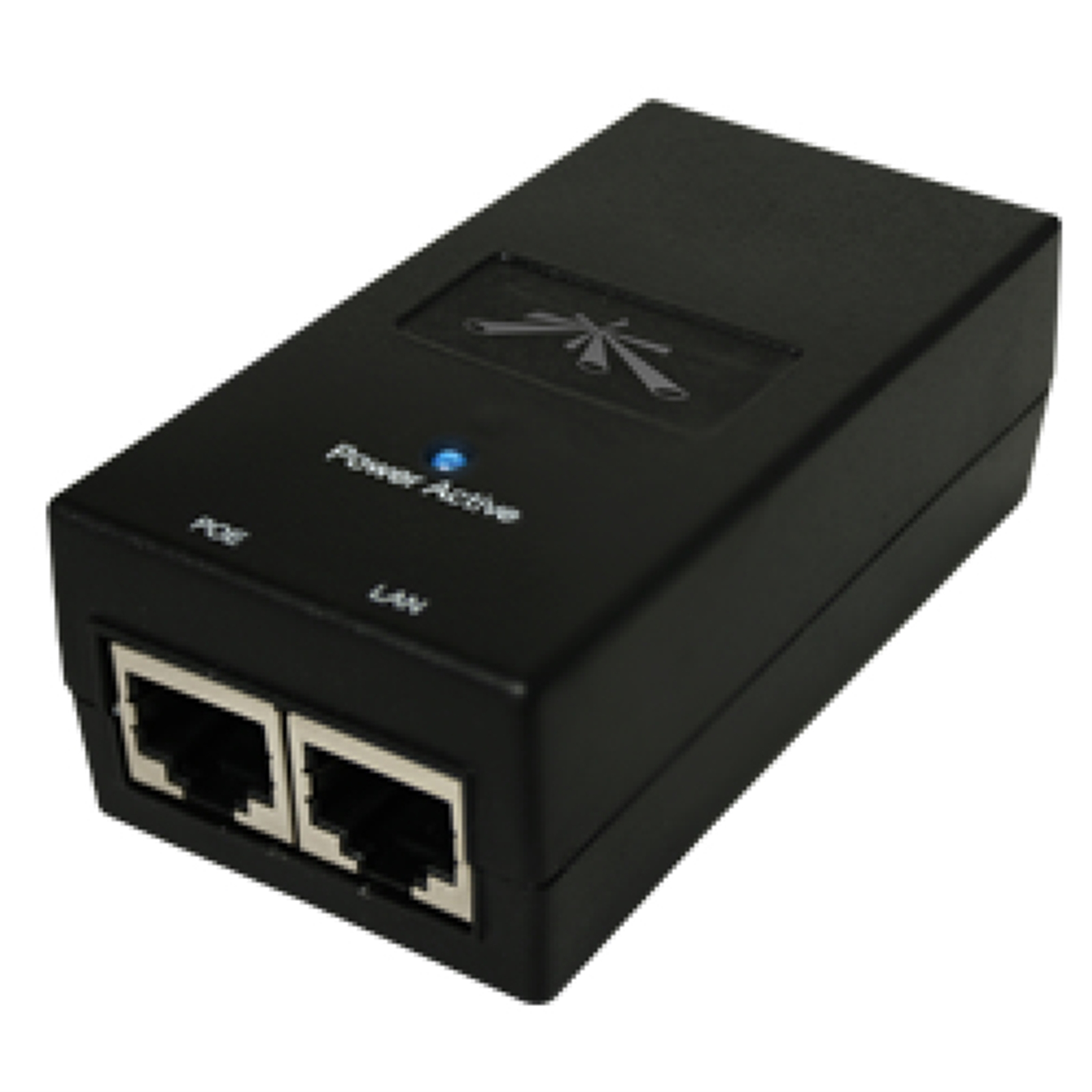

Model: POE-24-12W-G
Output Voltage: 24VDC @ 0.5A
Gigabit LAN Port: Yes

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ENERGY MANAGEMENT
Input voltage	90 - 260 V
Input frequency	47 - 63 Hz
Power over Ethernet (PoE) voltage	24 V
FEATURES
Certification	IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
LOGISTICS DATA
Harmonized System (HS) code	85044095
NETWORKING
Power over Ethernet (PoE)	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	35 - 95%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
TECHNICAL DETAILS
Harmonized System (HS) code	85044095
WEIGHT & DIMENSIONS
Dimensions (WxDxH)	84 x 87 x 29.2 mm
Weight	99.4 g
