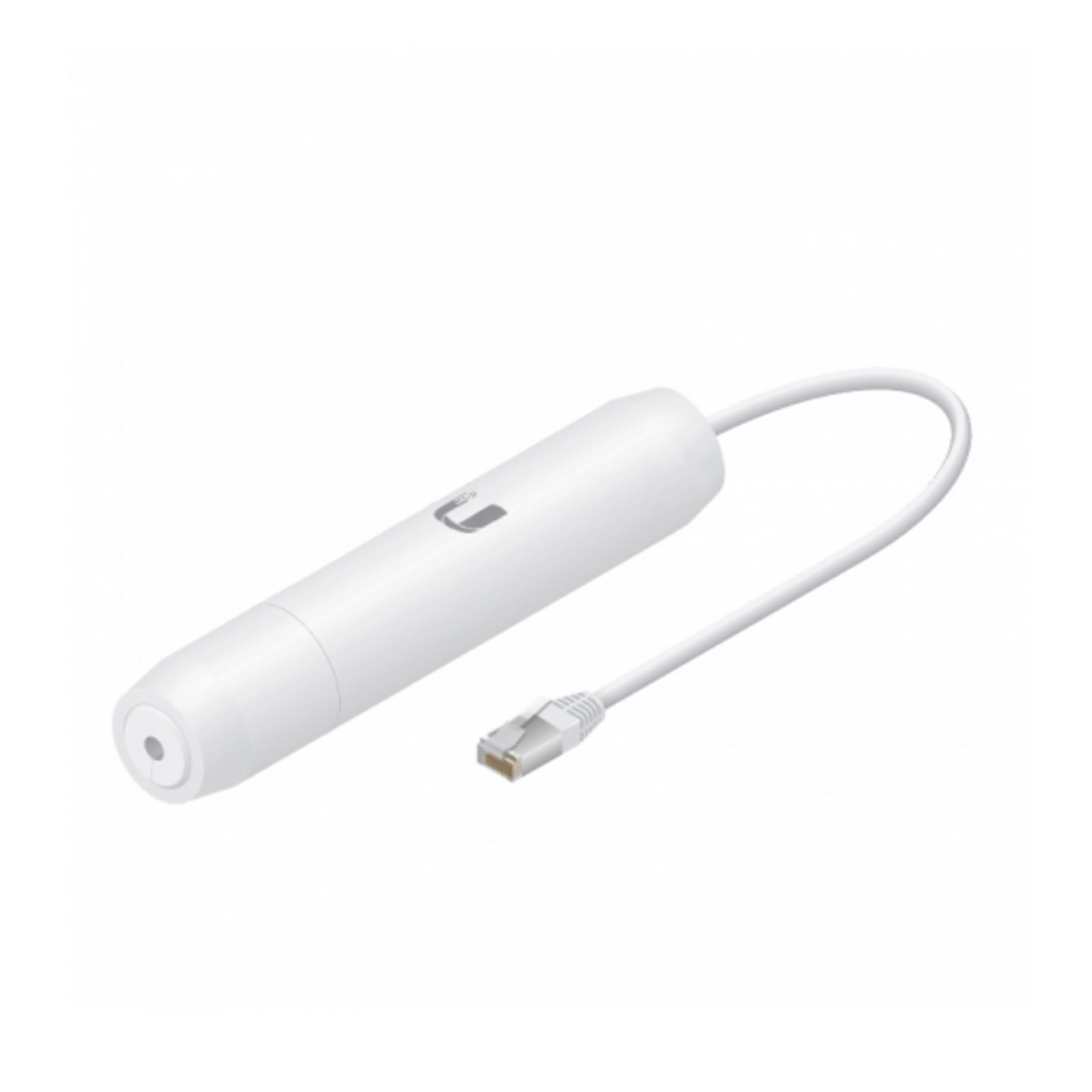

Instant 802.3af Converters transform passive PoE devices into 802.3af-compliant products.

Ubiquiti Compatibility
The Instant 802.3af Gigabit PoE Converter is compatible with most Ubiquiti PoE devices* using 100 Mbps or Gigabit Ethernet ports. Compatible products include airMAX® and UniFi® devices.

Longer Cable Runs
High voltage carries power more efficiently. The Instant 802.3af Gigabit PoE Converter enables longer cable runs due to a more efficient power delivery.

ESD/Surge Protection
Instant 802.3af Converters provide an additional ±15kV of Ethernet isolation to lessen the risk of ESD or surge damage to connected devices.

PoE Switch Compatibility
The Instant 802.3af Gigabit PoE Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.

Specifications

Model: INS-8023AF-I
Output Ethernet Cable: No
Gigabit Support: No

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ENERGY MANAGEMENT
Input voltage	48 V
Input current	0.5 A
Output current	0.5 A
Power over Ethernet (PoE) voltage	48 V
Surge protection voltage	15 kV
FEATURES
Product colour	White
Surge protection	Y
LOGISTICS DATA
Harmonized System (HS) code	85044095
NETWORKING
Networking standards	IEEE 802.3af
Power over Ethernet (PoE)	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 70 °C
PACKAGING CONTENT
Number of products included	1 pc(s)
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
TECHNICAL DETAILS
Harmonized System (HS) code	85044095
WEIGHT & DIMENSIONS
Weight	50 g
Height	30.3 mm
Width	30.3 mm
Depth	95.5 mm
