What This Product Does

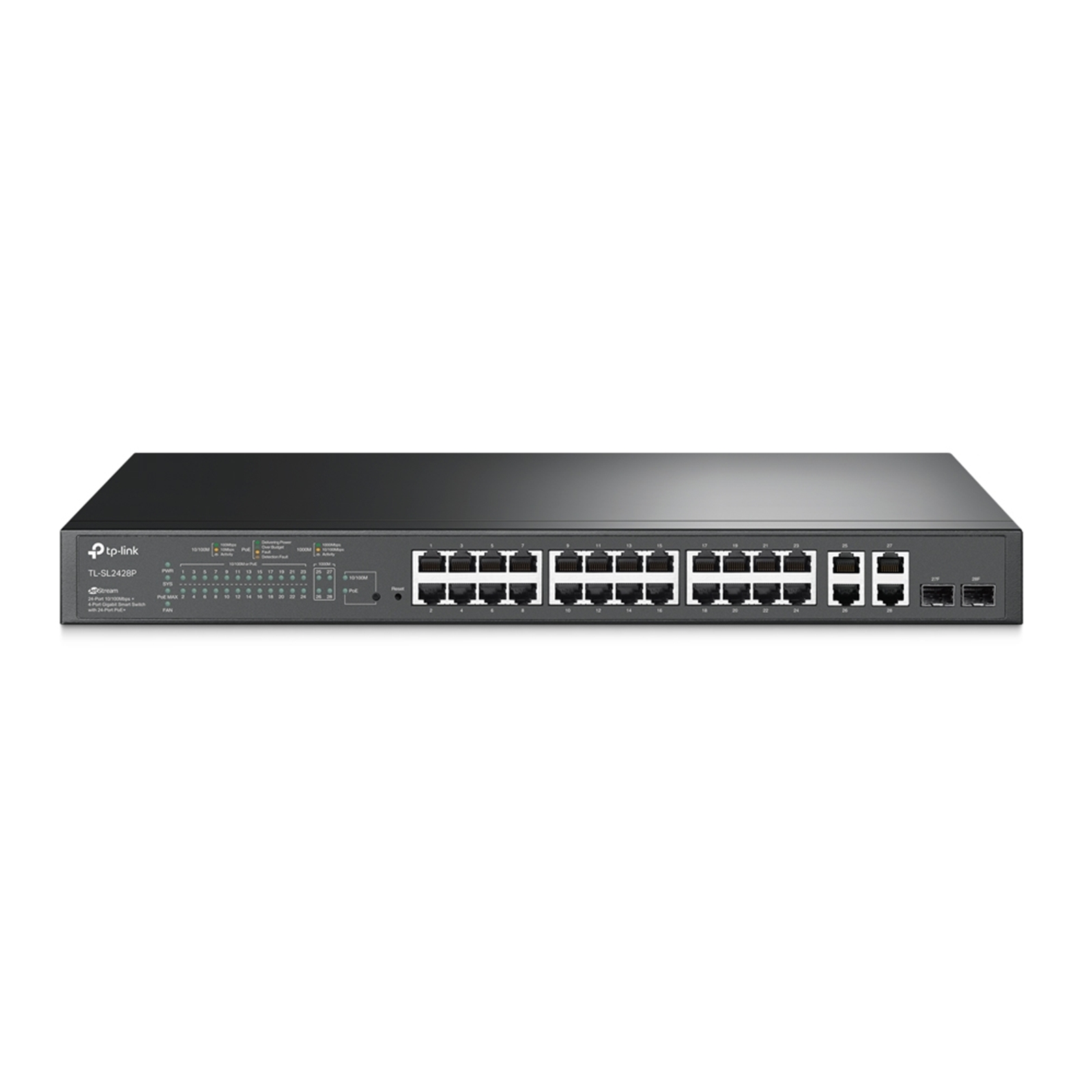

The T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.

IEEE 802.3at/af-compliant Power over Ethernet

The T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It's an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 features

For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Interface
24 x 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 x Combo Gigabit Uplink RJ45/SFP Ports

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
1000BASE-X: MMF, SMF

Fan Quantity
2

Physical Security Lock
Yes

PoE Budget
250 W

Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
V4.2: 286.7 W (220 V / 50 Hz with 250 W PD connected); 18.8 W (220 V / 50 Hz with no PD connected)
V5: 293.6 W (110 V / 60 Hz) (with 250 W PD connected)
V6: 291.6 W (110 V / 60 Hz) (with 250 W PD connected)

Max Heat Dissipation
V4.2: 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected); 64.1 BTU/h (with no PD connected)
V5: 1001.2 BTU/hr (110 V/60 Hz) (with 250 W PD connected)
V6: 995.09 BTU/hr (110V/60Hz) (with 250 W PD connected)

PERFORMANCE

Switching Capacity
12.8 Gbps

Packet Forwarding Rate
9.5 Mpps

MAC Address Table
8K

Jumbo Frame
9216 Bytes

SOFTWARE FEATURES

Quality of Service
802.1p CoS/ DSCP priority
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow based Rating Limit
Smoother Performance
Actions for flows
Mirror(to supported interface)
Redirect(to supported interface)
Rate Limit
QoS Remark
Storm Control
Multiple Control Modes(kbps/ratio/pps)
Broadcast/Multicast/Unknown-Unicast Control

L2 Features
Link Aggregation
Static link aggregation
Up to 8 aggregation groups and up to 8 ports per group
802.3ad LACP
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
CPU Mirroring

L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile

IPv6 Support
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery(MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

VLAN
VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control List
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security
IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
128 static entries
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP interface relay
DHCP VLAN relay
DHCP L2 Relay

Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs

MANAGEMENT

Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

OTHERS

Certification
CE, FCC, RoHS

Package Contents
TL-SL2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0?~50? (32?~122?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
