Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
Works with Any Router or Wireless Access Point
Extend WiFi to Where You Need It Most

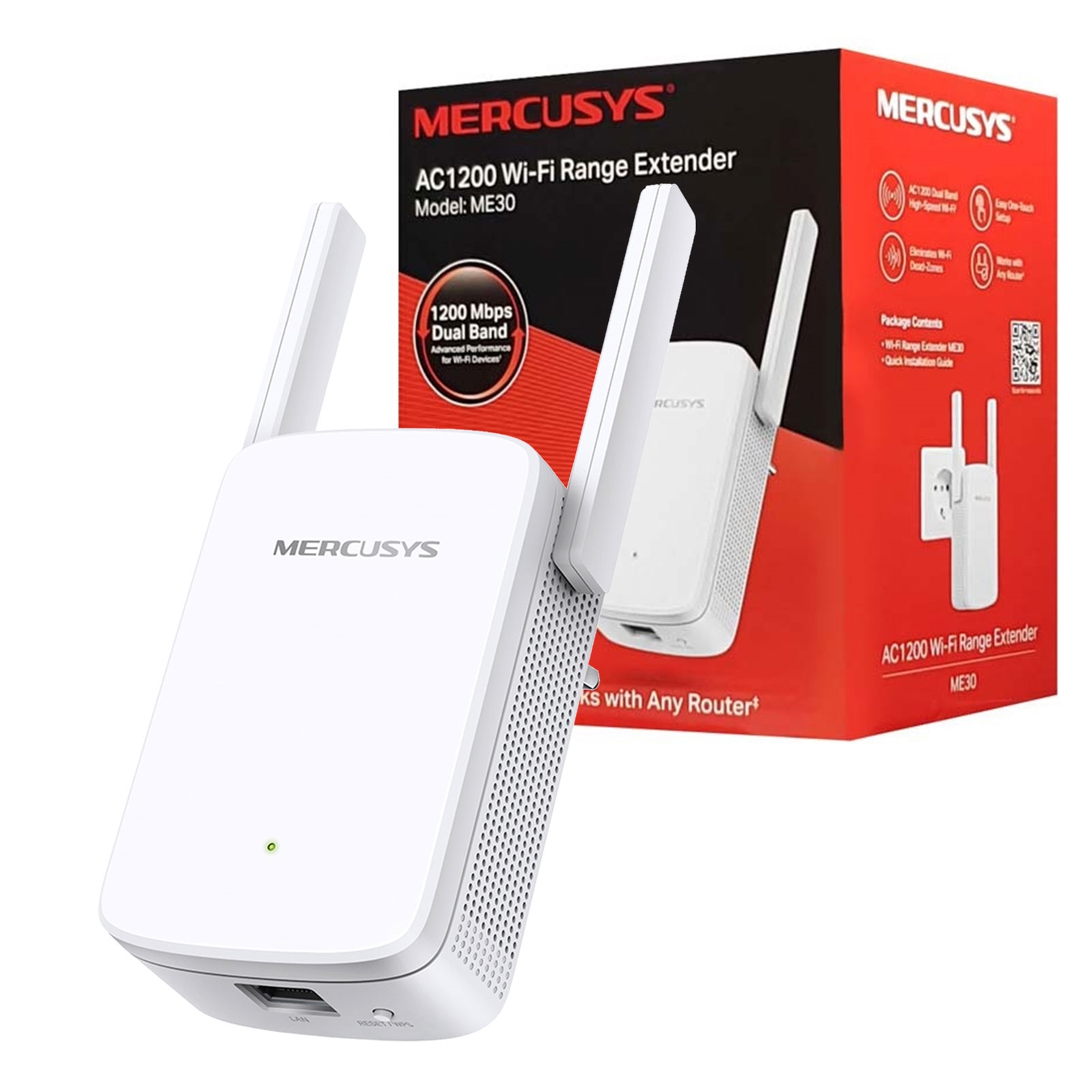

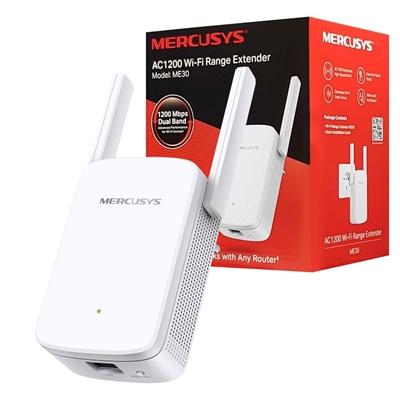

The ME30 wall-mounted range extender with adjustable high-gain antennas easily expands your Wi-Fi router's coverage, letting you finally eliminate Wi-Fi dead zones from your home. Enjoy the high speed expansion WiFi wherever you need.
Streaming at Full Speed All The Time
AC1200 High-Speed Wi-Fi
Enjoy a fast extended Wi-Fi anywhere up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.
Adaptive Path Selection
The ME30 keeps your network running at top-speed by intelligently choosing the best available route and band for your data.
Smart Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension
Easy One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your Wi-Fi coverage in seconds.
Step 1:Press the WPS button on your router and the ME30
Step 2:Relocate the ME30 to the best place with smart signal indicator
Built-In Access Point Mode
ME30 is more than just a WiFi range extender. Connect your wired internet connection to the ME30 via Ethernet cable to turn it into a dual band WiFi access point.
Specifications
Wireless
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 - 2.5 GHz, 5 GHz
Signal Rate
Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Reception Sensitivity
5 GHz:
11ac HT80 MCS9 < -63 dBm
2.4 GHz:
11n HT40 MCS7 < -70 dBm
Transmission Power
< 20 dBm
Wireless Security
WPA-PSK/WPA2-PSK
Hardware
Dimensions (W x D x H)
112 x 84.7 x 39mm
Interfaces
1x 10/100Mbps RJ45 Port
Button
RESET/WPS Button
Antenna Type
2x External Antennas
Power Consumption
9.2 W
Warranty:
3 Year Return To Base Warranty
|
ANTENNA
|
| Antenna type |
External |
| Antennas quantity |
2 |
DESIGN
|
| Certification |
CE, RoHS |
| LED indicators |
Y |
| Product colour |
White |
| Reset button |
Y |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
9.2 W |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
NETWORKING
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms |
WPA-PSK, WPA2-PSK |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi data rate (max) |
867 Mbit/s |
| Wi-Fi |
Y |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
PACKAGING CONTENT
|
| Quick start guide |
Y |
PERFORMANCE
|
| Type |
Network repeater |
| Data transfer rate |
867 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| WPS push button |
Y |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
1 |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
85176990 |
WEIGHT & DIMENSIONS
|
| Height |
39 mm |
| Width |
112 mm |
| Depth |
84.7 mm |
