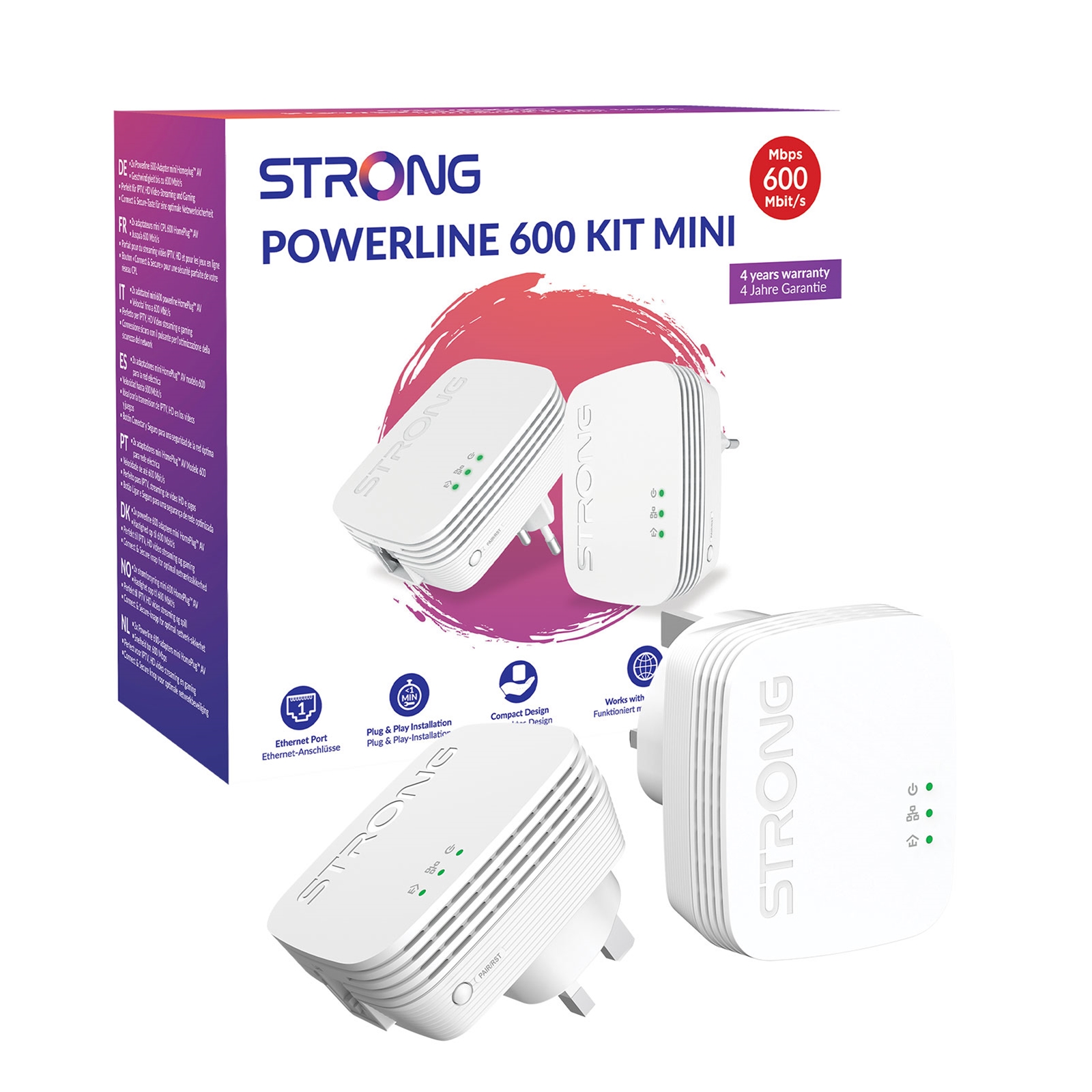

This version mini of Powerline 600 will provide you in an extremely simple way a high-speed home network. The powerlines are using your home's existing electrical wiring at speeds up to 600 Mbit/s. This kit includes 2 adapters. No new wire required! Connect computers, consumer electronics, and network-compatible devices to the Internet in any room and any floor of your home by simply using a power outlet. You just have to connect one Powerline 600 Mini adapter to your internet modem via an Ethernet port and your Internet connection becomes immediately available from any power socket by using the second Powerline 600 Mini adapter in the room of your choice.
Technical specifications
HARDWARE
Standards
HomePlug AV™, IEEE802.3, IEEE802.3u
Ethernet Ports
1x Ethernet port (10/100 Mbits/s)
Buttons
Connect & Secure/Reset
LEDs
Power, Powerline, Ethernet
Security
128 bit AES
Range
Up to 300 meters over electric circuit
Frequency
2 MHz ~ 68 MHz
Size in mm (WxDxH)
63 x 68 x 75 mm
Weight in kg
0.079
OTHERS
Certification
CE
Package contents
2x Powerline 600 Adapters Mini
2x Ethernet Cables
Quick Installation Guide
Warranty Card
System requirements
RJ45 Ethernet connection
Environment
Operating Temperature: 0 °C ~ +40 °C
Storage Temperature: -40 °C ~ +70 °C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
GENERAL DATA
Power Supply
100 ~ 240 V AC, 50/60 Hz
Warranty:
4 Year Return to Base Warranty
There are currently no data sheets available for this product.
