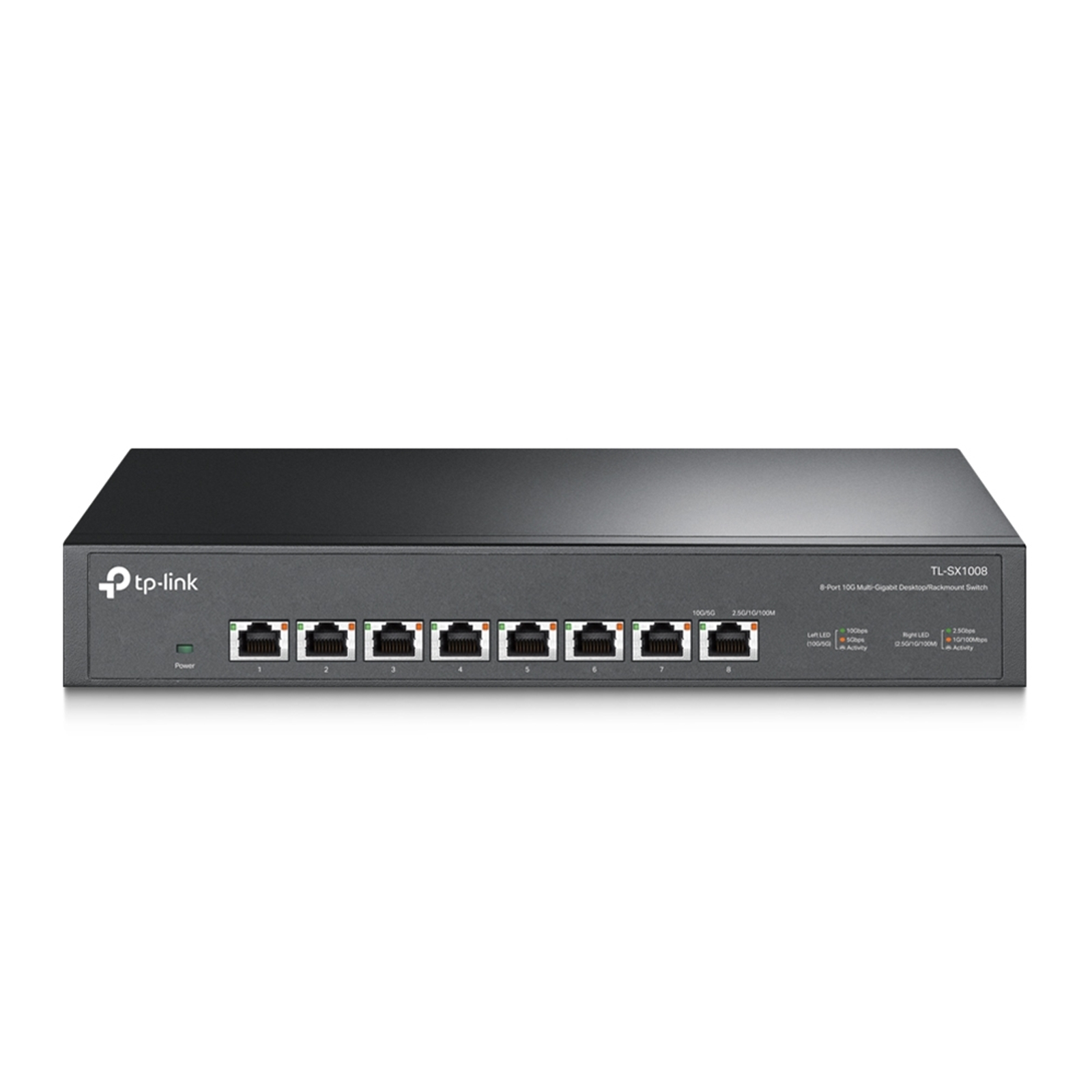

8-Port 10G Desktop/Rackmount Switch
Key Features
Eight 10 Gbps Ports. 8 x 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.
Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ?).
Plug and Play. Allows for easy deployment without the need for a technician.
Futuristic Networking with Lightning-Fast 10G Connections
8-Port 10G Desktop/Rackmount Switch
Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices
As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Unlock the Real WiFi 6?
The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.
Instant Transfer for Workstations?
Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let's begin the unprecedented smooth game!
Robust Design for Any Situation
Durable metal casing and a heat dissipating design guarantee wide operating temperature (0–50 ?), ideal for any work or home environment. Intelligent cooling algorithm seeks maximum performance and less noise.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.
Same Cables, New Speed
Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface
8 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
1 (Intelligent fan speed adjustment)
External Power Supply
100–240 VAC, 50/60 Hz, 0.8A
LED Indicator
System Power: 1
Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Max Power Consumption
31.2 W
PERFORMANCE
Switching Capacity
160 Gbps
Packet Forwarding Rate
119.0 Mpps
MAC Address Table
32 K
Packet Buffer Memory
2 Mb
Jumbo Frame
10 KB
SOFTWARE FEATURES
Advanced Features
802.3X Flow Control
802.1p/DSCP QoS
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC ,RoHS
Package Contents
8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty:
2 Years Return to Base Warranty.
|
DATA TRANSMISSION
|
| MAC address table |
32000 entries |
| Switching capacity |
160 Gbit/s |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
119 Mpps |
| Packet buffer memory |
16 MB |
| Jumbo frames |
10000 |
DESIGN
|
| Certification |
CE, FCC ,RoHS |
| Rack mounting |
Yes |
| Form factor |
1U |
| LED indicators |
Yes |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
ENERGY MANAGEMENT
|
| Power source |
AC |
| Input current |
0.8 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
28.4 W |
| Power supply included |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Switch type |
Unmanaged |
NETWORKING
|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Auto-negotiation |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING DATA
|
| Package weight |
2.07 kg |
| Cables included |
AC |
| Package depth |
400 mm |
| Package height |
80 mm |
| Package width |
250 mm |
| Quick start guide |
Yes |
| Package type |
Box |
| Rack mount kit |
Yes |
PERFORMANCE
|
| Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| 10G Ethernet (copper) ports quantity |
8 |
POWER OVER ETHERNET (POE)
|
| Power over Ethernet (PoE) |
No |
WEIGHT & DIMENSIONS
|
| Height |
44 mm |
| Width |
294 mm |
| Depth |
180 mm |
