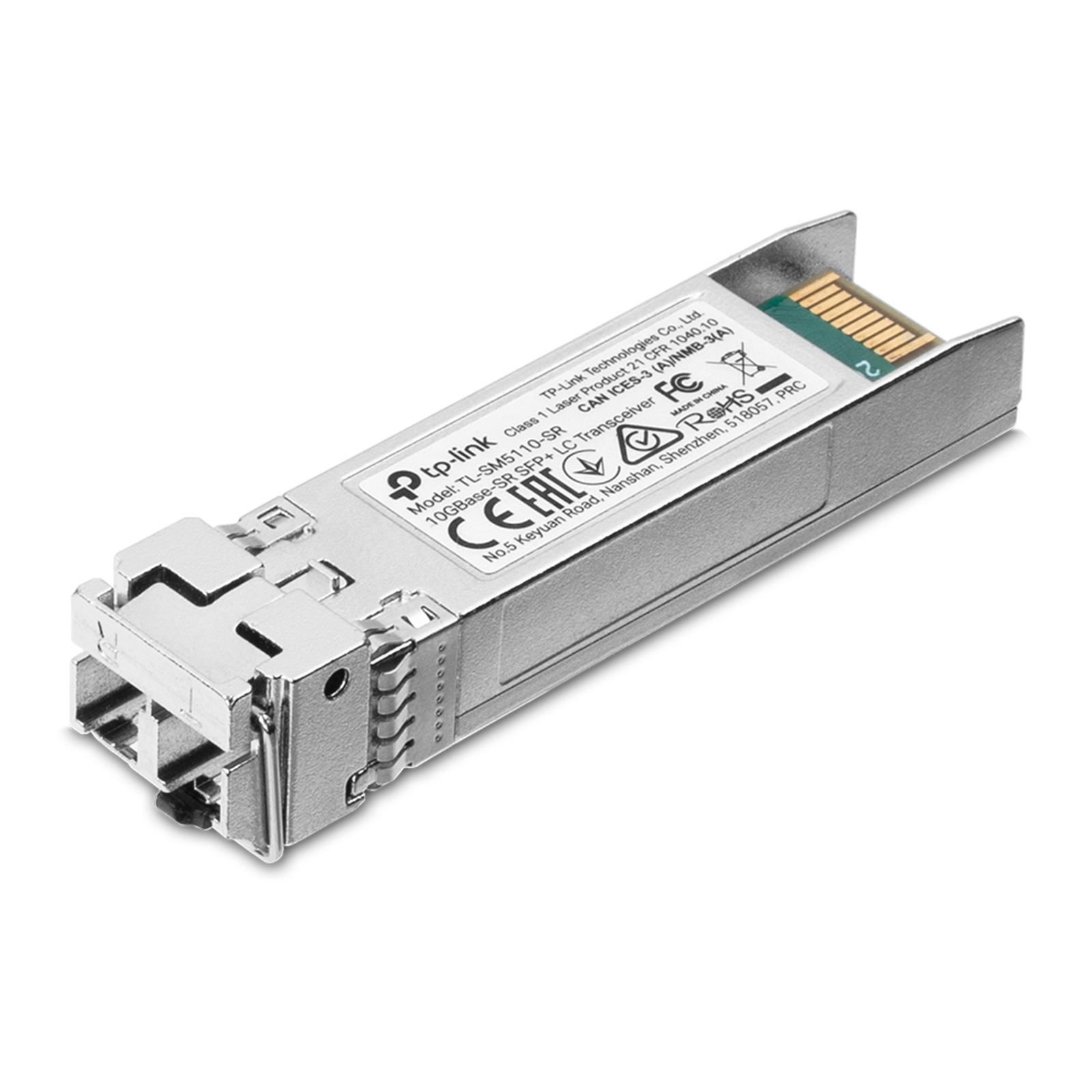

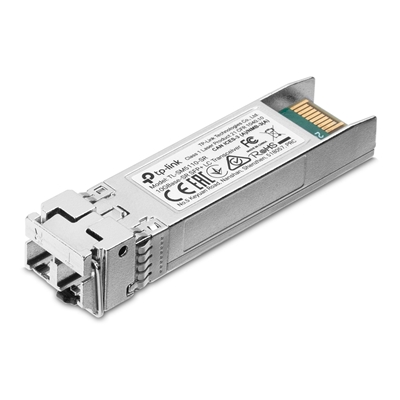

10GBase-SR SFP+ LC Transceiver

Key Features
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Specifications

PACKAGE CONTENTS
10G SFP+ Module TL-SM5110-SR
Installation Guide

HARDWARE FEATURES

DDM
Yes

SFP-MSA
Yes

Hot Swappable
Yes

MEDIA CONVERTER & MODULE

Dimensions (W x D x H)
2.4 x 0.6 x 0.5 in (61.3 x 14.5 x 12.2 mm)

TRANSCEIVER

Standards and Protocols
IEEE 802.3ae, TCP/IP, SFF-8472

Wave Length
850nm

Power Supply
3.3V

Fiber Type
50/125um or 62.5/125um Multi-mode

Max. Cable Length
300m (OM3)

Data Rate
10Gbps

Port Type
LC/UPC

Safety & Emission
FCC, CE

Environment
Operating Temperature: 0–70 ? (32–158 ?)
Storage Temperature: -40–80 ? (-40–176 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

CERTIFICATION

Certification FCC, CE

ENERGY MANAGEMENT

Input voltage 3.3 V

FEATURES

Certification FCC, CE

Product colour Silver

Hot-swap Yes

LOGISTICS DATA

Harmonized System (HS) code 85369010

OPERATIONAL CONDITIONS

Operating relative humidity (H-H) 10 - 90%

Storage temperature (T-T) -40 - 80 °C

Operating temperature (T-T) 0 - 70 °C

Storage relative humidity (H-H) 5 - 90%

PACKAGING DATA

Package weight 60 g

Package depth 122.5 mm

Package height 38.5 mm

Package width 81.5 mm

PERFORMANCE

Interface type SFP+

Maximum data transfer rate 10000 Mbit/s

Wavelength 850 nm

Fiber optic connector LC (UPC)

Maximum transfer distance 300 m

Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm

SFP transceiver type Fiber optic

Digital Diagnostics Monitoring (DDM) Yes

Harmonized System (HS) code 85369010

Multi-mode fiber (MMF) supported Yes

WEIGHT & DIMENSIONS

Height 12.2 mm

Width 14.5 mm

Depth 61.3 mm

Type	Transceiver
Speed	N/A
PoE	N/A

Type	Transceiver
Speed	N/A
PoE	N/A
