What This Product Does

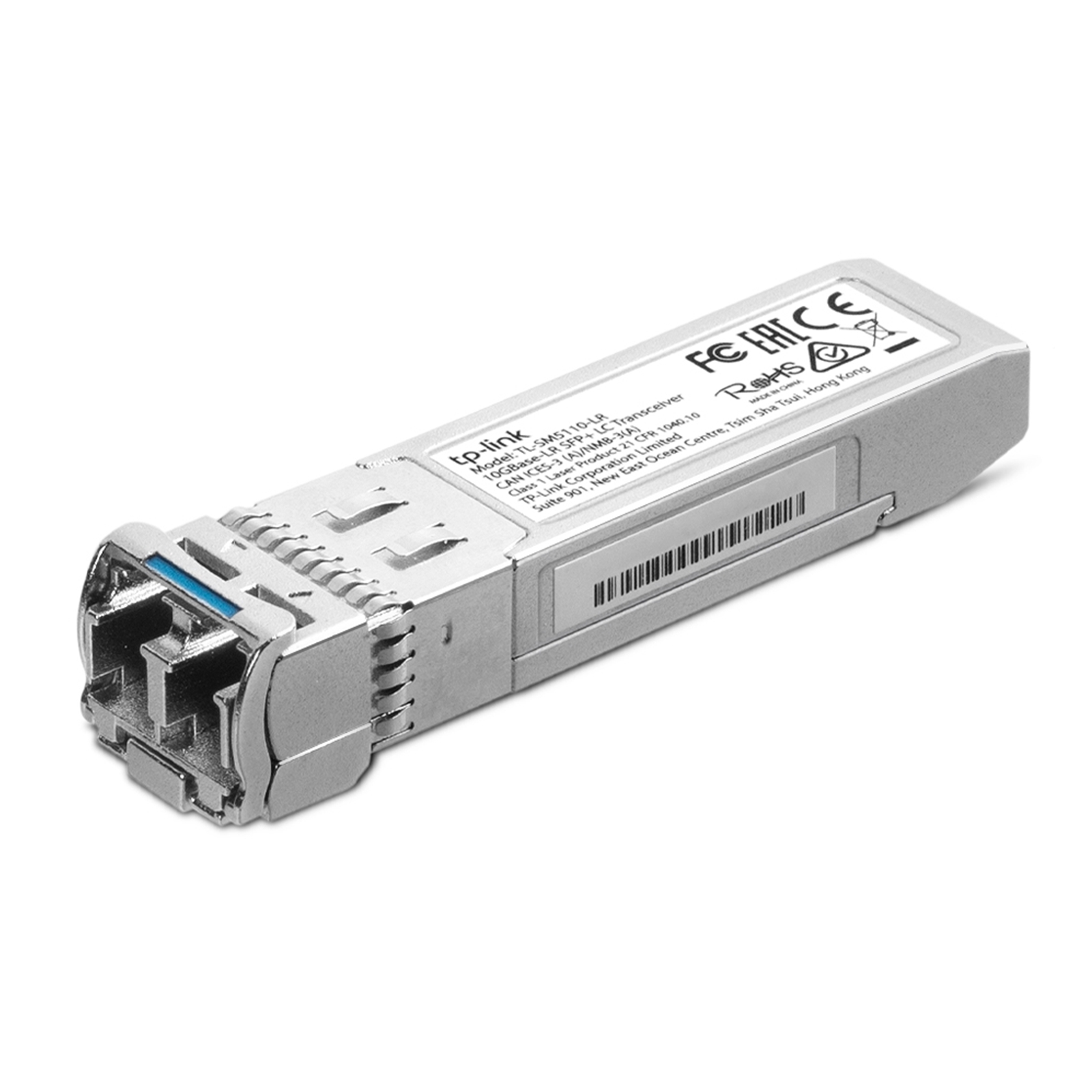

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Specifications

PACKAGE CONTENTS

Package Contents:
• 10G SFP+ Module TL-SM5110-LR
• Installation Guide

HARDWARE FEATURES

DDM:
Yes

SFP-MSA:
Yes

Hot Swappable:
Yes

MEDIA CONVERTER & MODULE

Dimensions (W*D*H):
2.2*0.5*0.4 in (56.7*13.9*10.35 mm)

TRANSCEIVER

Standards and Protocols:
IEEE 802.3ae, TCP/IP

Wave Length:
1310 nm

Power Supply:
3.3V

Fiber Type:
9/125um Single-Mode

Max. Cable Length:
10 km

Data Rate:
10 Gbps

Port Type:
LC Duplex

Safety & Emission:
FCC, CE

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

CERTIFICATES
Certification	FCC, CE
CERTIFICATION
Certification	FCC, CE
ENERGY MANAGEMENT
Input voltage	3.3 V
Input voltage	3.3 V
FEATURES
Certification	FCC, CE
Certification	FCC, CE
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Hot-Plug support	Yes
Brand compatibility	TP-Link
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Hot-Plug support	Y
Brand compatibility	TP-Link
LOGISTICS DATA
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
NETWORKING
Interface type	SFP+
Data transfer rate (max)	10000 Mbit/s
Networking standards	IEEE 802.3ae
Fiber optic connector	LC
SFP transceiver type	Fiber optic
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 85 °C
Operating temperature range (T-T)	0 - 70 °C
Storage relative humidity range	5 - 90%
PACKAGING CONTENT
Quantity per pack	1 pc(s)
Number of products included	1 pc(s)
PACKAGING DATA
Package weight	60 g
Package depth	122.5 mm
Package height	38.5 mm
Package width	81.5 mm
Number of products included	1 pc(s)
Number of products included	1 pc(s)
PERFORMANCE
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3ae
Wavelength	1310 nm
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3ae
Fiber optic connector	LC
Maximum transfer distance	10000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver type	Fiber optic
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Wavelength	1310 nm
Hot-Plug support	Y
Digital Diagnostics Monitoring (DDM)	Yes
Harmonized System (HS) code	85369010
Multi-mode fiber (MMF) supported	No
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Fiber optic connector	LC
Maximum transfer distance	10000 m
Fiber cable diameters supported	9/125 µm
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Y
Multi-mode fiber (MMF) supported	N
Single-mode fiber (SMF) supported	Y
SFP transceiver standard	LR
TECHNICAL DETAILS
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Wavelength	1310 nm
Hot-Plug support	Y
Maximum transfer distance	10000 m
Fiber cable diameters supported	9/125 µm
