What This Product Does

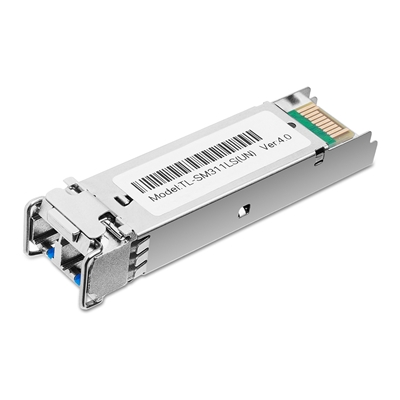

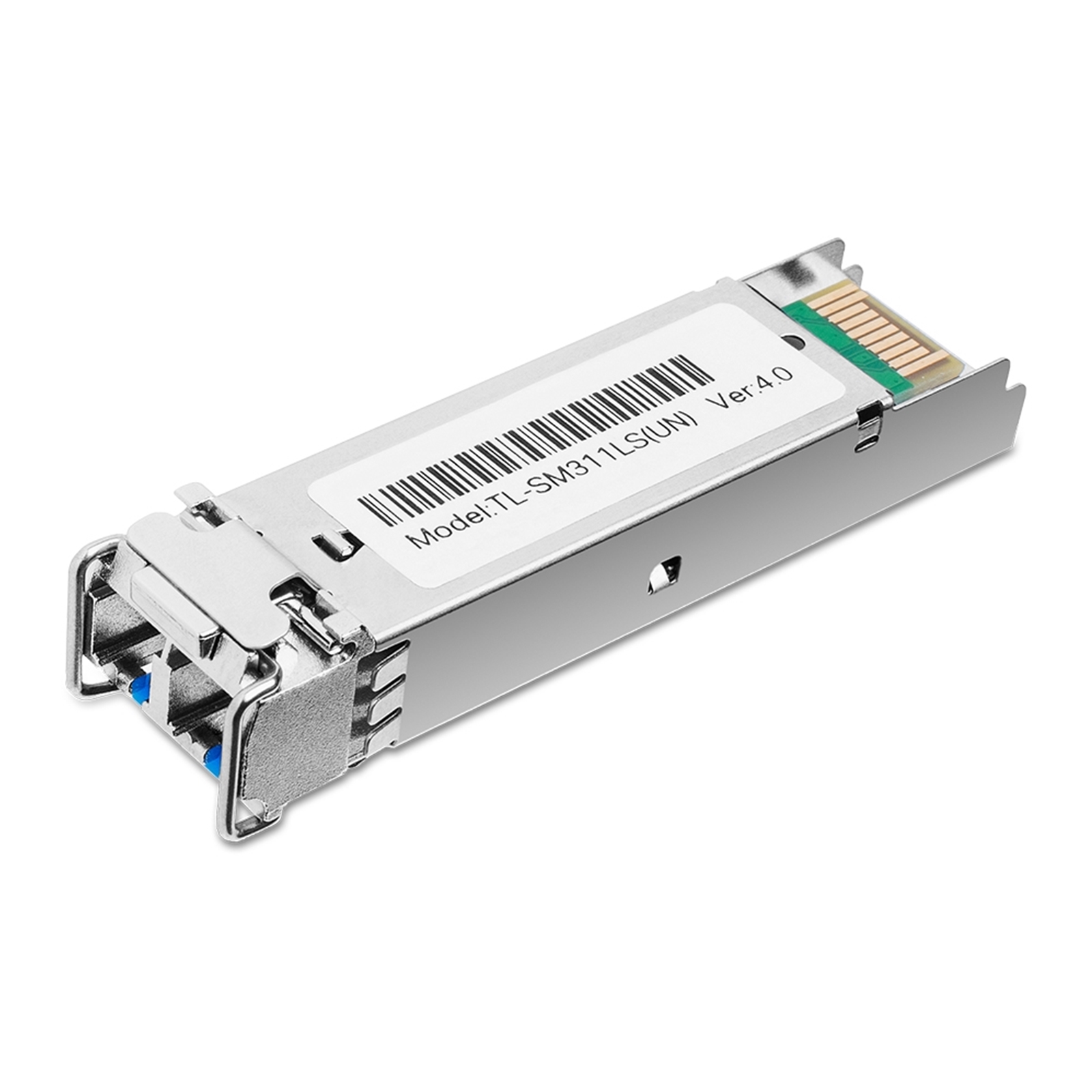

The TL-SM311 series Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.

Specifications

PACKAGE CONTENTS

Package Contents:
• SFP Module TL-SM311LS
• Installation Guide

HARDWARE FEATURES

DDM:
Yes

SFP-MSA:
Yes

Hot Swappable:
Yes

MEDIA CONVERTER & MODULE

Standards and Protocols:
IEEE 802.3z

Wave Length:
1310 nm

Dimensions (W*D*H):
2.2*0.6*0.5 in (55.4*14.6*12.9 mm)

Power Supply:
3.3 V

Safety & Emission:
FCC, CE

Cable:
Single-Mode Fiber

Fiber Type:
9/125 µm Single-Mode

Max. Cable Length:
20 KM

Data Rate:
1.25 Gbps

Port Type:
LC Duplex

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

CERTIFICATES
Certification	FCC, CE
DESIGN
Certification	FCC, CE
Compliance industry standards	IEEE 802.3z
MANAGEMENT FEATURES
Plug and Play	Y
NETWORKING
Data transfer rate (max)	1280 Mbit/s
OPERATIONAL CONDITIONS
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 80 °C
Operating temperature range (T-T)	0 - 70 °C
Storage relative humidity range	5 - 90%
OTHER FEATURES
Interface	LC
Data link protocols	CSMA/CD, TCP/IP
Full duplex	Y
Power requirements	3.3V
Compliance industry standards	IEEE 802.3z
Fiber type	9/125 µm
PERFORMANCE
Plug and Play	Y
Wavelength	1310 nm
Maximum transfer distance	10000 m
PORTS & INTERFACES
Connectivity technology	Wired
SPECIAL FEATURES
Plug and Play	Y
TECHNICAL DETAILS
Plug and Play	Y
Wavelength	1310 nm
Maximum transfer distance	10000 m
