What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Specifications

PACKAGE CONTENTS

Package Contents:

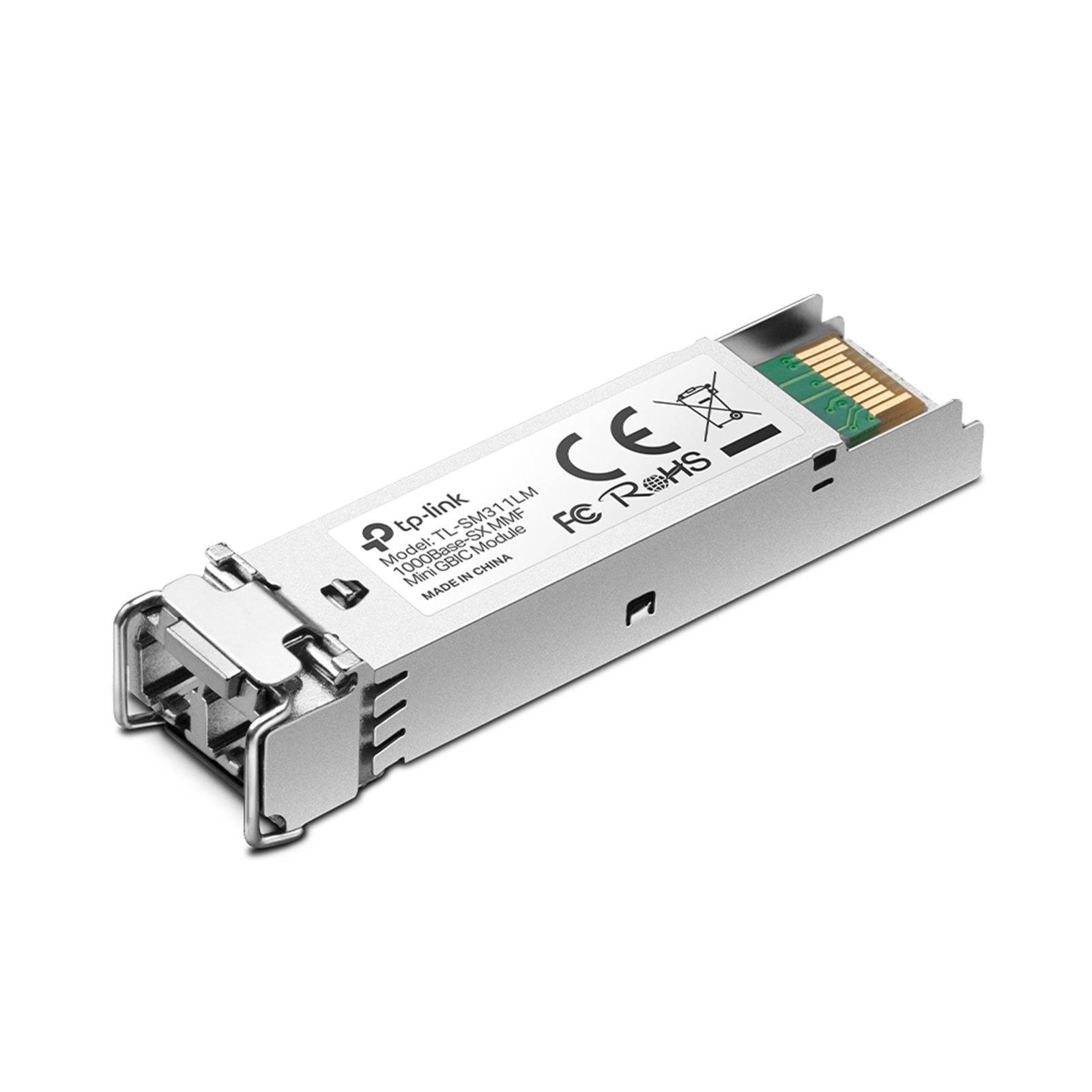

• SFP Module TL-SM311LM
• Installation Guide

MEDIA CONVERTER & MODULE

Standards and Protocols:
IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length:
850nm

Dimensions (W*D*H):
2.2*0.5*0.5 in (55.4*13.7*12.9 mm)

Power Supply:
3.3V

Safety & Emission:
FCC, CE

Cable:
Multi-mode Fiber

Fiber Type:
50/125µm or 62.5/125µm Multi-mode

Max. Cable Length:
550m

Data Rate:
1.25Gbps

Port Type:
LC/UPC

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

CERTIFICATES
Certification	FCC, CE
DESIGN
Certification	FCC, CE
Compliance industry standards	IEEE 802.3z
MANAGEMENT FEATURES
Plug and Play	Y
NETWORKING
Data transfer rate (max)	1280 Mbit/s
OPERATIONAL CONDITIONS
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 80 °C
Operating temperature range (T-T)	0 - 70 °C
Storage relative humidity range	5 - 90%
OTHER FEATURES
Interface	LC
Data link protocols	CSMA/CD, TCP/IP
Full duplex	Y
Power requirements	3.3V
Compliance industry standards	IEEE 802.3z
Fiber type	50/125, 62.5/125 µm
PERFORMANCE
Plug and Play	Y
Wavelength	850 nm
Maximum transfer distance	550 m
PORTS & INTERFACES
Connectivity technology	Wired
SPECIAL FEATURES
Plug and Play	Y
TECHNICAL DETAILS
Plug and Play	Y
Wavelength	850 nm
Maximum transfer distance	550 m
