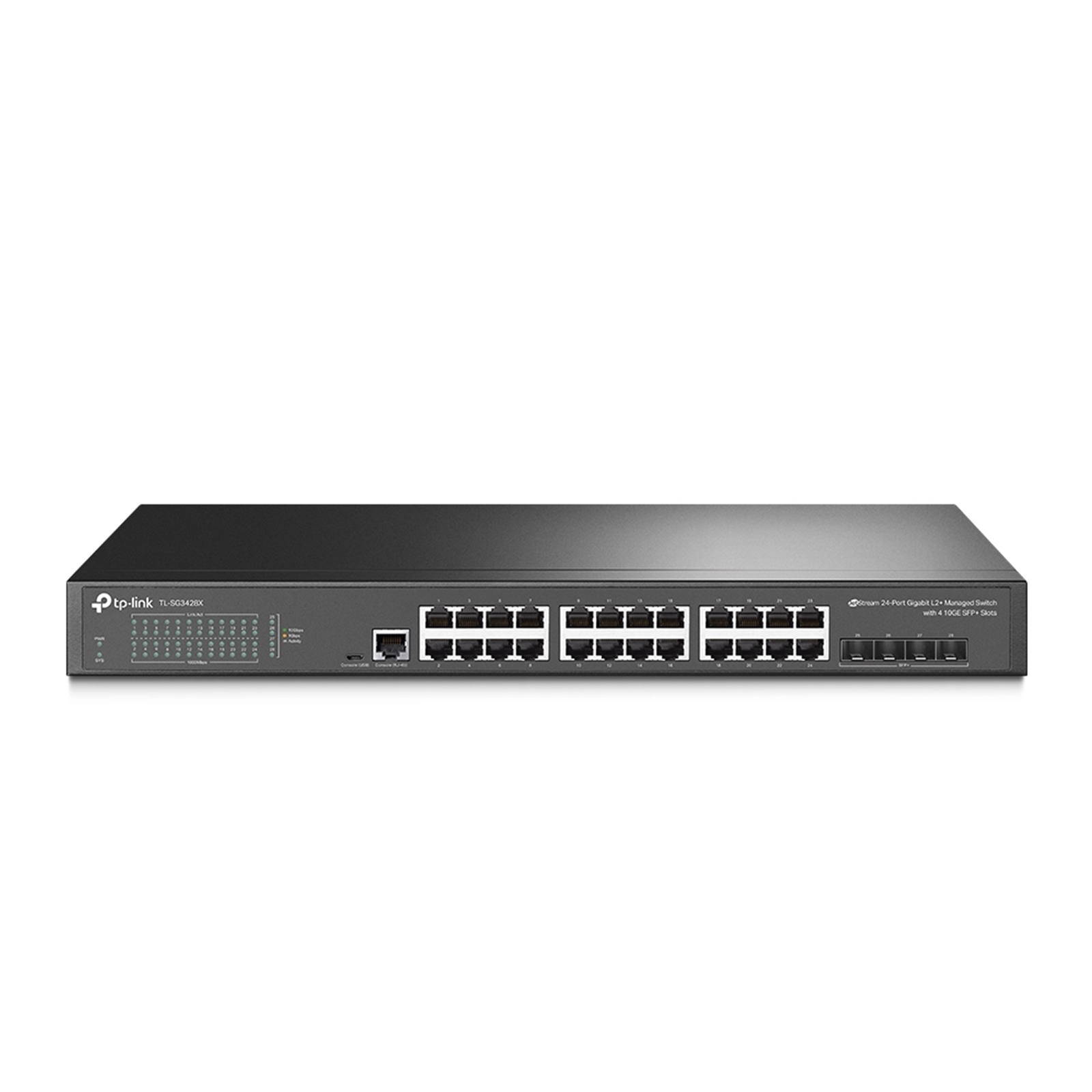

TP-Link Omada TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Key Specifications
TypeManaged Switch
Speed10/100/1000Mbps
PoENo
/productImages/80/NPTPL-TLSG3428X_87044653.JPG
/productImages/80/NPTPL-TLSG3428X_48379312.jpg
/productImages/80/NPTPL-TLSG3428X_48379313.jpg
/productImages/80/NPTPL-TLSG3428X_48379314.jpg
Manufacturer : TP-LINK
EAN : 6935364010539
Manufacturer Part Code : TL-SG3428X
Weight : 2.85 kg
Login For Pricing

Key Specifications
TypeManaged Switch
Speed10/100/1000Mbps
PoENo
Manufacturer :
TP-LINK

EAN :
6935364010539

Manufacturer Part Code :
TL-SG3428X

Weight :
2.85 kg
Recommended Products
1327Switches
See details
1335Network Cables
See details
1332Mobile Broadband
See details
1328Homeplugs
See details

TP-Link's JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Manufacturer's Website:
Warranty:
2 Years Return to Base Warranty.
DATA TRANSMISSION
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 95.23 Mpps
Packet buffer memory 12 MB
Number of static routes 48
Jumbo frames 9000
Static route Yes
DESIGN
Rack mounting Yes
Form factor 1U
LED indicators Yes
Product colour Black
ENERGY MANAGEMENT
Power source AC
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 23.6 W
Power supply included Yes
LOGISTICS DATA
Harmonized System (HS) code 85176990
MANAGEMENT FEATURES
MIB support Yes
Switch layer L2+/L3
Quality of Service (QoS) support Yes
Web-based management Yes
System event log Yes
Switch type Managed
ARP inspection Yes
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
MULTICAST FEATURES
Multicast support Yes
Multicast Listener Discovery (MLD) snooping Y
NETWORKING
Networking standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Flow control support Yes
Port mirroring Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Number of VLANs 4000
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
VLAN support Yes
10G support Yes
Active link detection Yes
Policy-based routing Yes
Virtual LAN features Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes 48
IPv6 routes 48
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 80.353 BTU/h
PACKAGING CONTENT
Cables included LAN (RJ-45)
PACKAGING DATA
Package weight 2.69 kg
Cables included LAN (RJ-45)
Package depth 250 mm
Package height 80 mm
Package width 528 mm
Quick start guide Yes
PERFORMANCE
Fanless Yes
Harmonized System (HS) code 85176990
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity 24
Console port RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
SFP+ module slots quantity 4
Power connector AC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) No
PROTOCOLS
Management protocols SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
SECURITY
Access Control List (ACL) Yes
SSH/SSL support Yes
IGMP snooping Yes
Authentication type AAA, RADIUS, TACACS+
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
WEIGHT & DIMENSIONS
Height 44 mm
Width 440 mm
Depth 180 mm
