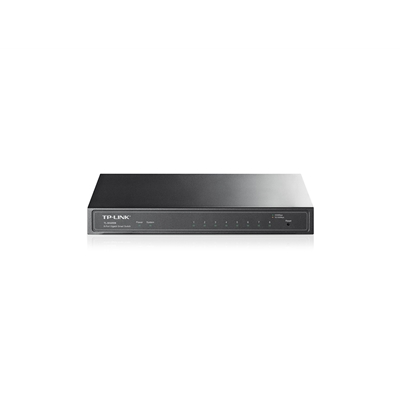

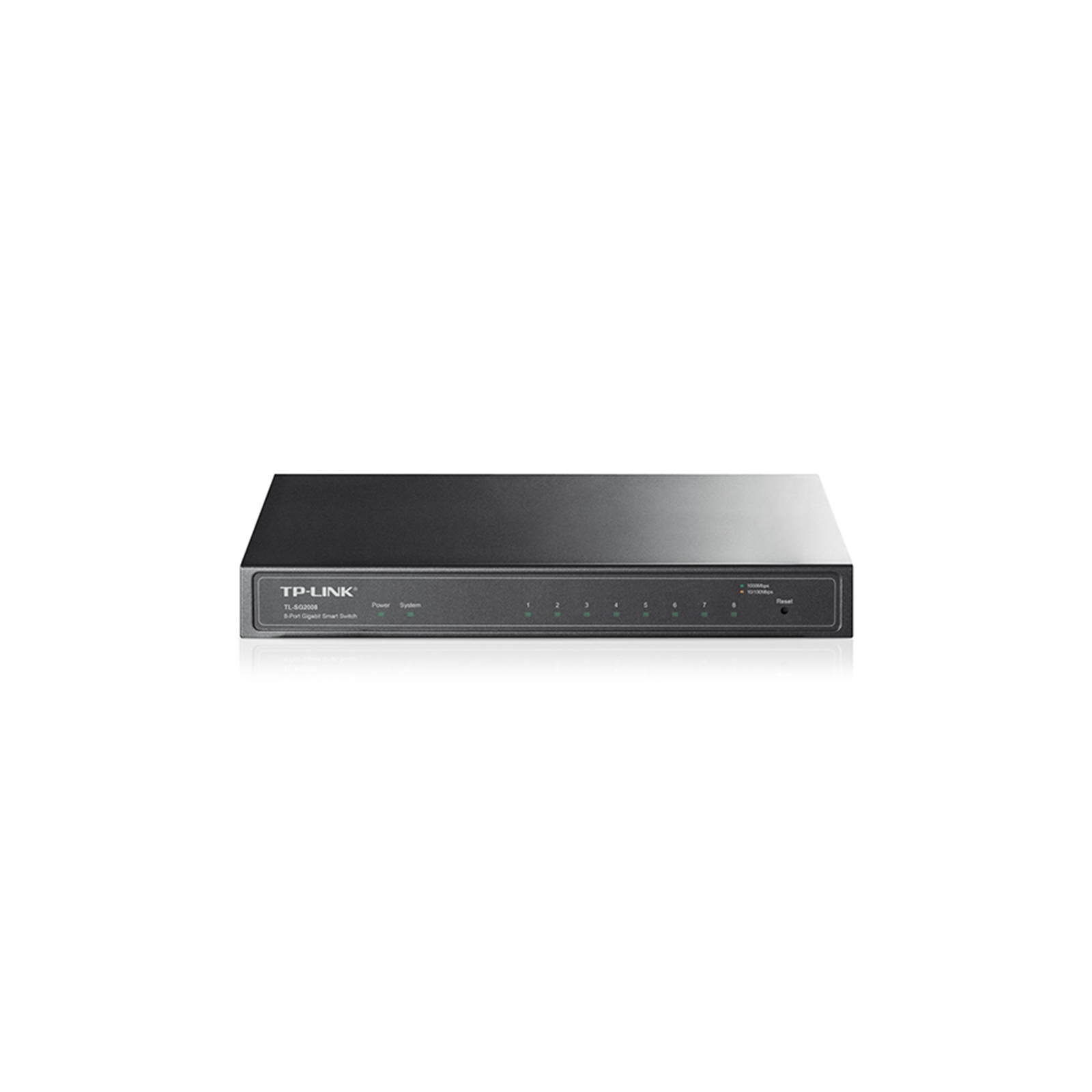

JetStream 8-Port Gigabit Smart Switch

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Manufacturer's Website:

www.tp-link.com

Warranty:

2 Years Return to Base Warranty.

CERTIFICATION
Certification	CE, FCC, RoHS
DATA TRANSMISSION
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Store-and-forward	Yes
Forwarding rate	11.9 Mpps
Number of static routes	32
Number of IP interfaces	16
Jumbo frames	9000
Static route	Yes
DESIGN
Certification	CE, FCC, RoHS
LED indicators	Yes
Wall mountable	Yes
Product colour	Black
ENERGY MANAGEMENT
Power source	DC
Input voltage	12 V
Input current	1 A
Power consumption (max)	6.42 W
Power supply included	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
MIB support	Y
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
ARP inspection	Yes
Cloud-managed	Yes
MULTICAST FEATURES
Multicast support	Yes
NETWORKING
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Number of VLANs	4000
Spanning tree protocol	Yes
VLAN support	Yes
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
OTHER FEATURES
Input voltage	12 V
PACKAGING CONTENT
Cables included	AC
User guide	Yes
PACKAGING DATA
Cables included	AC
User guide	Yes
PERFORMANCE
Internal memory	256 MB
Flash memory	32 MB
Fanless	Yes
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	No
PROTOCOLS
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
SECURITY
Security algorithms	SSH, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
WEIGHT & DIMENSIONS
Height	26 mm
Width	209 mm
Depth	126 mm
