Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8� 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.

Powerful Performance for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let's begin the unprecedented smooth game!

Ideal for Small and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.

2.5G Super-Fast Speeds without Changing Cables
Flawlessly integrated into existing gigabit Ethernet network infrastructures, 2.5� faster speeds* with regular Cat5e Ethernet cables, without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

Silent Operation with Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.

Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

Specifications

HARDWARE FEATURES

Standards and Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface:
8x 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity:
Fanless

External Power Supply:
External Power Adapter (Output: 12 VDC / 1.5 A)

LED Indicator:
• System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ):
8.9x5.2x1.4 in (226x131x35 mm)

Max Power Consumption:
15.65 W

Max Heat Dissipation:
53.40 BTU/h

PERFORMANCE

Switching Capacity:
40 Gbps

Packet Forwarding Rate:
29.8 Mpps

MAC Address Table:
16 K

Packet Buffer Memory:
1.5 Mb

Jumbo Frame:
10 KB

SOFTWARE FEATURES

Advanced Features:
• 802.3X Flow Control
• 802.1p/DSCP QoS

Transfer Method:
Store and Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
• 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2
• Power Adapter
• Installation Guide
• Rubber Feet

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

DATA TRANSMISSION
MAC address table	16000 entries
Switching capacity	40 Gbit/s
MAC address table	16000 entries
Jumbo frames support	Yes
Store-and-forward	Yes
Switching capacity	40 Gbit/s
Forwarding rate	29.8 Mpps
Packet buffer memory	1.5 MB
Jumbo frames	10000
Store-and-forward	Y
10G support	N
Forwarding rate	29.8 Mpps
Packet buffer memory	1.5 MB
DESIGN
Rack mounting	No
LED indicators	Yes
Wall mountable	Yes
Product colour	Black
LED indicators	Y
Colour of product	Black
ENERGY MANAGEMENT
Power source	DC
Input voltage	12 V
Input current	1.5 A
Heat dissipation	53.4 BTU/h
DC input voltage	12 V
Power supply included	Yes
Power over Ethernet (PoE) Support	N
Input current	1.5 A
DC input voltage	12 V
Power supply included	Y
ILLUMINATION/ALARMS
LED indicators	Y
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Quality of Service (QoS) support	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Y
MEMORY
Packet buffer memory	1.5 MB
NETWORKING
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
MAC address table	16000 entries
Flow control support	Yes
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3p,IEEE 802.3u,IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Flow control support	Y
Auto-negotiation	Yes
Store-and-forward	Y
10G support	N
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	53.4 BTU/h
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 70 °C
Operating temperature range (T-T)	0 - 40 °C
Storage relative humidity range	5 - 90%
Heat dissipation	53.4 BTU/h
OTHER FEATURES
Input voltage	12 V
PACKAGING CONTENT
Cables included	AC, LAN (RJ-45)
Cables included	AC, LAN (RJ-45)
PACKAGING DATA
Package weight	1.35 kg
Cables included	AC, LAN (RJ-45)
Package depth	315 mm
Package height	70 mm
Package width	240 mm
Cables included	AC, LAN (RJ-45)
PERFORMANCE
Fanless	Yes
Harmonized System (HS) code	85176990
Packet buffer memory	1.5 MB
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	8
2.5G Ethernet (copper) ports quantity	8
Basic switching RJ-45 Ethernet ports quantity	8
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	N
TECHNICAL DETAILS
Colour of product	Black
WEIGHT & DIMENSIONS
Height	35 mm
Width	226 mm
Depth	131 mm
Height	35 mm
Width	226 mm
Depth	131 mm

Target Components

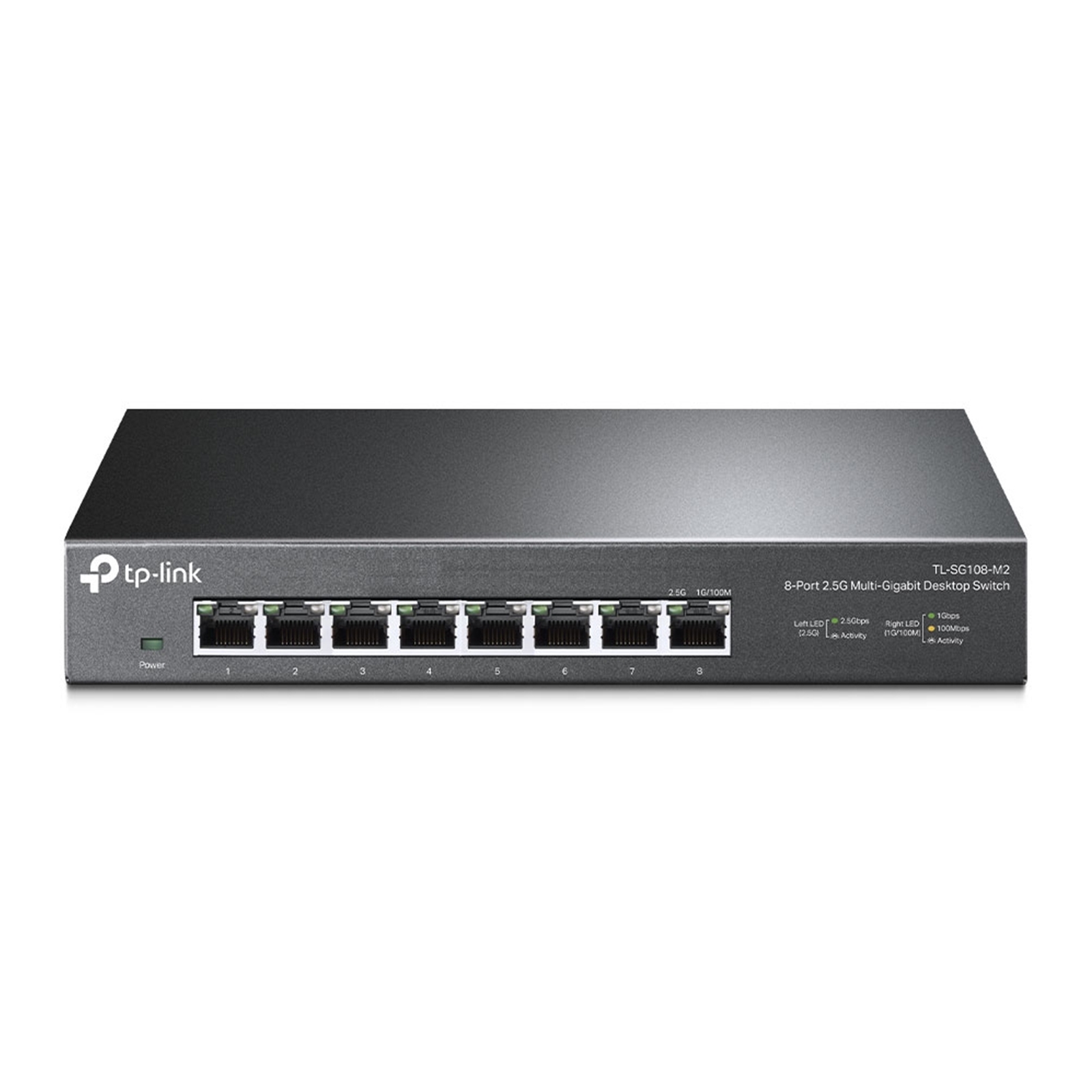

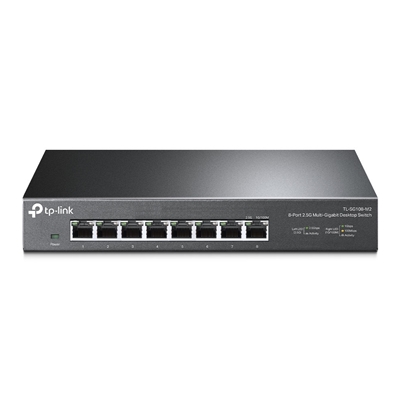

TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Desktop Switch
