Target Components

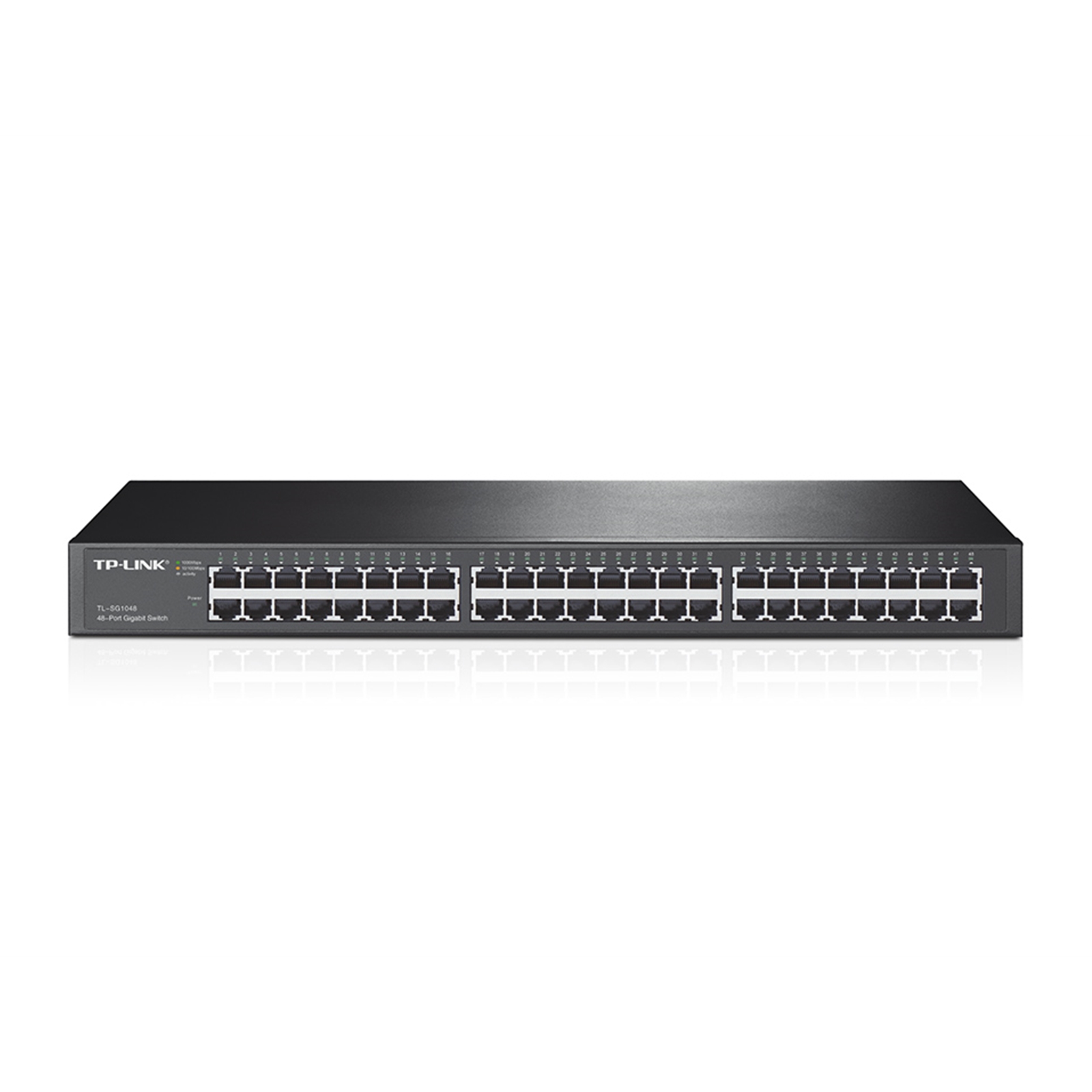

TP-Link TL-SG1048 10/100/1000Mbps 48-Port Unmanaged Gigabit Rackmount Network Switch

NPTPL-TL-SG1048
Key Specifications
TypeUnmanaged Switch
Speed10/100/1000Mbps
PoENo
Manufacturer : TP-LINK
EAN : 0807030506089
Manufacturer Part Code : TL-SG1048
Weight : 3.95 kg
Login For Pricing

Key Specifications
TypeUnmanaged Switch
Speed10/100/1000Mbps
PoENo
Manufacturer :
TP-LINK

EAN :
0807030506089

Manufacturer Part Code :
TL-SG1048

Weight :
3.95 kg
Recommended Products
1327Switches
See details
1335Network Cables
See details
1332Mobile Broadband
See details
1328Homeplugs
See details

Key Features
48 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 18%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
17.32*8.7*1.73 in.(440*220*44 mm)

Mounting
Rack Mountable

Max Power Consumption
32.29W(220V/50Hz)

Max Heat Dissipation
110.17BTU/h

PERFORMANCE

Switching Capacity
96Gbps

Packet Forwarding Rate
71.4Mpps

MAC Address Table
16K

Buffer Memory
12Mb

Jumbo Frame
12KB

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing
Manufacturer's Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
CERTIFICATES
Certification FCC, CE, RoHS
DESIGN
LED indicators Y
Colour of product Black
ENERGY MANAGEMENT
Power consumption (max) 29.8 W
AC input frequency 50/60 Hz
Power consumption (max) 29.8 W
FEATURES
Certification FCC, CE, RoHS
LED indicators Yes
Product colour Black
LED indicators Y
Product colour Black
LOGISTICS DATA
Harmonized System (HS) code 85176990
NETWORKING
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity range 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature range (T-T) 0 - 40 °C
PACKAGING CONTENT
Cables included AC
Cables included AC
PERFORMANCE
Certification FCC, CE, RoHS
Harmonized System (HS) code 85176990
TECHNICAL DETAILS
Colour of product Black
WEIGHT & DIMENSIONS
Height 44 mm
Width 440 mm
Depth 220 mm
Height 44 mm
Width 440 mm
Depth 220 mm
