Target Components

Centralised Management for Access Points, Switches, and Gateways

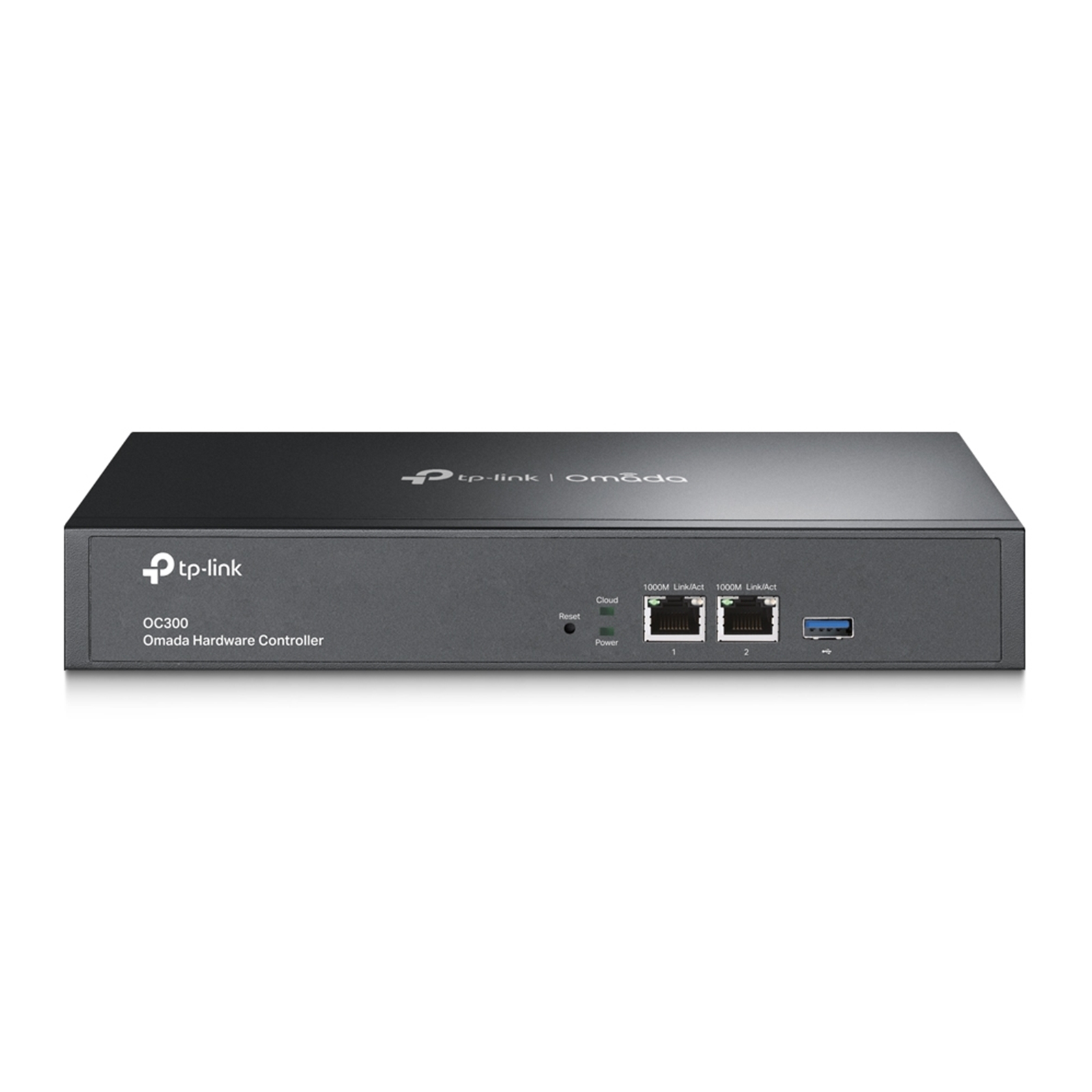

OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralised management of access points, switches, and gateways—all controlled from a single interface.


Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.


Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.


Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

Specifications

Interface
2x 10/100/1000 Mbps Ethernet Ports
1x USB 3.0 Port

Power Supply
100–240 V~50/60 Hz, 0.6 A

Other Non-Network Ports
1 x USB

Includes
Mounting Kit

Dimensions (WxHxD)
294 x 44 x 180 mm

Model Number
OC300

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes
