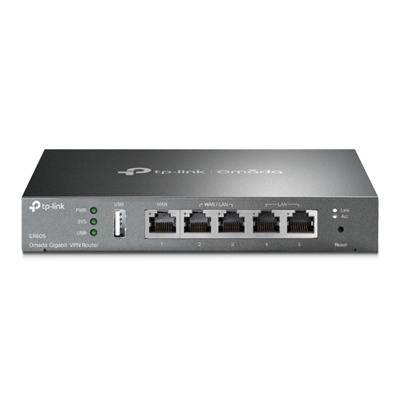

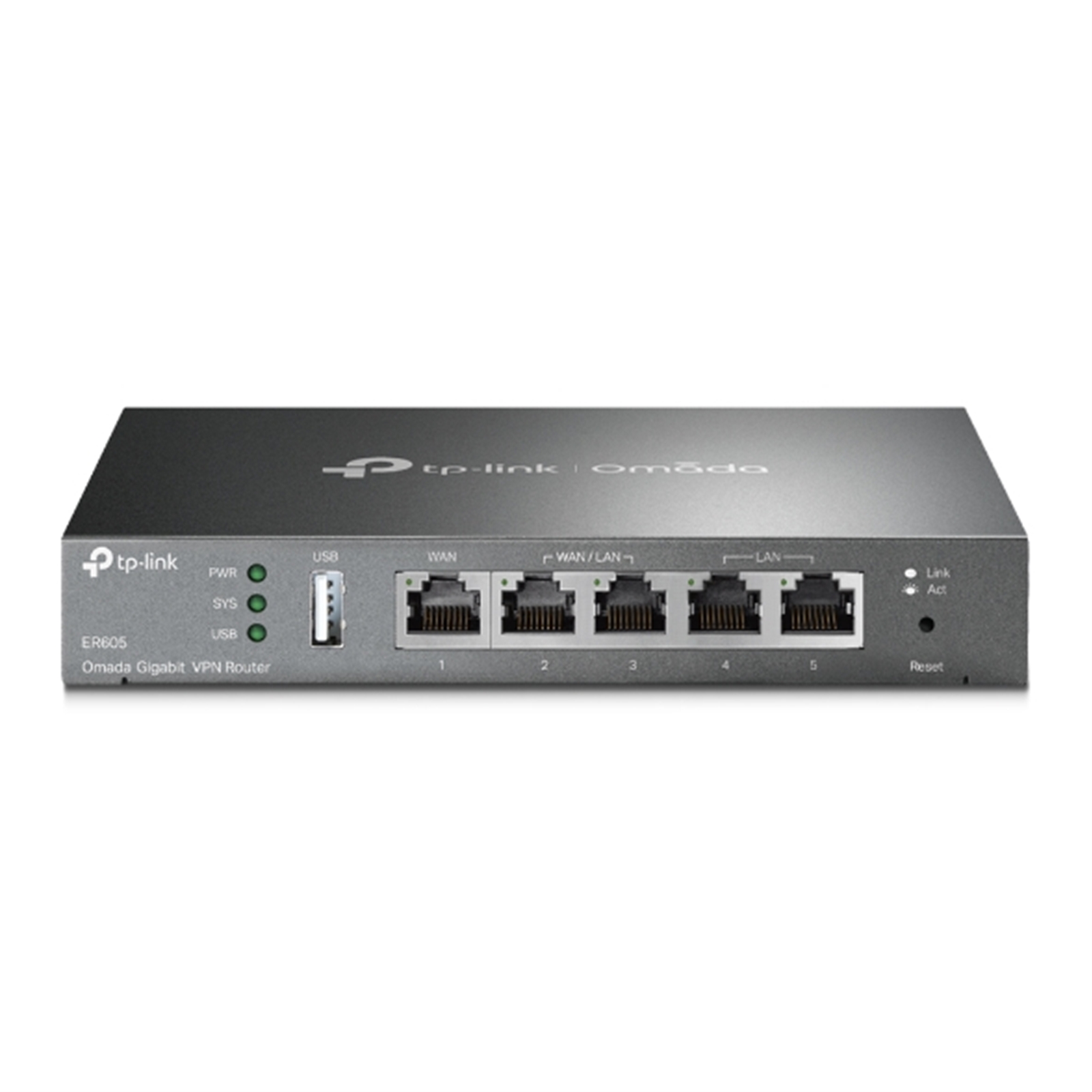

Omada Gigabit VPN Router
Key Features
ntegrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.
Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.
Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec, 16 x OpenVPN, 16 x L2TP, and 16 x PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.
High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.
Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.
Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
Specifications
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup?)
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply
External 12V/1A DC Adapter
PoE Budget
-
Flash
128 MB NAND
DRAM
256 MB DDR
LED
PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in (158 x 101 x 25mm)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
Desktop/Wall-mount
Max Power Consumption
7.94 W
PERFORMANCE
Concurrent Session
150,000
New Sessions /Second
2,600
NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
NAT(DHCP)
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
NAT(PPPoE)
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
NAT (L2TP)
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
NAT (PPTP)
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
IPsec VPN Throughput
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN
• 21.70 Mbps
L2TP VPN Throughput
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
PPTP VPN Throughput
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps
SSL VPN Throughput
-
66 Byte Packet forwarding rate
• Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps
1,518 Byte Packet forwarding rate
• Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps
BASIC FUNCTIONS
WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone
Modify WAN/LAN MAC Address?
DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
• Static Routing
• Policy Routing
Bandwidth Control
IP-based Bandwidth Control
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit
IP-based Session Limit
VPN
IPsec VPN
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server
• 10 PPTP VPN Clients
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN
• L2TP VPN Server
• 10 L2TP VPN Clients
• 16 Tunnels
• L2TP over IPSec
OpenVPN
• OpenVPN Server
• 10 OpenVPN Clients
• 16 OpenVPN Tunnels
SECURITY
Filtering
• WEB Group Filtering
• URL Filtering
• Web Security
ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
• No Authentication
• Simple Password
• Hotspot(Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook
MANAGEMENT
Omada App
Yes
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents
• Gigabti VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
