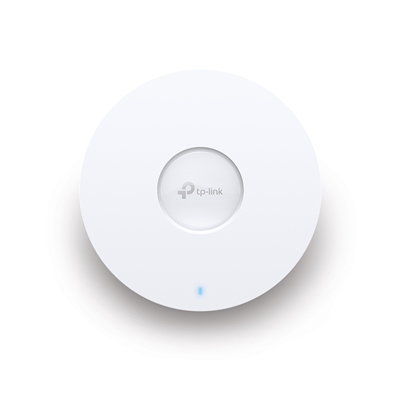

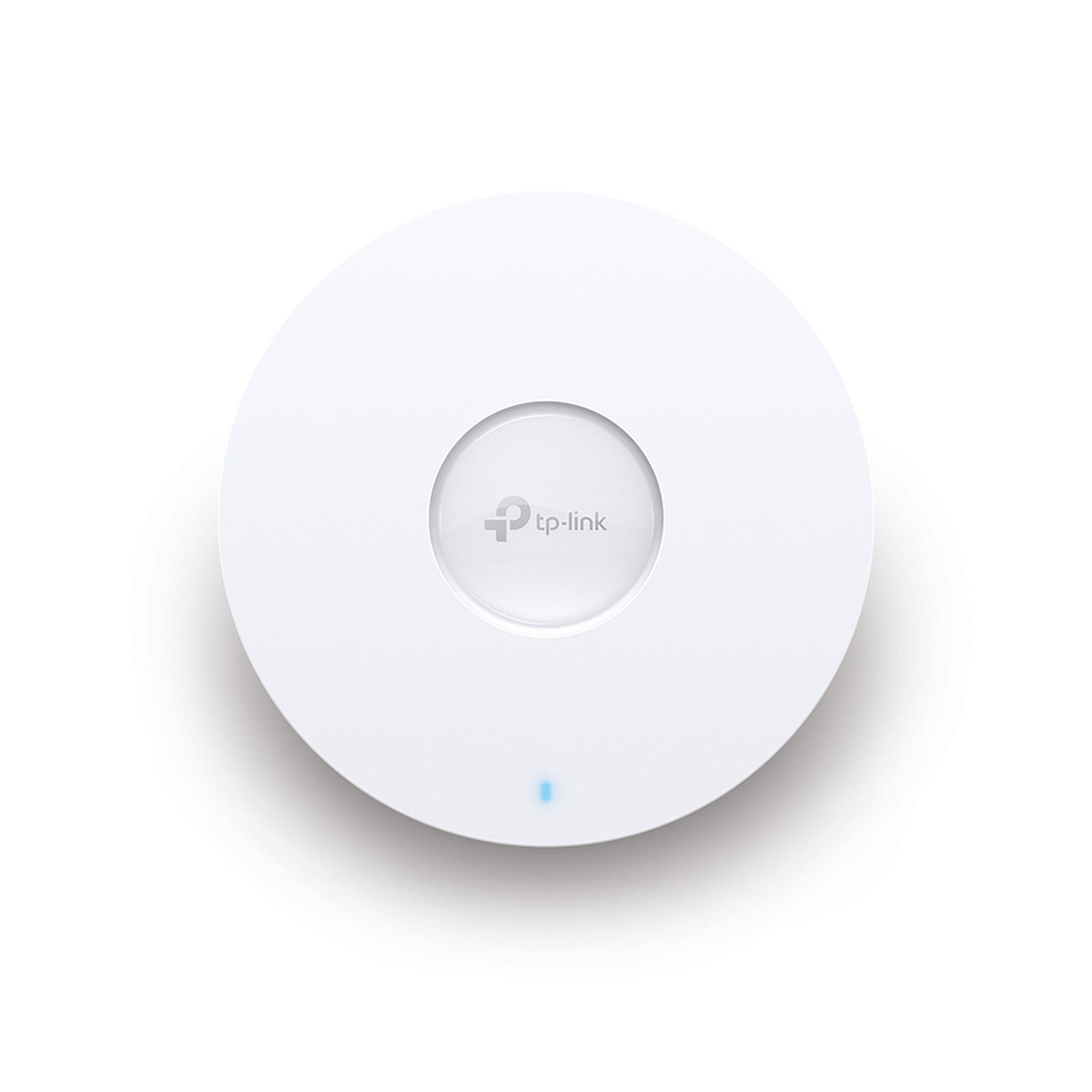

AX1800 Ceiling Mount WiFi 6 Access Point

Key Features
Ultra-Fast WiFi 6 Speeds - Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Density Connectivity - 4x increased capacity to connect more devices simultaneously.
Integrated into Omada SDN - Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management - Cloud access and Omada app for ultra convenience and easy management.
Ultra-Slim Design - 160 mm x 33.6 mm elegant design brings more agility.
Seamless Roaming -Even video streams and voice calls are unaffected as users move between locations.
Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered - Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
Secure Guest Network - Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with 4 x Increased Capacity
OFDMA and MU-MIMO increase network capacity by up to 4 x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously?. Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)?. With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Stay Smooth with Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving?. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP620 HD perfectly blend into any modern office, hotel, classroom, or café.

Easy to Mount with Refined Industrial Design
1
Push up
2
Rotate to lock

Specifications

Interface
1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC

Power Consumption
EU: 14.4 W (For PoE); 13.1 W (for DC)
US: 14.9 W (For PoE); 13.4 W (for DC)

Dimensions ( W x D x H )
6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm)

Antenna Type
Internal Omni Antenna
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi

Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps

Certification
CE, FCC, RoHS

Package Contents
EAP620 HD
Power Adapter
Ceiling / Wall Mounting Kits
Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment
Operating Temperature: 0–40 ? (32–104 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
