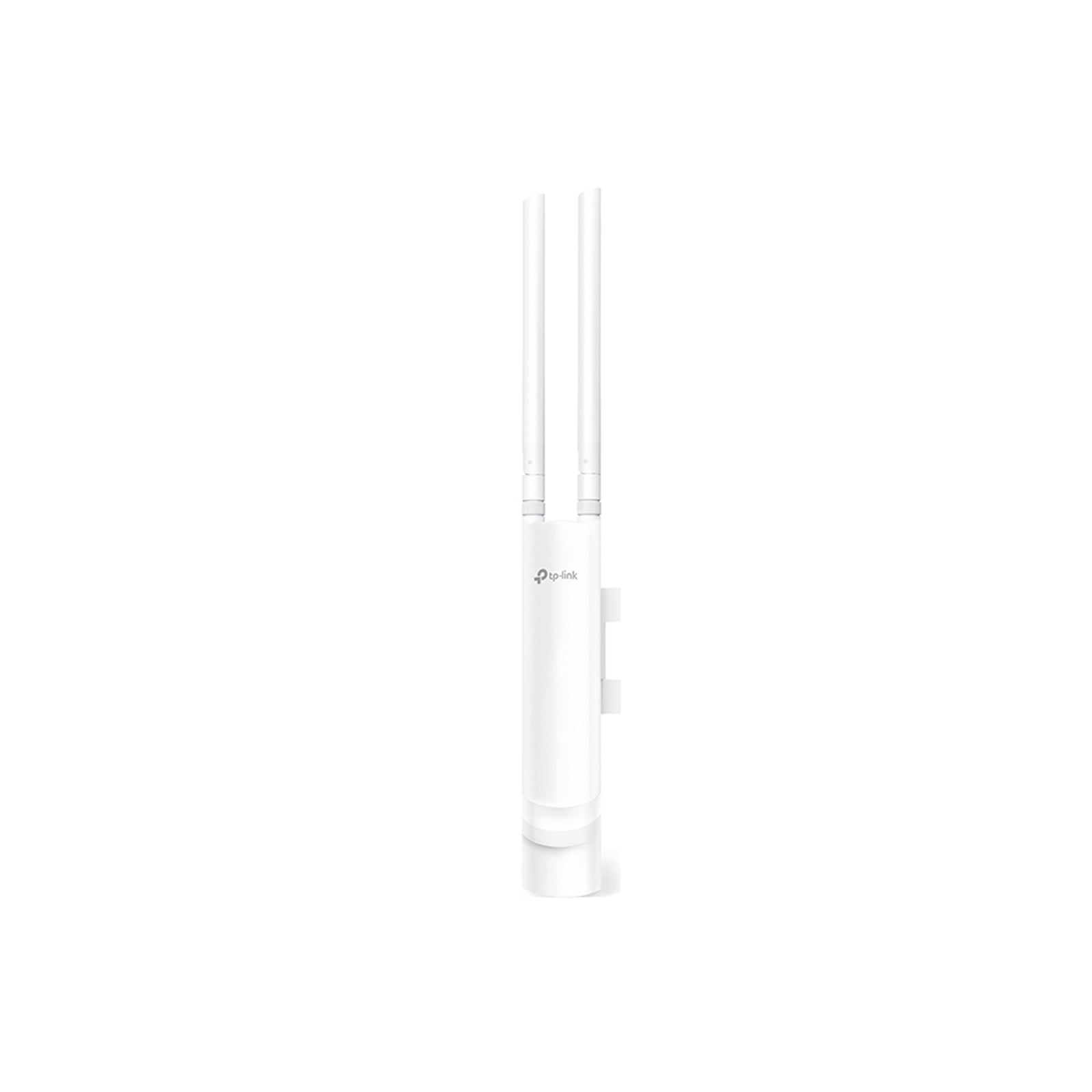

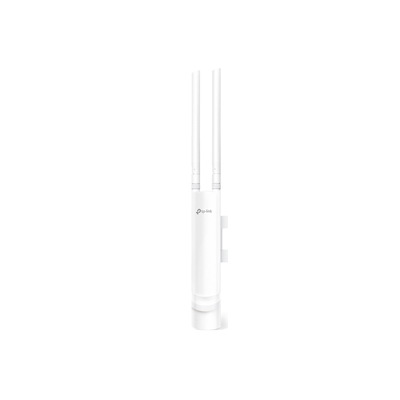

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimensions: 8.5 x 1.8 x 1.1in. (215 x 46 x 27mm).

Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralised Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It's network management as it should be - efficient and intuitive.

Key Features
Durable, weatherproof enclosure for outdoor Wi-Fi applications.
Up to 1200Mbps with 2x2 MIMO technology.
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations.
High transmission power and high gain antennas provide a long-range coverage area.
Free cloud centralised management and Omada app for ultra convenience and easy management.
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation.

Specifications

Model
EAP225-Outdoor

Device Type
Wireless Access Point

Compatible Internet Connections
Existing WiFi Network

Network Connectivity
10/100/1000
Wireless LAN

Wireless Speed
1200 Mbps

Wireless Protocols
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3af PoE

Wireless Band
Dual Band

Frequency
2.4 GHz
5 GHz

Wireless Transmitter Power
<25dBm

Antenna
2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi

Max. Power Consumption
10.5 W

Security Protocols
Captive Portal Authentication
Rogue AP Detection
SSID to VLAN Mapping
Wireless Isolation Between Clients
Wireless Mac Address Filtering

Manufacturer's Website:

www.tp-link.com

Warranty:

3 Years Return to Base Warranty.

ANTENNA
Antenna type	External
Antenna gain level (max)	4 dBi
Antenna type	external
Antenna gain level (max)	4 dBi
Antennas quantity	2
Antenna features	Detachable antenna
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna design	Detachable antenna
Antenna direction type	Omni-directional
DATA TRANSMISSION
Data transfer rate (max)	1200 Mbit/s
Ethernet LAN data transfer rates	10,100,1000 Mbit/s
DESIGN
Product colour	White
Reset button	Yes
Colour of product	White
International Protection (IP) code	IP65
Placement	Pole, Wall
Reset button	Y
Placement	Ceiling,Wall
ENERGY MANAGEMENT
Power consumption (typical)	10.5 W
Output voltage	24 V
Power consumption (typical)	10.5 W
Power over Ethernet (PoE)	Yes
AC adapter included	Y
Output voltage	24 V
Power over Ethernet (PoE) Support	Y
Power over Ethernet (PoE) type supported	Passive PoE
FEATURES
Maximum data transfer rate	1200 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Quality of Service (QoS) support	Yes
Rate limiting	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia�(WMM)/(WME)	Yes
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
MIMO type	Multi User MIMO
Virtual LAN features	VLAN mapping
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Transmitting power (FCC)	22 dBm
Transmitting power (CE)	27 dBm
BeamForming	Yes
Rate limiting	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
6 GHz	No
2.4 GHz	Y
5 GHz	Y
MIMO	Y
Airtime Fairness (ATF)	Y
MIMO type	Multi User MIMO
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Web-based management	Yes
Syslog	Yes
Web-based management	Y
Syslog	Y
NETWORKING
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 70 °C
Operating temperature range (T-T)	-30 - 70 °C
Storage relative humidity range	5 - 90%
PACKAGING CONTENT
AC adapter included	Yes
Quick start guide	Yes
AC adapter included	Y
Number of products included	1 pc(s)
Mounting kit	Yes
Quick start guide	Y
Number of products included	1 pc(s)
Mounting kit	Y
PACKAGING DATA
Package weight	640 g
AC adapter included	Yes
Package depth	270 mm
Package height	100 mm
Package width	140 mm
Quick start guide	Yes
AC adapter included	Y
Number of products included	1 pc(s)
Mounting kit	Yes
Quick start guide	Y
Number of products included	1 pc(s)
Mounting kit	Y
PERFORMANCE
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Data transfer rate (max)	1200 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
Web-based management	Y
Rate limiting	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Reset button	Y
Syslog	Y
2.4 GHz	Y
5 GHz	Y
MIMO	Y
Airtime Fairness (ATF)	Y
MIMO type	Multi User MIMO
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
Ethernet LAN (RJ-45) ports quantity	1
PROTOCOLS
DHCP client	-30 - 70 °C
SECURITY
Security algorithms	802.1x RADIUS
Security algorithms supported	802.1x RADIUS
MAC address filtering	Yes
Access Control List (ACL)	Yes
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID support	16
SUSTAINABILITY
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
TECHNICAL DETAILS
Height	27 mm
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
WEIGHT & DIMENSIONS
Height	27 mm
Width	215 mm
Depth	46 mm
Height	27 mm
Width	215 mm
Depth	46 mm
WIRELESS LAN FEATURES
Antenna type	external
Frequency band	2.4 - 5 GHz
Antenna gain level (max)	4 dBi
Antennas quantity	2
