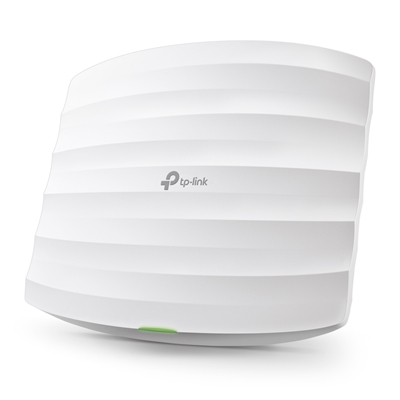

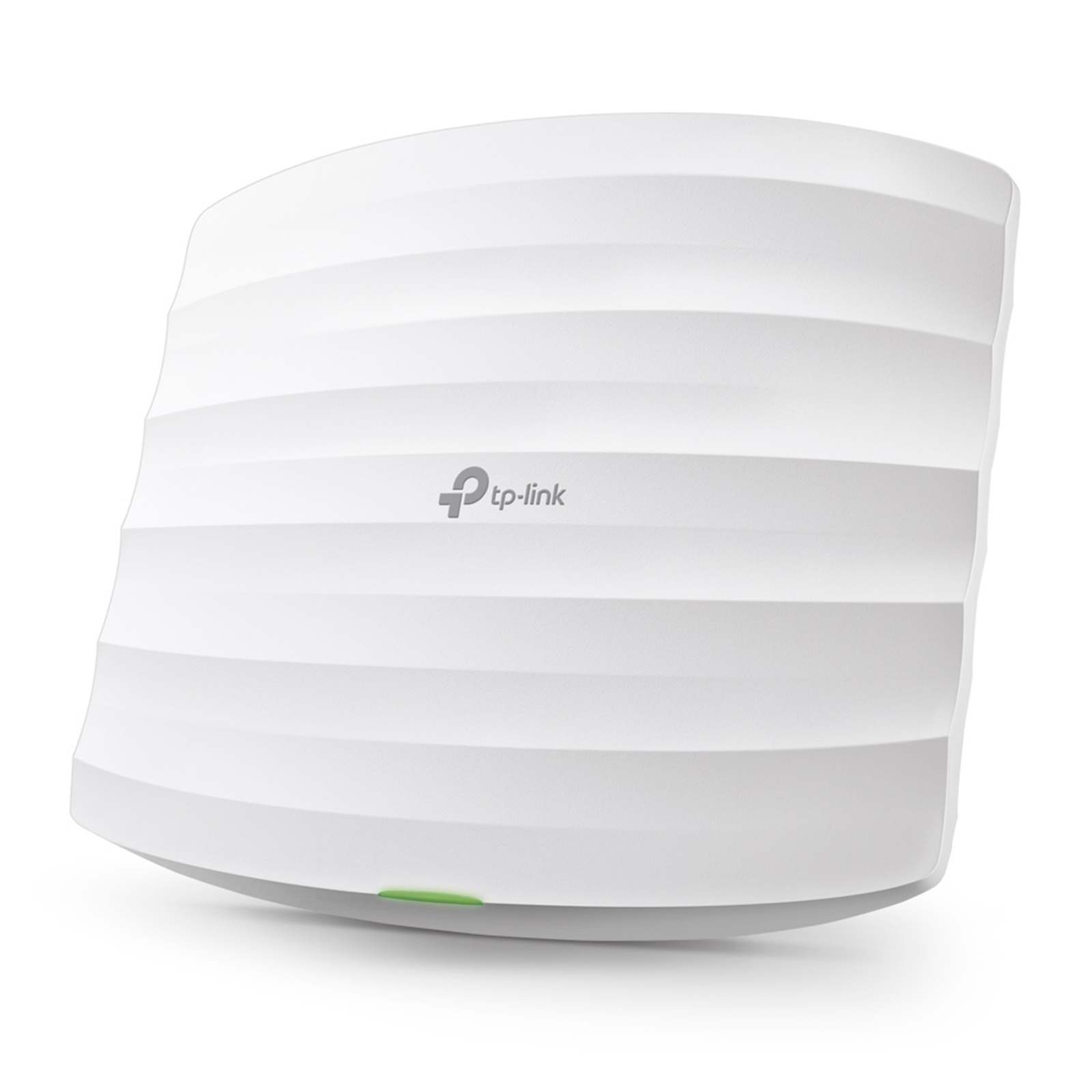

The TP-Link EAP225, an Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralised Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
Captive portal helps maintain only authorised guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Facebook Check-In & SMS Authentication
Captive portal helps maintain only authorised guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Key Features
Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds.
EAP Controller Software lets administrators easily manage hundreds of EAPs.
Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible.
Captive portal provides a convenient method for guest authentication.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.
MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections.
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience.
Supports management VLAN for an enhanced network management.
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose.
Specifications
Model
AC1350
Device Type
Wireless Access Point
Network Connectivity
10/100/1000
Network Ports
1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Wireless Speed
1317 (450+867) Mbps
Wireless Protocols
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3af PoE
Wireless Band
Dual Band
Frequency
2.4 GHz
5 GHz
Wireless Transmitter Power
24dBm(2.4GHz), 22dBm(5GHz)
Antenna
3 Internal Omni
Features
MU-MIMO
Dimensions
181.5 x 205.5 x 37.1 mm (WxHxD)
Package Contents
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
Warranty:
3 Years Return to Base Warranty.
|
ANTENNA
|
| Antenna type |
Internal |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
5 |
DESIGN
|
| LED indicators |
Power, WLAN |
| Wall mountable |
Y |
| Product colour |
White |
| On/off switch |
Yes |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
10.15 W |
| Power supply |
10.15 W |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Output current |
1.5 A |
| Power source type |
AC |
FEATURES
|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Windows operating systems supported |
Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP |
| Linux operating systems supported |
Y |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Reset button |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
MOBILE NETWORKING
|
| Mobile network generation |
4G |
NETWORKING
|
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| VLAN support |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING DATA
|
| Package weight |
910 g |
| AC adapter included |
Yes |
| Package depth |
340 mm |
| Package height |
65 mm |
| Package width |
228 mm |
| Manual |
Y |
| Quick start guide |
Yes |
| Package type |
Box |
| Quick installation guide |
Y |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
SECURITY
|
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Guest access |
Y |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
85176990 |
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, Federal Communications Commission (FCC), RoHS |
WAN CONNECTION
|
| DSL WAN |
N |
| Ethernet WAN |
Y |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
N |
WEIGHT & DIMENSIONS
|
| Height |
37.1 mm |
| Width |
205.5 mm |
| Depth |
181.5 mm |
