Cloud centralized management and Omada app for ultra convenience and easy management
Supports Power over Ethernet (802.3af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Enterprise class Wi-Fi security help to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types
Supports management vlan for an enhanced network management

HARDWARE FEATURES

Interface
Fast Ethernet (RJ-45) Port 1(Support IEEE802.3af PoE)

Button
Reset

Power Supply
802.3af PoE or external 9VDC/0.6A power supply

Power Consumption
2.8W

Dimensions ( W x D x H )
7.5 x 6.8 x 1.2 in (189.4 x 172.3 x 29.5mm)

Dimensions
7.5 x 6.8 x 1.2 in. (189.4 x 172.3 x 29.5mm)

Antenna Type
Internal 2 3dBi Omni

Mounting
Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
2.4-2.4835GHz

Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER

Wireless Functions
Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power
CE:= 19dBm(EIRP)
FCC:= 21dBm

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Omada Controller Software
Yes

Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1,v2c

System Logging Local/Remote Syslog
Local/Remote Syslog

Telnet
Yes

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

OTHERS

Certification
CE, FCC, RoHS

Package Contents
300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits
Installation Guide

System Requirements
Microsoft Windows 10/8/7/Vista/XP

Environment
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Manufacturer's Website:

www.tp-link.com

Warranty:

Manufacturer Lifetime Warranty

ANTENNA
Antenna type	Internal
Antenna gain level (max)	4 dBi
Antenna type	Internal
Antenna gain level (max)	4 dBi
Antennas quantity	2
Antennas quantity	2
CERTIFICATES
Certification	CE, FCC, RoHS
CERTIFICATION
Certification	CE, FCC, RoHS
DATA TRANSMISSION
Data transfer rate (max)	300 Mbit/s
Ethernet LAN data transfer rates	10,100,1000 Mbit/s
DESIGN
Certification	CE, FCC, RoHS
LED indicators	Yes
Product colour	White
Certification	CE, FCC, RoHS
Reset button	Yes
LED indicators	Y
Colour of product	White
On/off switch	Yes
Placement	Ceiling, Wall
Reset button	Y
On/off switch	Y
Placement	Ceiling, Wall
ENERGY MANAGEMENT
Power consumption (typical)	2.8 W
Output voltage	9 V
Power consumption (typical)	2.8 W
Power over Ethernet (PoE)	Yes
Output current	0.6 A
AC adapter included	Y
Output voltage	9 V
Power over Ethernet (PoE) Support	Y
Output current	0.6 A
FEATURES
Maximum data transfer rate	300 Mbit/s
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Quality of Service (QoS) support	Yes
Rate limiting	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Receiver sensitivity	300M: -71dBm@10% PER\n150M: -75dBm@10% PER\n54M: -78dBm@10% PER\n11M: -93dBm@8% PER\n6M: -92dBm@10% PER\n1M: -96dBm@8% PER
Automatic channel selection	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
2.4 GHz	Yes
5 GHz	No
Quality of Service (QoS) support	Y
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Rate limiting	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Automatic channel selection	Y
2.4 GHz	Y
5 GHz	N
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
ILLUMINATION/ALARMS
LED indicators	Y
LOGISTICS DATA
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Web-based management	Yes
Quality of Service (QoS) support	Y
Web-based management	Y
NETWORKING
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity range	10 - 90%
Storage temperature range (T-T)	-40 - 70 °C
Operating temperature range (T-T)	0 - 40 °C
Storage relative humidity range	5 - 90%
PACKAGING CONTENT
AC adapter included	Yes
AC adapter included	Y
Number of products included	1 pc(s)
Mounting kit	Yes
Quantity per pack	1 pc(s)
Number of products included	1 pc(s)
Mounting kit	Y
PACKAGING DATA
AC adapter included	Yes
AC adapter included	Y
Number of products included	1 pc(s)
Mounting kit	Yes
Number of products included	1 pc(s)
Mounting kit	Y
PERFORMANCE
Certification	CE, FCC, RoHS
Data transfer rate (max)	300 Mbit/s
Receiver sensitivity	300M: -71dBm@10% PER\n150M: -75dBm@10% PER\n54M: -78dBm@10% PER\n11M: -93dBm@8% PER\n6M: -92dBm@10% PER\n1M: -96dBm@8% PER
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Quality of Service (QoS) support	Y
Web-based management	Y
Rate limiting	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Reset button	Y
Automatic channel selection	Y
On/off switch	Y
2.4 GHz	Y
5 GHz	N
PORTS & INTERFACES
WAN connection	Ethernet (RJ-45), Wi-Fi
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45), Wi-Fi
Ethernet LAN (RJ-45) ports quantity	1
PROTOCOLS
DHCP client	0 - 40 °C
SECURITY
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Security algorithms supported	64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Number of SSID supported	8
MAC address filtering	Y
System status alarm	Y
System status alarm	Yes
Service Set Identifier (SSID) features	Hidden SSID
Access Control List (ACL)	Y
Number of SSID support	8
System status alarm	Y
Service Set Identifier (SSID) features	Hidden SSID
SOFTWARE
Access Control List (ACL)	Y
TECHNICAL DETAILS
Height	29.5 mm
Receiver sensitivity	300M: -71dBm@10% PER\n150M: -75dBm@10% PER\n54M: -78dBm@10% PER\n11M: -93dBm@8% PER\n6M: -92dBm@10% PER\n1M: -96dBm@8% PER
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Height	29.5 mm
Width	172.3 mm
Depth	189.4 mm
Height	29.5 mm
Width	172.3 mm
Depth	189.4 mm
WIRELESS LAN FEATURES
Antenna type	Internal
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	4 dBi
Antennas quantity	2

Target Components

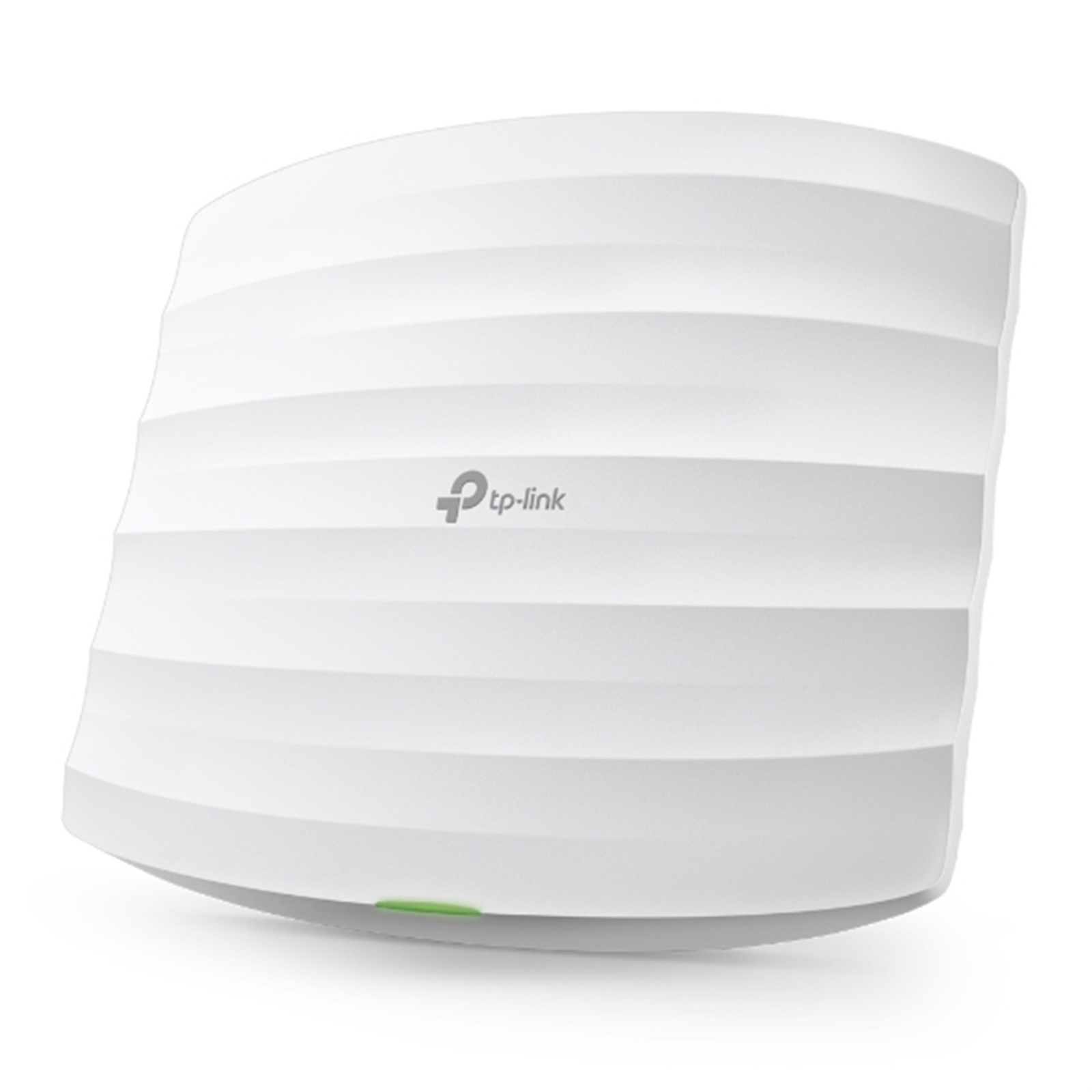

TP-Link Omada EAP115 HD 300Mbps Wireless N Ceiling Mount Access Point
