Target Components

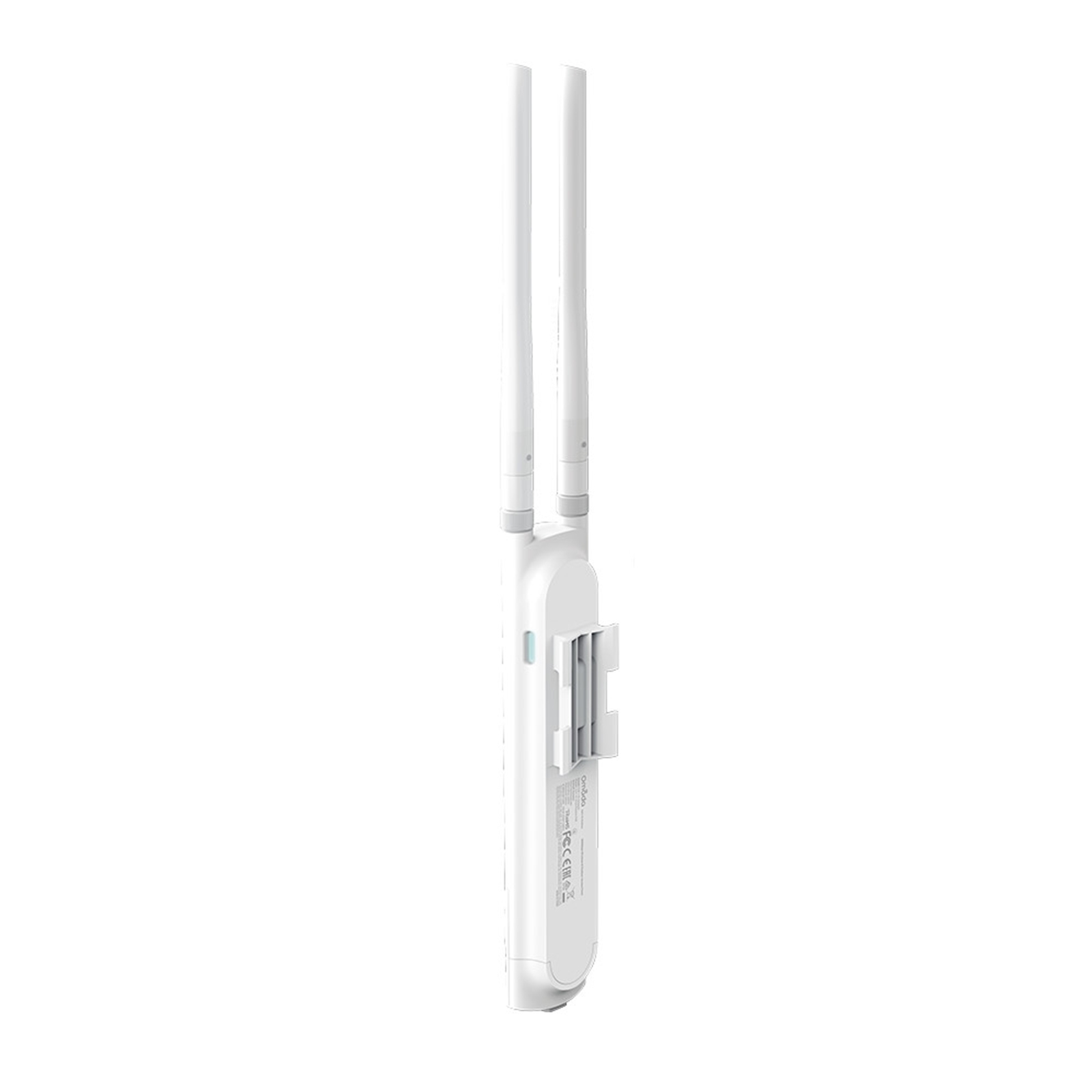

300Mbps Wireless N Outdoor Access Point

Key Features
Built for outdoor Wi-Fi applications
Up to 300Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable, weatherproof enclosure to withstand fair and foul weather
Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Cloud centralized management and Omada app for ultra convenience and easy management
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Supports management vlan for an enhanced network management

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Hospitality
TP-Link Omada allows hotels to build reliable WiFi networks. Hotel WiFi network solutions including network topology, design, features, installation, and products are introduced.
Full WiFi coverage and wired connections
Flexible guest control
Seamless roaming

Education
Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools with a few APs up to colleges and universities with hundreds of APs.
Easy management
High-density WiFi
Full WiFi coverage and wired connections

Outdoor WiFi
TP-Link Omada outdoor Wi-Fi access points offer smooth outdoor Wi-Fi experience for outdoor events, Wi-Fi outside home, or in the garden, yard, outdoor swimming pool, outdoor café, outdoor barns and shed. With Omada outdoor Wi-Fi extenders, the outdoor Wi-Fi system is ideal for wirelessly connecting outdoor camera and outdoor speakers.
Long Outdoor WiFi Range
Outdoor WiFi for Camera and Outdoor Events, and Wi-Fi Outside Home
Ideal for Outdoor WiFi in Garden, Outdoor Swimming Pool, and Outdoor Café.

Specifications

HARDWARE FEATURES

Interface
Fast Ethernet (RJ-45) Port *1(Support Passive PoE)

Button
Reset

Power Supply
24VDC / 0.6A Passive PoE Supply

Power Consumption
3.12 W

Dimensions ( W x D x H )
8.5 x 1.8 x 1.1 in. (216 x 46 x 27 mm)

Antenna Type
2*3dBi External Omni waterproof

Weatherproof Enclosure
IP65

Mounting
Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity
100+

Wireless Standards
IEEE 802.11n/g/b

Frequency
2.4GHz

Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Transmit Power
CE:
=20dBm (EIRP)
FCC:
=22dBm

Wireless Functions
Multiple SSIDs(Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

MANAGEMENT

Omada App
Yes

Auranet Controller Software
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes. Requiring the use of OC300, OC200, or Omada Software Controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
Yes

System Logging Local/Remote Syslog
Yes

Telnet
Yes

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

OTHERS

Certification
CE, FCC, RoHS

Package Contents
300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment
Operating Temperature: -30?~65? (-22?~149?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
