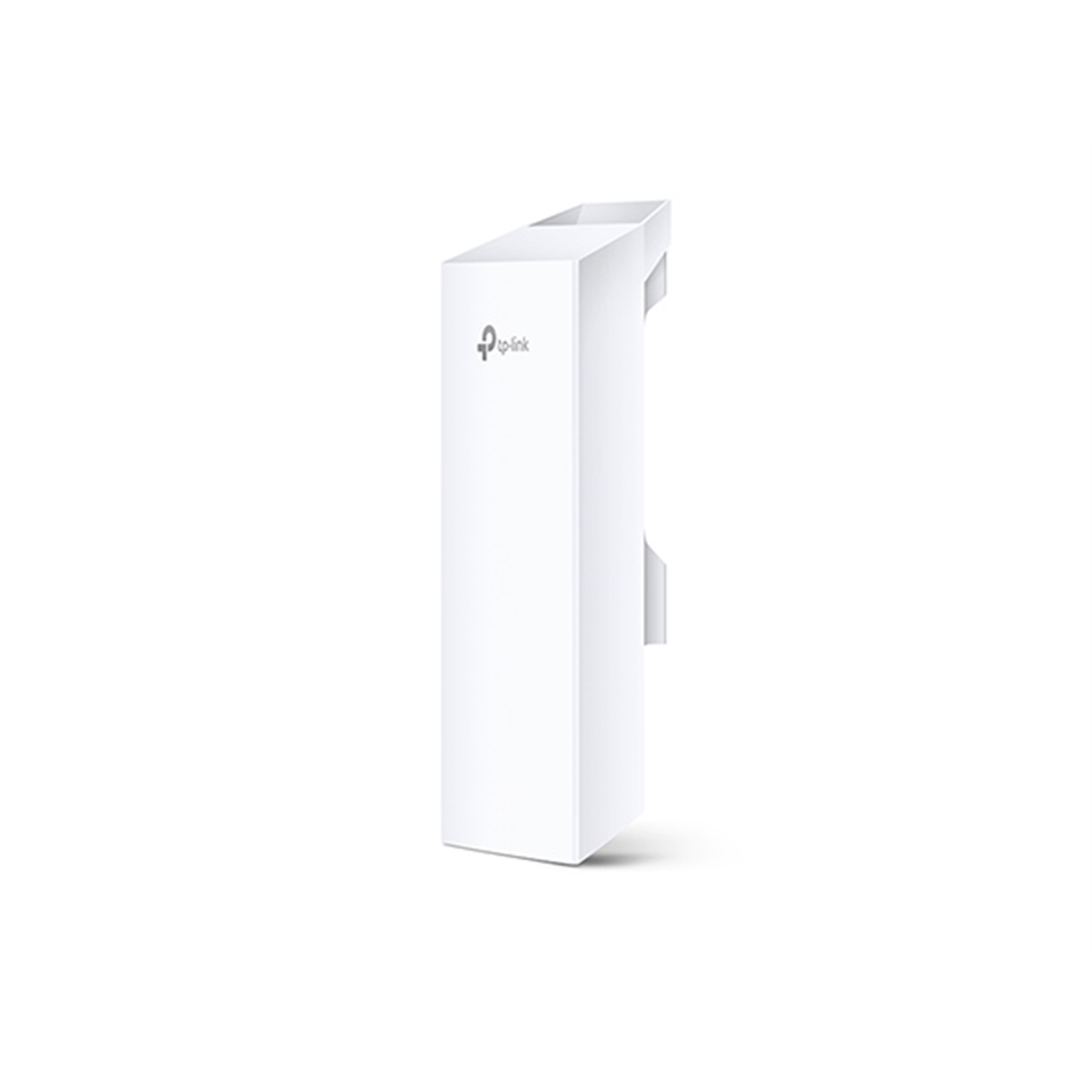

5GHz 300Mbps 13dBi Outdoor CPE
Key Features
Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 26dBm/200mw
System-level optimizations for more than 15km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
TP-LINK's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
5GHz 300Mbps 13dBi Outdoor CPE CPE510
Built-in 13dBi Dual-polarized Directional Antenna
6KV Lightning Protection
15KV ESD Protection
AP / Client / AP Router /
AP Client Router (WISP) operation modes
Weather Proof Enclosure
Passive PoE Adapter
Specifications
Processor
Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory
64MB DDR2 RAM, 8MB Flash
Interface
1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in
Antenna Type
Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection
15KV ESD Protection
6KV Lightning Protection
Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
Wireless Standards
IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Certification
FCC, RoHS, IPX5
Package Contents
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements
Google Chrome, Safari, and Firefox browsers for web GUI management
Environment
Operating Temperature: -30C~70C (-22F~158F)
Storage Temperature: -40?~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Warranty:
3 Years Return to Base Warranty.
ANTENNA
|
Antenna gain level (max) |
13 dBi |
Antennas quantity |
1 |
Antenna features |
Integrated antenna |
DESIGN
|
Internal |
No |
Certification |
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
RoHS |
LED indicators |
Yes |
Product colour |
White |
Reset button |
Yes |
ENERGY MANAGEMENT
|
Power consumption (typical) |
13 W |
Power over Ethernet (PoE) |
Yes |
Input current |
0.8 A |
AC input frequency |
50 - 60 Hz |
AC input voltage |
100 - 240 V |
FEATURES
|
Maximum data transfer rate |
300 Mbit/s |
Receiver sensitivity |
802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
Bandwidth |
5 GHz |
Frequency band |
5.15 - 5.85 GHz |
Networking standards |
IEEE 802.11a, IEEE 802.11n |
Wi-Fi data rate (max) |
300 Mbit/s |
Ethernet LAN data rates |
10,100 Mbit/s |
Maximum outdoor range |
15000 m |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Management platform |
Pharos Control |
Web-based management |
Yes |
OPERATIONAL CONDITIONS
|
Operating relative humidity (H-H) |
10 - 90% |
Storage temperature (T-T) |
-40 - 70 °C |
Operating temperature (T-T) |
-30 - 70 °C |
Storage relative humidity (H-H) |
5 - 95% |
PACKAGING CONTENT
|
Cables included |
AC |
PACKAGING DATA
|
Cables included |
AC |
PERFORMANCE
|
Internal memory |
64 MB |
Flash memory |
8 MB |
Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
Built-in processor |
Yes |
PORTS & INTERFACES
|
WAN connection |
Ethernet (RJ-45) |
Ethernet LAN (RJ-45) ports |
1 |
PROTOCOLS
|
Management protocols |
TDMA |
SECURITY
|
Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
MAC address filtering |
Yes |
TECHNICAL DETAILS
|
Harmonized System (HS) code |
85176990 |
WEIGHT & DIMENSIONS
|
Height |
60 mm |
Width |
224 mm |
Depth |
75 mm |
