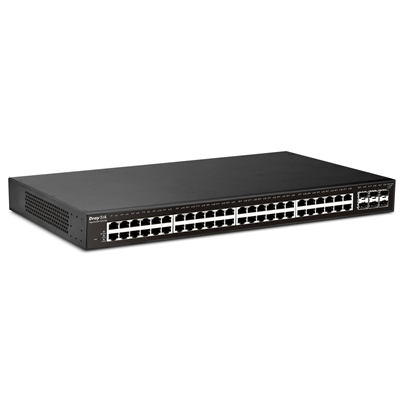

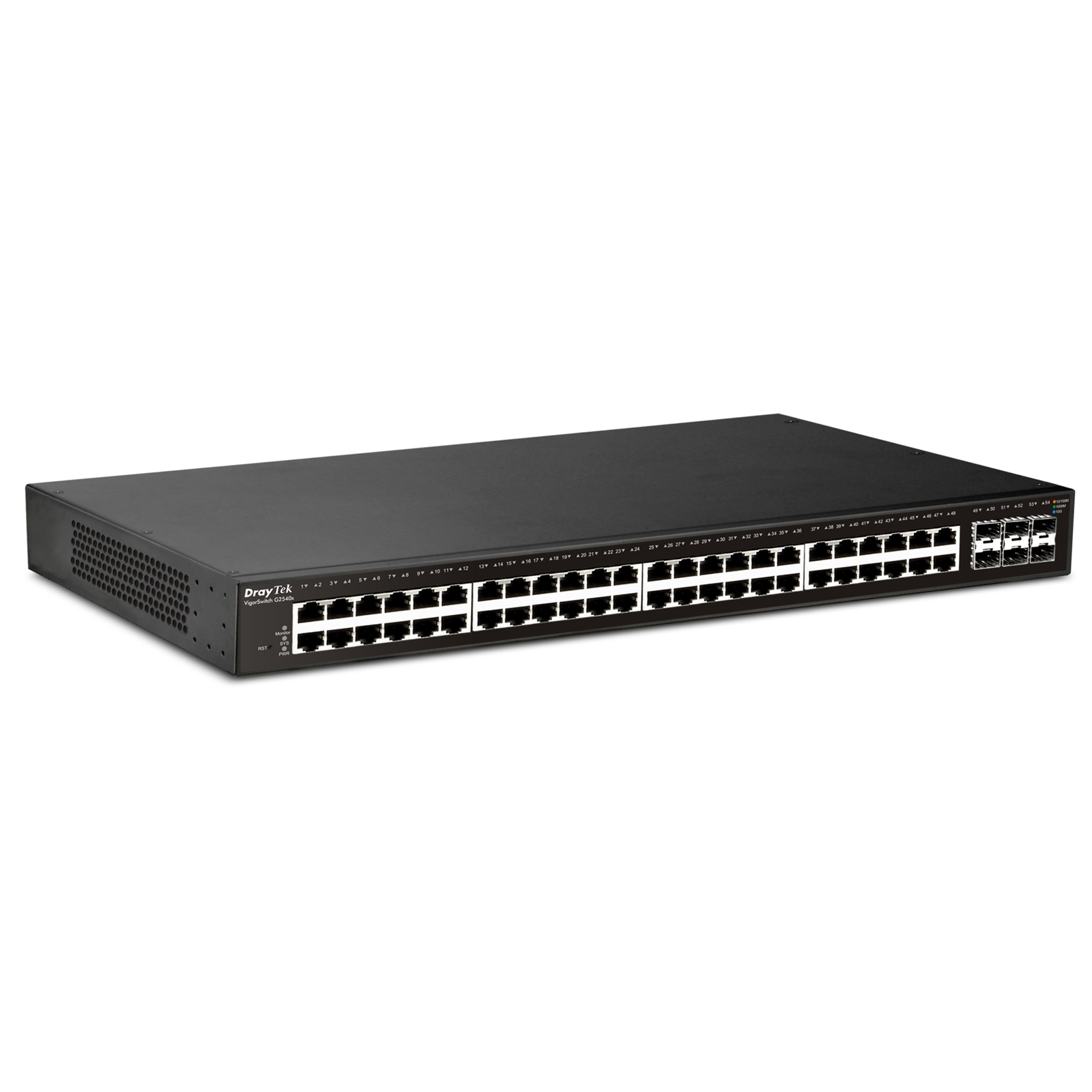

VigorSwitch G2540xs
10GbE Gigabit Switch with 48 Gigabit Ports & 6 10GbE SFP+ Uplink Ports
VigorSwitch G2540xs is a 54 port Gigabit L2+ Managed switch with a plethora of management options and enterprise-level features to improve network stability and security for businesses.

Use the 4 switchable SFP/RJ-45 ports and 2 dedicated SFP module slots to link with additional switches using link aggregation, or plug in a suitable SFP module to use optical Fibre as an Ethernet uplink.

Designed for centralised management, the VigorSwitch G2540xs can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

High Speed 10 Gigabit SFP+ Uplinks
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Hardware Monitoring
It monitors and controls the switch's temperature and operating voltages. Email notification alerts integrated for power loss, downtime or configuration changes.

IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
