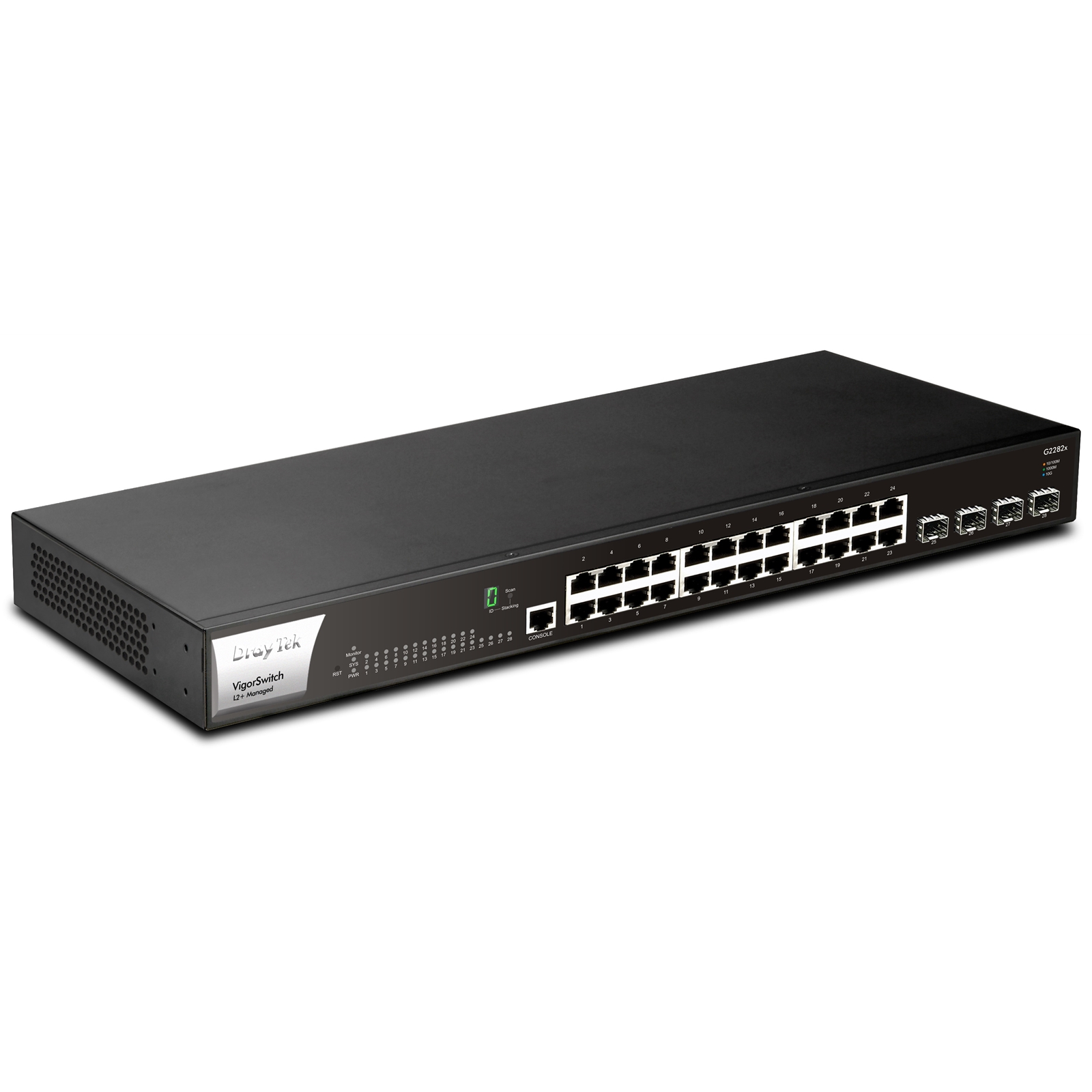

DrayTek VigorSwitch G2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch G2282x also provide a DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.

Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.

Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch G2282x to route the inter-VLAN traffic directly and offload the router.

Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Access Control
VigorSwitch G2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

Improving LAN Network Sustainability and Efficiency, with or without a Router
In a large LAN network, much traffic doesn't go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.

L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.

As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
