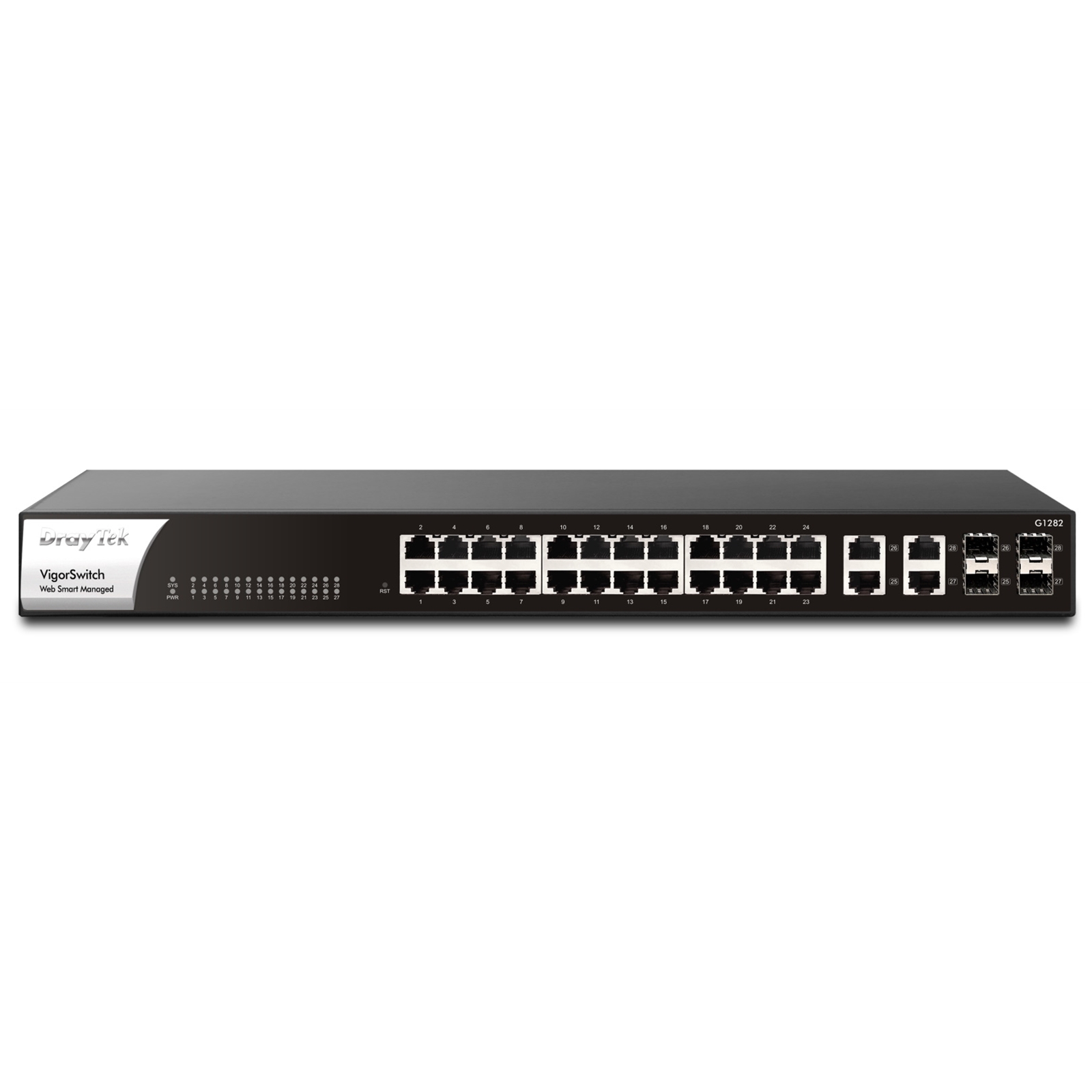

VigorSwitch G1282
Smart Managed Gigabit Switch with 24 Gigabit Ports & 4 SFP Ports
The VigorSwitch G1282 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.

Designed for centralised management, the VigorSwitch G1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router's Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.

Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.

Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.

IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.

Rack Mountable & Silent
Fit the VigorSwitch G1282 with the included rack mounting kit into any standard 19? rack.

The switch is fanless and silent, ideal for use in a quiet office environment.

Manufacturer's Website:

www.draytek.co.uk

Warranty:

Manufacturers Warranty - For further details please visit the manufacturers website.

DATA TRANSMISSION
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Y
Forwarding rate	41.7 Mpps
Packet buffer memory	4.1 MB
Jumbo frames	9000
DESIGN
Rack mounting	Y
Form factor	1U
Product colour	Black
Reset button	Y
ENERGY MANAGEMENT
Power source	AC
AC input voltage	100 - 240 V
Power consumption (max)	36 W
Power supply included	Y
MANAGEMENT FEATURES
Quality of Service (QoS) support	Y
Web-based management	Y
Switch type	Managed
ARP inspection	Y
Configuring Location Settings (CLI)	Y
Cloud-managed	Y
MULTICAST FEATURES
Multicast support	Y
NETWORKING
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring	Y
Ethernet LAN data rates	1000 Mbit/s
Spanning tree protocol	Y
VLAN support	Y
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
MAC address auto-learning supported	Y
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Voice VLAN
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
PACKAGING DATA
Cables included	LAN (RJ-45)
Quick start guide	Y
Rack mount kit	Y
PERFORMANCE
Fanless	N
PORTS & INTERFACES
Combo SFP ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	N
SECURITY
Access Control List (ACL)	Y
IGMP snooping	Y
DHCP features	DHCP client
WEIGHT & DIMENSIONS
Weight	2.8 kg
Height	44 mm
Width	441 mm
Depth	206 mm
