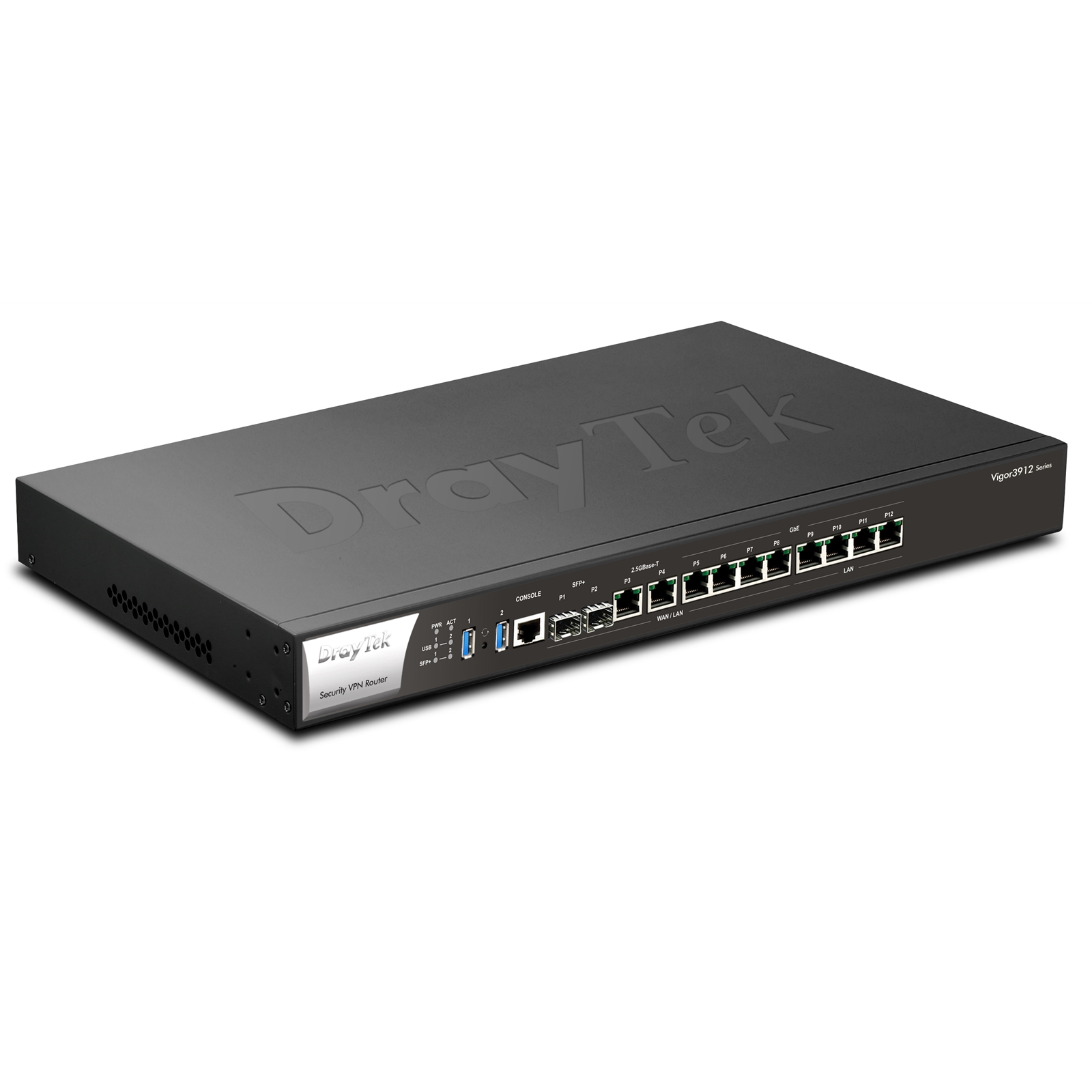

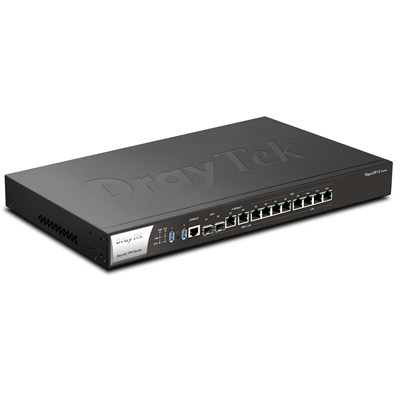

The Vigor 3912 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.

Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.

With up to 12Gb/s of NAT & Firewall throughput, the Vigor 3912 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3912 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.

Based on the familiar DrayOS platform, the Vigor 3912 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set.

For multi-tenant or departmental flexibility, the Vigor 3912 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.

Powerful Enterprise Internet Gateway
Featuring a Quad-Core Processor, the Vigor 3912 readily meets the needs of demanding networks, with improved total maximum NAT throughput of over 12Gb/s delivered through its 10GbE & 2.5GbE ports.

High-Performance VPN Concentrator
Protect inter-office communication with securely encrypted Virtual Private Network tunnels, maintaining 5Gb/s IPsec throughput and supporting 500 simultaneous VPN links.

Flexible WAN Architecture
Spread the load across up to 8 WAN links with Load Balancing. Policy-based Routing enables intelligent and flexible failover, for reliable and resilient connectivity.

Switchable WAN & LAN Ports
12 physical ports with 4 dedicated LAN ports and 8 switchable LAN or WAN ports. Allowing for up to 11 LAN ports in total, or Load Balancing up to 8 WAN connections.

High Availability
Provide hardware redundancy to mission critical applications with the installation of a second Vigor 3912. The backup autonomously resumes connections in the event of hardware failover.

Manage Multiple Networks
Create up to 100 VLANs, port-based or tag-based. Each fully configurable for NAT or Routing, sharing resources between networks or isolated from each other.
