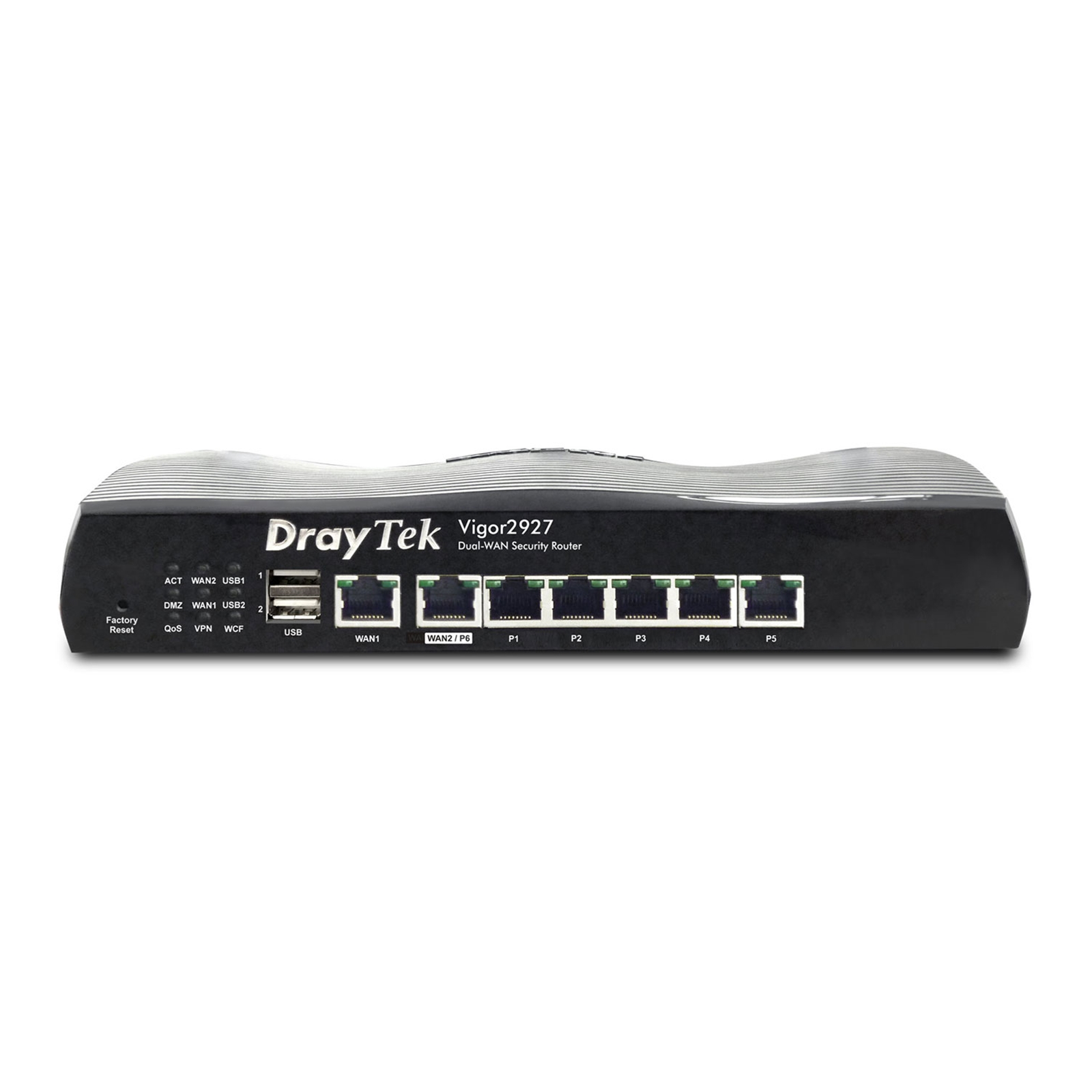

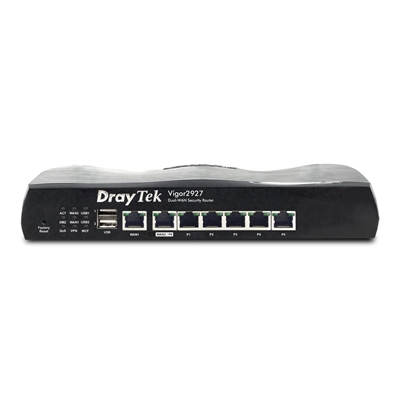

The DrayTek Vigor 2927 - Dual-WAN Load Balancing Firewall VPN router allows you to make the most of FTTP Fibre Broadband with Gigabit WAN throughput, extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.

The Ideal VPN Router for Small Business and Remote Working

Gigabit Dual-WAN Load Balancer

Make full use of Fibre Broadband with the Vigor 2927's Gigabit throughput per-WAN. Up to 1.8Gbps total combined throughput with Firewall, Content Filtering and Quality of Service.

Ideal VPN Router for SMB

Provide fast and secure VPN access, with up to 50 VPN tunnels. Enabling remote workers to access network resources and connecting remote sites. With DrayTek SSL VPN and OpenVPN support.

Hotspot Web Portal

Use DrayTek's Captive Portal solution to provide guest Internet access to wireless APs. Extensive options for customisation and authentication, with per-user Data & Time quotas.

5+1 Gigabit LAN Ports with VLANs

Attach Computers, Servers and Network Attached Storage directly, with up to 6 Gigabit LAN ports. Use VLANs to supply Broadband & VPN connectivity to as many as 8 separate networks.

Quality of Service with App QoS

Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.

Designed for Centralised Management

Configure and manage the Vigor 2927 series remotely through the VigorACS central management platform.

Manufacturer's Website:

www.draytek.co.uk

Warranty:

2 year repair warranty. End user to obtain RMA number from DrayTek support, who will then arrange repair via UK service centre. https://www.draytek.co.uk/support/techquery

DESIGN
Product colour	Black
ENERGY MANAGEMENT
Output voltage	12 V
AC input voltage	200 - 240 V
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Quality of Service (QoS) support	Yes
Reset button	Yes
MOBILE NETWORKING
Mobile network generation	Not supported
NETWORKING
Flow control support	Y
Flow control support	Yes
Multicast support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Forwarding rate	1800 Mpps
Traffic control	Yes
Throughput	1.8 Gbit/s
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating temperature range (T-T)	Yes
PACKAGING DATA
AC adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	6
USB version	2.0
USB ports quantity	1
PROTOCOLS
DHCP client	Yes
DHCP server	Yes
SECURITY
Security algorithms	HTTPS, SSH
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth DrayTek SSL VPN OpenVPN (Remote Dial-In User only) GRE over IPsec PPTP L2TP, L2TP over IPsec
VPN tunnels quantity	50
MAC address filtering	Yes
DoS attack prevention	Yes
Network address translation (NAT)	Yes
Firewall	Yes
Guest access	Yes
ARP attack prevention	Yes
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WAN CONNECTION
Ethernet WAN	Yes
3G/4G USB modem compatibility	Yes
WEIGHT & DIMENSIONS
Height	44 mm
Width	241 mm
Depth	165 mm
