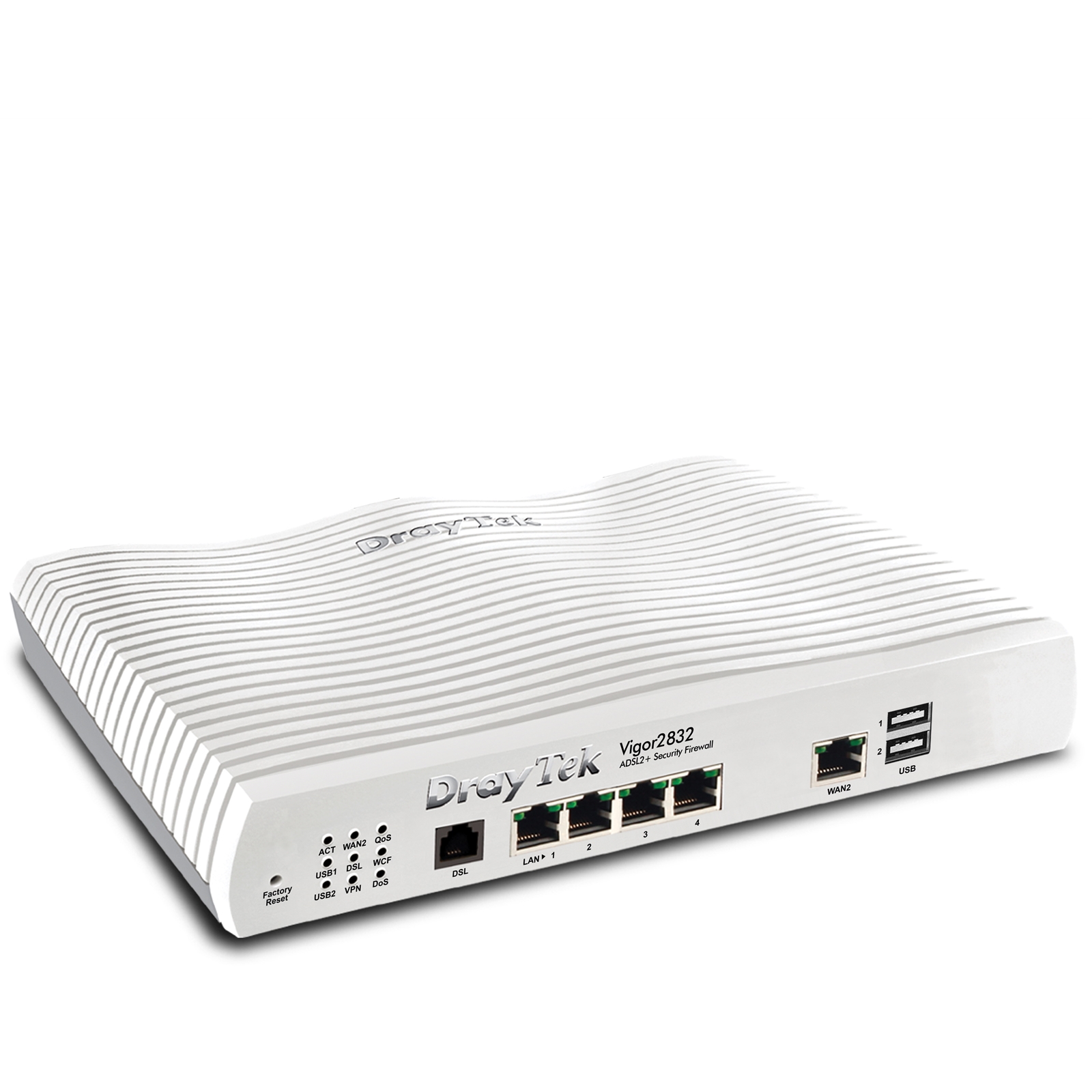

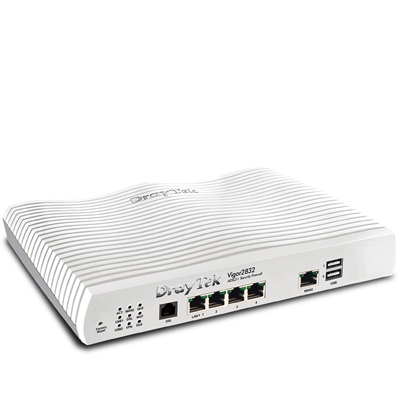

DrayTek V2832-K Vigor 2832 Wired Triple-WAN Firewall ADSL Modem Router with USB 3G/4G Modem Support

NPDRA-V2832
Key Specifications
CategoryWired Router
SpeedGigabit
POE EnabledNo
Manufacturer : DRAYTEK
EAN : 4719853559295
Manufacturer Part Code : V2832-K
Weight : 1.25 kg
Login For Pricing

Key Specifications
CategoryWired Router
SpeedGigabit
POE EnabledNo
Manufacturer :
DRAYTEK

EAN :
4719853559295

Manufacturer Part Code :
V2832-K

Weight :
1.25 kg
Recommended Products

4-WAN Simultaneous : ADSL, Ethernet and USB 3G/4G
Up to two 3G/4G/LTE USB modems can be used
IPv6 Ready
DrayTek Firewall with huge flexibility
Temperature Monitoring (optional Thermometer)
Wireless Guest Portal
Multiple Private LAN Subnets
SMS (Text Message) Alert via 3rd party server
VLANs (Port, 802.1q based & Wireless)
Supports DrayTek SmartMonitor software (30 users)
Content Filtering (by keyword, data type or category)
LDAP Integration for VPN and user access
QoS (Layer 2&3, 802.1p & TOS/DCSP)
Up to 32 VPN tunnels for LAN-to-LAN or teleworkers (PPTP/L2TP/IPsec)
Up to 10 SSL VPN Tunnels
VPN Trunk/Backup to remote sites
USB Port for Printer, Logs or 3G/4G Modem

The Vigor 2832 series (including the Vigor 2832n) is our new router/firewall for ADSL lines. Alternative WAN ports can insead provide connectivity to Ethenet feeds, secondary xDSL modems or a 3G/4G cellular service using a supported USB adaptor. This latest router series includes support for professional features such as VLAN tagging.

Packed with professional-level features, the Vigor 2832 series is compatible with all UK variants of ADSL (including ADSL2+ and Annex M) and the Vigor 2832 can also be used for cable-modem, leased line and EFM applications using its Gigabit Ethernet WAN port.

Manufacturer's Website:
www.draytek.co.uk
Warranty:
2 year repair warranty. End user to obtain RMA number from DrayTek support, who will then arrange repair via UK service centre. https://www.draytek.co.uk/support/techquery
ANTENNA
Antenna type External
Antennas quantity 2
Antenna design External
Antennas quantity 2
DESIGN
LED indicators LAN
Wall mountable Y
Product colour White
LED indicators LAN
LED indicators LAN, WLAN
Wall mountable Y
Colour of product White
Product type Tabletop router
Product type Tabletop router
DSL FEATURES
Internal modem Y
ADSL Y
ADSL2 Y
DSL WAN Y
ADSL Y
ADSL2 Y
ETHERNET LAN FEATURES
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ethernet WAN Y
MANAGEMENT FEATURES
Quality of Service (QoS) support Y
Web-based management Y
Reset button Y
Quality of Service (QoS) support Y
Web-based management Y
MOBILE NETWORKING
SIM card slot N
NETWORKING
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN Y
Networking standards IEEE 802.1Q
VPN support PPTP IPSec L2TP L2TP over IPSec DrayTek SSL
VPN tunnels quantity 32
Flow control support Y
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Y
Routing protocols RIP-2
Networking standards IEEE 802.1Q
VPN tunnels quantity 32
Flow control support Y
Dynamic DNS (DDNS) Y
Ethernet LAN interface type Gigabit Ethernet
Static route Y
SSID-based VLAN assignment Y
VPN Passthrough Y
Policy-based routing Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Network address translation (NAT) Y
Guest access Y
Dynamic DNS (DDNS) Y
Ethernet LAN interface type Gigabit Ethernet
Static route Y
SSID-based VLAN assignment Y
VPN Passthrough Y
Policy-based routing Y
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) Y
OTHER FEATURES
USB version 2.0
USB ports quantity 2
USB version 2.0
USB ports quantity 2
PERFORMANCE
Memory card slot(s) N
PORTS & INTERFACES
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 4
DC-in jack Y
RJ-11 ports quantity 1
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 4
DC-in jack Y
Memory card slot(s) N
USB port Y
RJ-11 ports quantity 1
Memory card slot(s) N
USB port Y
POWER
Power consumption (typical) 18 W
Output voltage 12 V
Power consumption (typical) 18 W
Output voltage 12 V
Power source type AC
AC input voltage 220 - 240 V
Power source type AC
AC input voltage 220 - 240 V
PROTOCOLS
Routing protocols RIP-2
DHCP client Y
DHCP server Y
Routing protocols RIP-2
DHCP client Y
DHCP server Y
SECURITY
Security algorithms 64-bit WEP, 128-bit WEP, WPA
Authentication method MD5, SHA-1, SHA-256
Firewall security CSM
Security algorithms 64-bit WEP,128-bit WEP,WPA
MAC address filtering Y
Authentication method MD5, SHA-1, SHA-256
Firewall security CSM
DMZ support Y
IP address filtering Y
DoS attack prevention Y
Network address translation (NAT) Y
VPN tunnels quantity 32
Firewall Y
URL filtering Y
Guest access Y
Filtering Y
MAC address filtering Y
IP address filtering Y
DoS attack prevention Y
Network address translation (NAT) Y
Firewall Y
URL filtering Y
Guest access Y
Filtering Y
WAN CONNECTION
DSL WAN Y
Ethernet WAN Y
SIM card slot N
3G/4G USB modem compatibility Y
DSL WAN Y
Ethernet WAN Y
SIM card slot N
3G/4G USB modem compatibility Y
WEIGHT & DIMENSIONS
Weight 530 g
Height 44 mm
Width 165.1 mm
Depth 241 mm
Height 44 mm
Width 165.1 mm
Depth 241 mm
WIRELESS LAN FEATURES
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi standards 802.11b,802.11g,Wi-Fi 4 (802.11n)
Wi-Fi band Single-band (2.4 GHz)
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Wi-Fi band Single-band (2.4 GHz)
Wi-Fi standard Wi-Fi 4 (802.11n)
