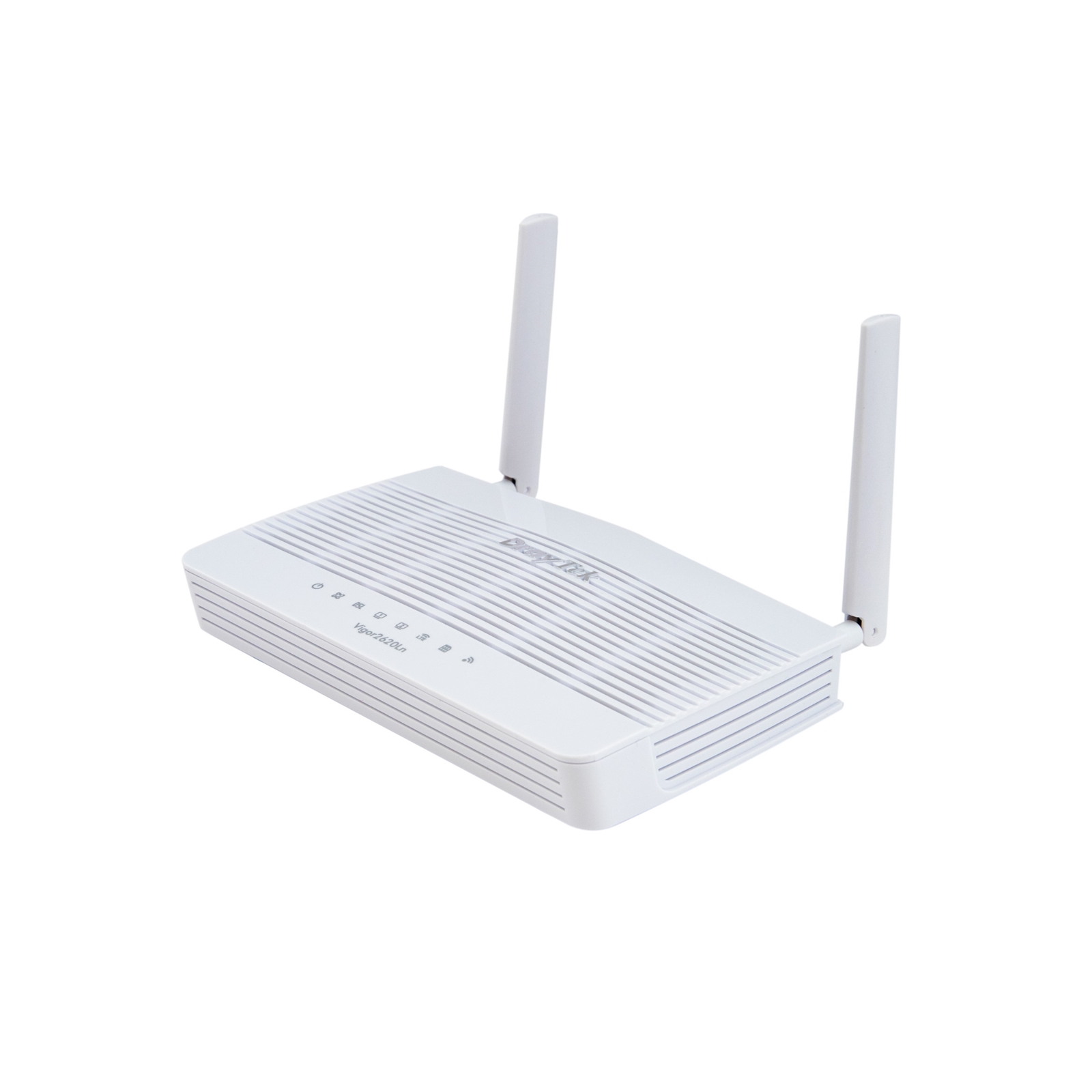

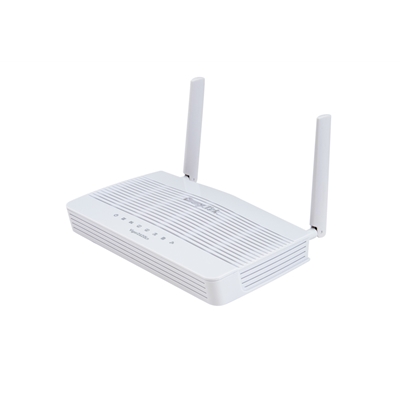

The Vigor 2620Ln is a low cost router/firewall with LTE/4G as the headline connection method. In addition, it can use any one of three methods for its primary WAN (Internet) connectivity, falling back to one of the others in case of service interruption. It has a Dual-SIM cellular (3G/4G/LTE) modem, VDSL2 / ADSL2+ modem (Phone Line Broadband) and Ethernet (RJ45 - which can connect to many other WAN delivery sources), the Vigor 2620Ln provides extreme flexibility to ensure a reliable connection
With the built-in 4G, the Vigor 2620Ln is ideal for mobile Internet connectivity, or locations which wish to use LTE as their primary connectivity method or temporary workplaces. You have the benefits of a DrayTek firewall, with optional web content filtering, shared by multiple users on wireless or wired connections to the unit. You slot regular (standard size) SIMs into the back of the vigor 2620Ln for use on any of the UK cellular networks or MVNOs (exc. Relish).
The Vigor 2620Ln then provides Internet access to your local clients and the VPN facility fires up automatically and can provide a secure VPN link back to your HQ, or channel all of your traffic through a compatible 3rd party VPN provider for added security.
Warranty:
2 year repair warranty. End user to obtain RMA number from DrayTek support, who will then arrange repair via UK service centre.
https://www.draytek.co.uk/support/techquery
DESIGN
|
Product colour |
White |
Colour of product |
White |
On/off switch |
Yes |
On/off switch |
Y |
DSL FEATURES
|
Internal modem |
Yes |
Internal modem |
Y |
ADSL |
Yes |
ADSL2 |
Yes |
ADSL2+ |
Yes |
VDSL |
Yes |
VDSL2 |
Yes |
DSL |
Yes |
ADSL |
Y |
ADSL2 |
Y |
ADSL2+ |
Y |
VDSL |
Y |
VDSL2 |
Y |
DSL |
Y |
ENERGY MANAGEMENT
|
Output voltage |
12 V |
Output current |
1 A |
Output voltage |
12 V |
Power source type |
DC |
Output current |
1 A |
Power source type |
DC |
ETHERNET LAN FEATURES
|
Ethernet LAN data transfer rates |
10,100,1000 Mbit/s |
LOGISTICS DATA
|
Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
Quality of Service (QoS) support |
Yes |
Web-based management |
Yes |
Reset button |
Yes |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Reset button |
Y |
MOBILE NETWORKING
|
4G bands supported |
800,900,1800,2100,2600 MHz |
4G standard |
LTE |
Mobile network generation |
4G |
3G |
Y |
4G bands supported |
800,900,1800,2100,2600 MHz |
4G |
Y |
4G standard |
LTE |
Mobile network generation |
3G, 4G |
NETWORKING
|
Internal modem |
Y |
Number of users |
30 user(s) |
Networking standards |
IEEE 802.1Q |
Multicast support |
Yes |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Number of users |
30 user(s) |
Networking standards |
IEEE 802.1Q |
VLAN support |
Yes |
Multicast support |
Y |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
VLAN support |
Y |
Network address translation (NAT) |
Y |
OPERATIONAL CONDITIONS
|
Operating relative humidity (H-H) |
10 - 90% |
Storage temperature (T-T) |
-25 - 70 °C |
Operating temperature (T-T) |
0 - 45 °C |
Operating relative humidity range |
10 - 90% |
Storage temperature range (T-T) |
-25 - 70 °C |
Operating temperature range (T-T) |
Yes |
PORTS & INTERFACES
|
Ethernet LAN (RJ-45) ports |
2 |
DC-in jack |
Yes |
Ethernet LAN (RJ-45) ports quantity |
2 |
DC-in jack |
Y |
PROTOCOLS
|
Routing protocols |
RIP-2 |
DHCP client |
Yes |
DHCP server |
Yes |
Routing protocols |
RIP-2 |
DHCP client |
Y |
DHCP server |
Y |
SECURITY
|
Security algorithms |
MD5, SHA-1, SHA-256 |
VPN tunnels quantity |
2 |
Security algorithms supported |
MD5,SHA-1,SHA-256 |
DoS attack prevention |
Yes |
Network address translation (NAT) |
Yes |
VPN tunnels quantity |
2 |
URL filtering |
Yes |
DoS attack prevention |
Y |
Network address translation (NAT) |
Y |
URL filtering |
Y |
TECHNICAL DETAILS
|
Colour of product |
White |
Harmonized System (HS) code |
85176990 |
On/off switch |
Y |
WAN CONNECTION
|
DSL WAN |
Yes |
Ethernet WAN |
Yes |
SIM card slot |
Yes |
3G/4G USB modem compatibility |
No |
DSL WAN |
Y |
Ethernet WAN |
Y |
SIM card slot |
Y |
3G/4G USB modem compatibility |
N |
WEIGHT & DIMENSIONS
|
Weight |
440 g |
Height |
39 mm |
Weight |
440 g |
Width |
131 mm |
Depth |
207 mm |
Height |
39 mm |
Width |
131 mm |
Depth |
207 mm |
