Target Components

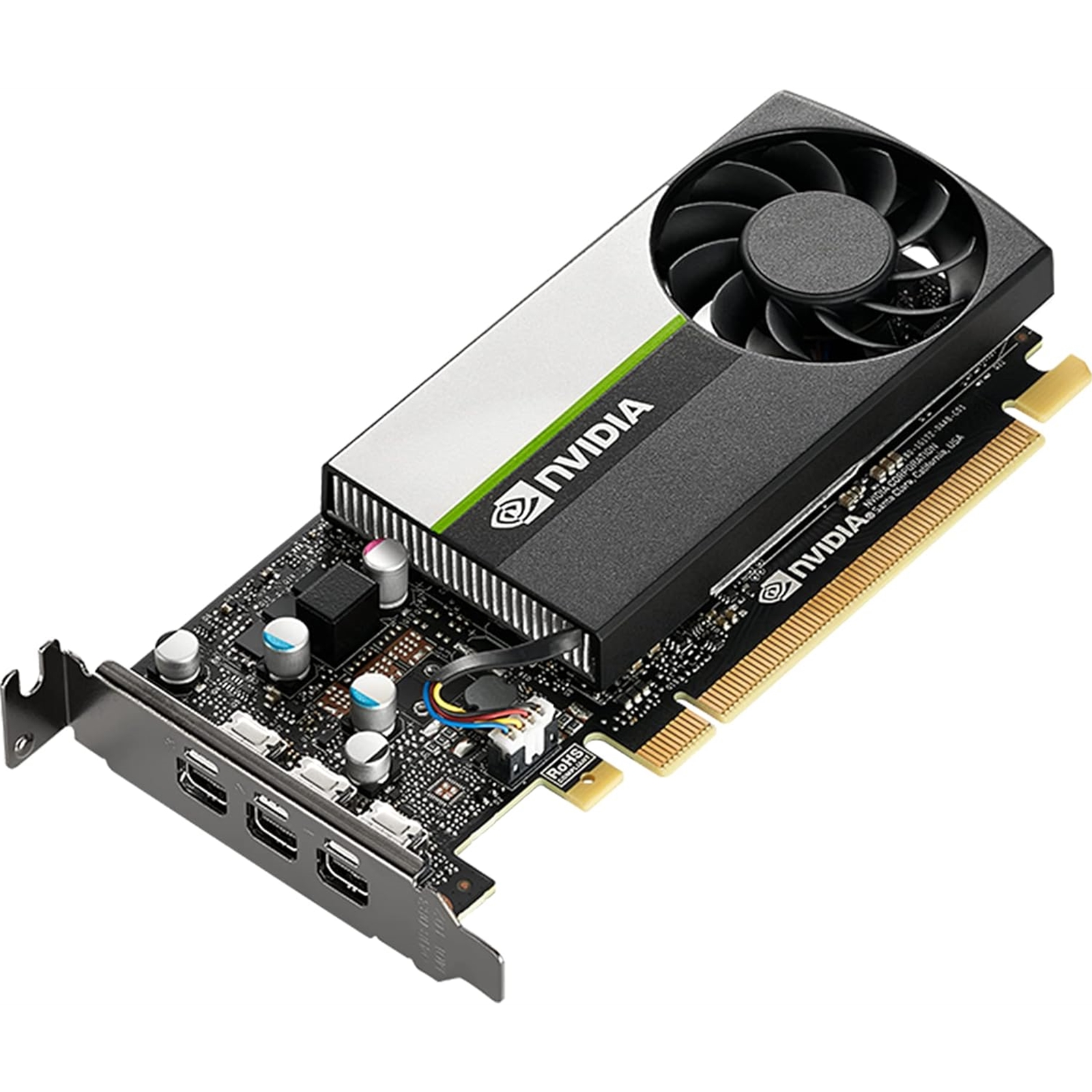

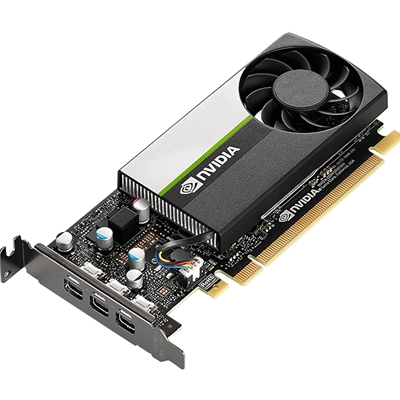

NVIDIA T400
NVIDIA GPUs power the world's most advanced desktop workstations, providing the visual computing power required by millions of professionals as part of their daily workflow. All phases of the professional workflow, from creating, editing, and viewing 2D and 3D models and video, to working with multiple applications across several displays, benefit from the power that only a discreet GPU solution can provide. NVIDIA entry level professional GPUs provide advanced features and performance far beyond what is available with integrated GPU solutions – all in a low-profile package, enabling deployment in a wide range of small form factor workstations. Step up to the power of an NVIDIA discreet professional GPU.
As part of the NVIDIA RTX family of professional GPUs, the NVIDIA T400 4GB provides the performance, features, reliability, and support that customers expect from NVIDIA enterprise solutions. As businesses look to lower the total cost of their computing solutions, while minimizing impacts to productivity, NVIDIA T400 4GB provides them with a robust, cost effective solution that helps them stay within budget, while providing better performance than integrated graphics.

Turing GPU Architecture
Based on state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 384 CUDA cores, the NVIDIA T400 GPU is an efficient low-profile single slot professional solution for CAD, DCC, financial service industry (FSI) and visualization professionals in general looking to reach great performance in a compact form factor. The Turing GPU architecture enables the biggest leap in computer real-time graphics rendering since NVIDIA's invention of programmable shaders in 2001.

Advanced Shading Technologies
The Turing GPU architecture features the following new advanced shader technologies.

Advanced Streaming Multiprocessor (SM) Architecture
Combined shared memory and L1 cache improve performance significantly, while simplifying programming and reducing the tuning required to attain best application performance. Each SM contains 96 KB of L1 shared memory, which can be configured for various capabilities depending on compute or graphics workload. For compute cases, up to 64KB can be allocated to the L1 cache or shared memory, while graphics workload can allocate up to 48 KB for shared memory; 32 KB for L1 and 16KB for texture units. Combining the L1 data cache with the shared memory reduces latency and provide higher bandwidth.

Key Features
GPU Processor: NVIDIA T400
CUDA Cores: 384
GPU Memory: 4GB GDDR6
System Interface: PCI-Express 3.0 x16
3 x Mini-DisplayPort to DisplayPort adapter

Specifications

Chipset Manufacturer
Nvidia

Interface
PCI Express 3.0

Graphics Chipset
Nvidia T400

Memory Size
4GB

Memory Type
DDR6

Memory Interface
64-Bit

CUDA Cores / Stream Processors
384 CUDA Cores

Outputs
3 x Mini DisplayPort
3 x mDP to DP adapters included

HDCP Support
Yes

Resolution
5120 x 2880 at 60 Hz

DirectX Support
DirectX 12

Multi-GPU Support
None

Max Display Support
3

Cooling
Active Fansink

PSU Requirements
Max Power Consumption: 30 W

Connectors Required
No

Slot Size
1 Slot

Accessories
Attached low-profile (SFF) bracket
Unattached full-height (ATX) bracket
NVIDIA Turing Quick Start Guide
NVIDIA Turing Support Guide
3x mDP to DisplayPort adapters
