Power and Performance in a Small Form Factor

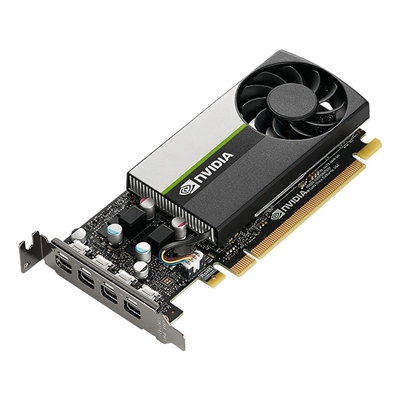

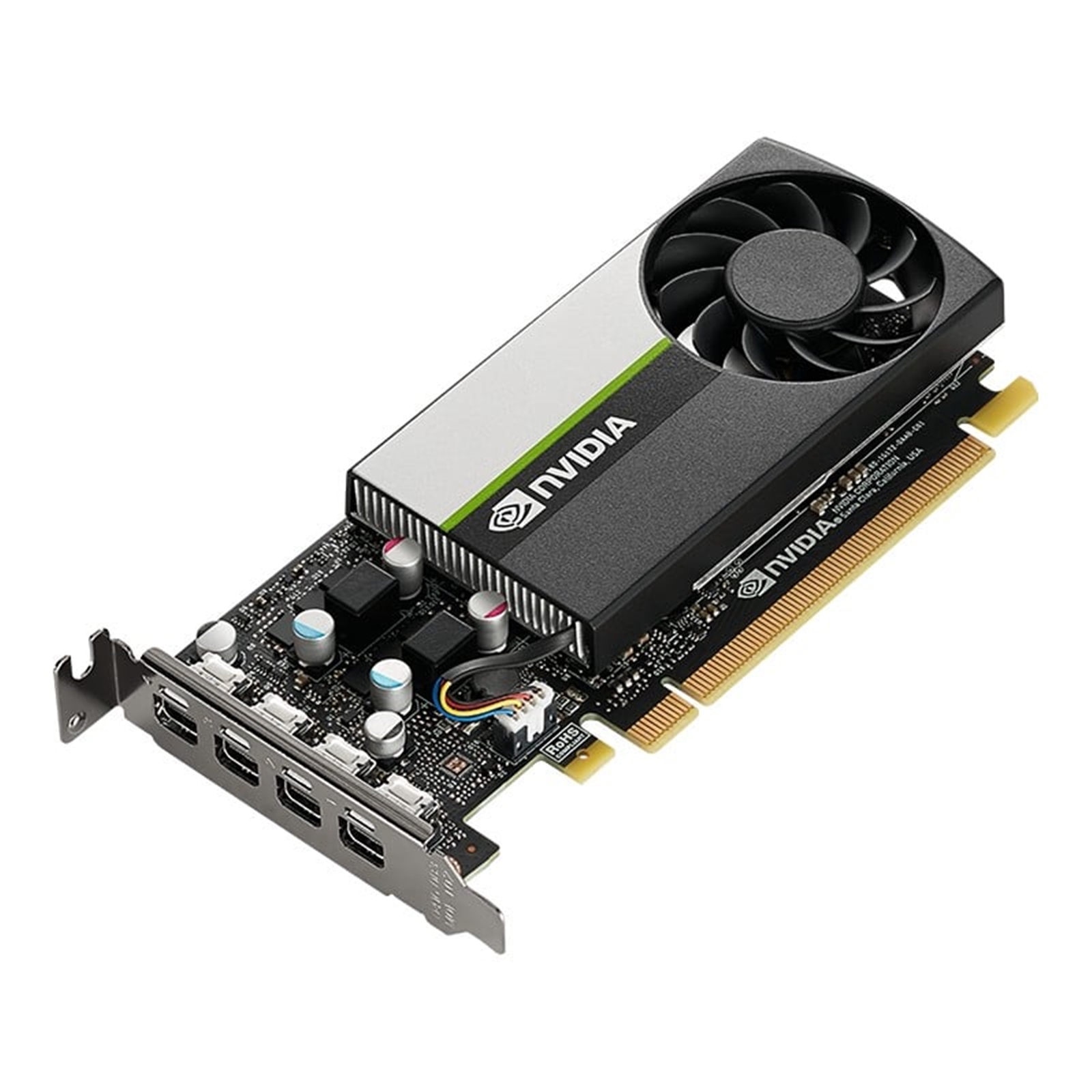

The NVIDIA T1000, built on the NVIDIA Turing GPU architecture, is a powerful, low profile solution that delivers the full-size features, performance and capabilities required by demanding professional applications in a compact graphics card. Featuring 896 CUDA cores and 4 or 8GB of GDDR6 memory, the T1000 enables professionals to tackle multi-app workflows, from 3D modelling to video editing. Support for up
to four 5K displays gives you the expansive visual workspace to view your work in stunning detail.

NVIDIA RTX professional graphics cards are certified with a broad range of professional applications, tested by leading independent software vendors (ISVs) and workstation manufacturers, and backed by a global team of support specialists. Get the peace of mind you need to focus on what matters most with the premier visual computing platform for mission-critical business.

Key Features
our Mini DisplayPort 1.4 connectors with latching mechanism.
DisplayPort with audio.
NVIDIA RTX Desktop Manager software.
NVIDIA RTX Experience.
NVIDIA Mosaic technology.
HDCP 2.2 support.

Specifications

PROCESSOR

CUDA
Yes

CUDA Cores
896

Graphics
NVIDIA

Graphics Processor
T1000

Maximum Resolution
7680 x 4320 pixels

Maximum Displays Per Videocard
4

Parallel Processing Technology Support
NVIDIA Turing

MEMORY
8GB

Graphics Card Memory Type
GDDR6

Memory Bus
128 bit

Memory Bandwidth (Max)
160 GB/s

PORTS & INTERFACES

Interface Type
PCI Express x16 3.0

DisplayPort Version
1.4a

Mini DisplayPorts Quantity
4

PERFORMANCE

TV Tuner Integrated
No

DirectX Version
12.0

Shader Model Version
5.1

OpenGL Version
4.5

HDCP Version
2.2

HDCP
Yes

Dual Link DVI
No

Video Formats Supported
H.264, HEVC

Warranty Period
3 year(s)

DESIGN

Cooling Type
Active

Number of Fans
1 fan(s)

Bracket Height
Low-Profile (LP)

Number of Slots
1

Illumination
No

Product Colour
Green, Grey

POWER

Power Consumption (Typical)
50 W

SYSTEM REQUIREMENTS

Windows Operating Systems Supported
Windows 10

Linux Operating Systems supported
Debian 7.0, Fedora 31, FreeBSD 11, SUSE Linux Enterprise Desktop 15, Solaris 11, Ubuntu 18.04 LTS

WEIGHT & DIMENSIONS

Width
155.9 mm

Height
68.9 mm
