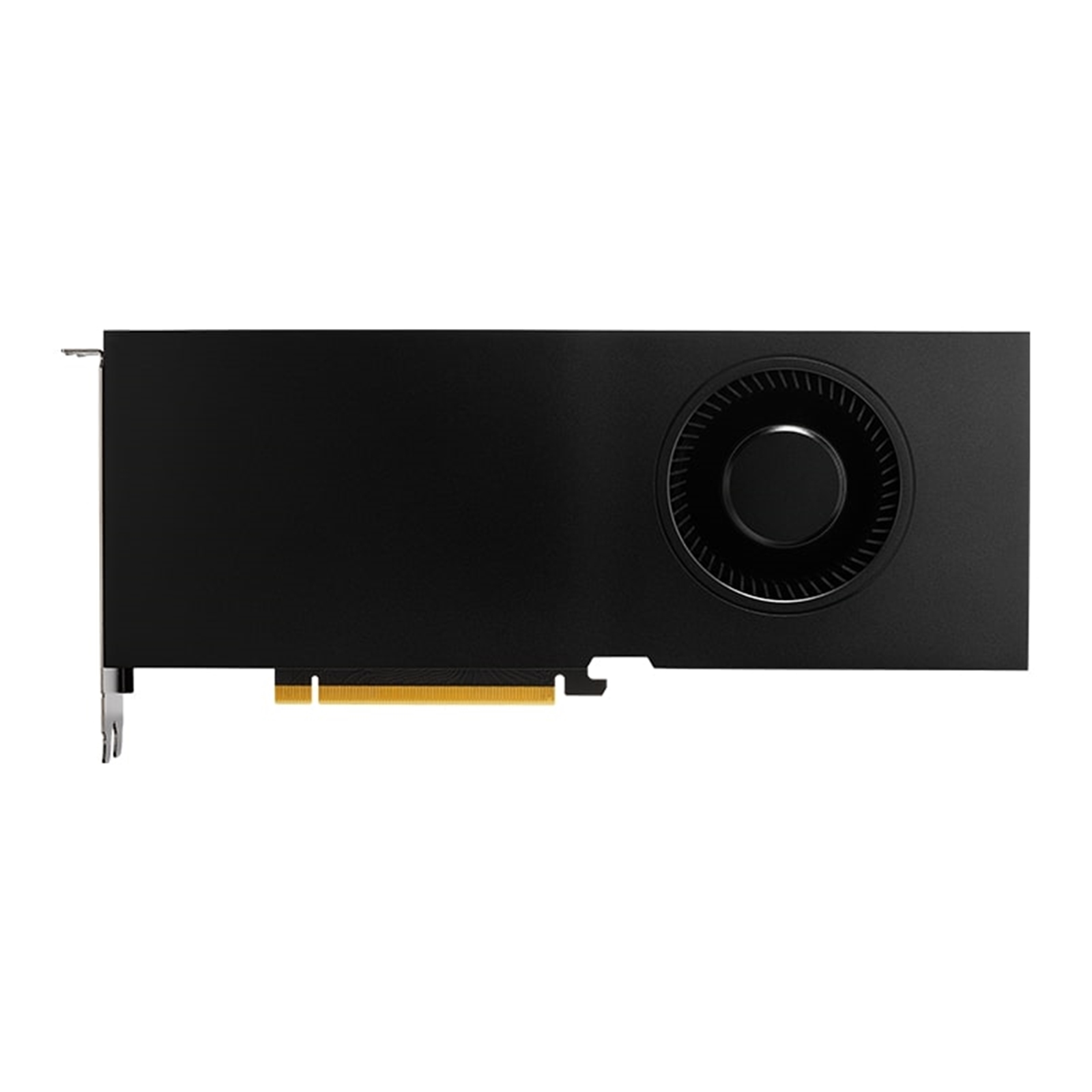

NVIDIA RTX A5000
Perfectly Balanced. Blazing Performance.
NVIDIA RTX technology transformed the way professionals work by bringing the power of real-time ray tracing, AI, and advanced graphics to millions of designers, artists, scientists, and researchers. Now, the NVIDIA Ampere architecture paves the way for a new era of innovative products, immersive entertainment, life-saving discoveries, and breathtaking designs—powered by the second generation of NVIDIA RTX.

Built on the NVIDIA Ampere architecture, the NVIDIA RTX A5000 perfectly balances power, performance, and memory to spearhead the future of innovation from your desktop. It combines 64 second-generation RT Cores, 256 third-generation Tensor Cores, and 8,192 CUDA cores with 24 GB of graphics memory to supercharge rendering, AI, graphics, and compute tasks. Connect two RTX A5000s for 48 GB of combined GPU memory with NVIDIA NVLink, unlocking the ability to work with larger models, renders and scenes, tackle memory-intensive tasks like natural language processing, and run higher-fidelity simulations to enhance your product development process. And support for NVIDIA virtual GPU software increases versatility for enterprise deployments. Realize your visions for the future today, with the NVIDIA RTX A5000.

Key Features
CUDA Cores - 8192
Tensor Cores - 256
RT Cores - 64
Single Precision Performance - 27.8 TFLOPS
RT Core Performance - 54.2 TFLOPS
Tensor Performance - 222.2 TFLOPS
GPU Memory - 24 GB GDDR6 with ECC
Memory Interface - 384-bit
Memory Bandwidth - 768 GB/sec
System Interface - PCI Express 4.0 x16
Display Connectors - 4x DisplayPort 1.4a
Maximum Power Consumption - 230 W

Specifications

Product,/b>
NVIDIA RTX A5000

Architecture
NVIDIA Ampere Architecture

Process Size
8nm

Transistors
28.3 Billion

Die Size
628.4 mm2

CUDA Cores
8192

Tensor Cores
256

RT Cores
64

Single Precision Performance
27.8 TFLOPS

RT Core Performance
54.2 TFLOPS

Tensor Performance
222.2 TFLOPS

GPU Memory
24 GB GDDR6 with ECC

Memory Interface
384-bit

Memory Bandwidth
768 GB/sec

Display Connectors
4x DisplayPort 1.4a

NVENC | NVDEC
1x | 2x (+ AV1 decode)

System Interface
PCI Express 4.0 x16

Form Factor
4.4 Inch H x 10.5 Inch L Dual Slot

Thermal Solution
Active Fansink

Maximum Power Consumption
230 W
NVIDIA Quadro and RTX Power Guidelines

Power Connector
1x 8-pin PCIe

Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support

vGPU Software Support
NVIDIA Virtual PC (vPC), NVIDIA Virtual Applications (vApps), NVIDIA RTX Virtual Workstation (vWS), NVIDIA Virtual Compute Server (vCS)

vGPU Profiles Supported
See vGPU Pricing and Licensing Guide

NVIDIA 3D Vision and 3D Vision Pro,/b>
Support via 3-pin mini DIN

Frame Lock
Compatible with NVIDIA Quadro Sync II

NVLink
2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A5000

NVLink Interconnect
112.5 GB/sec bidirectional
