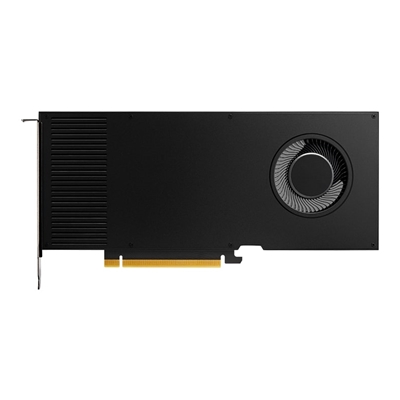

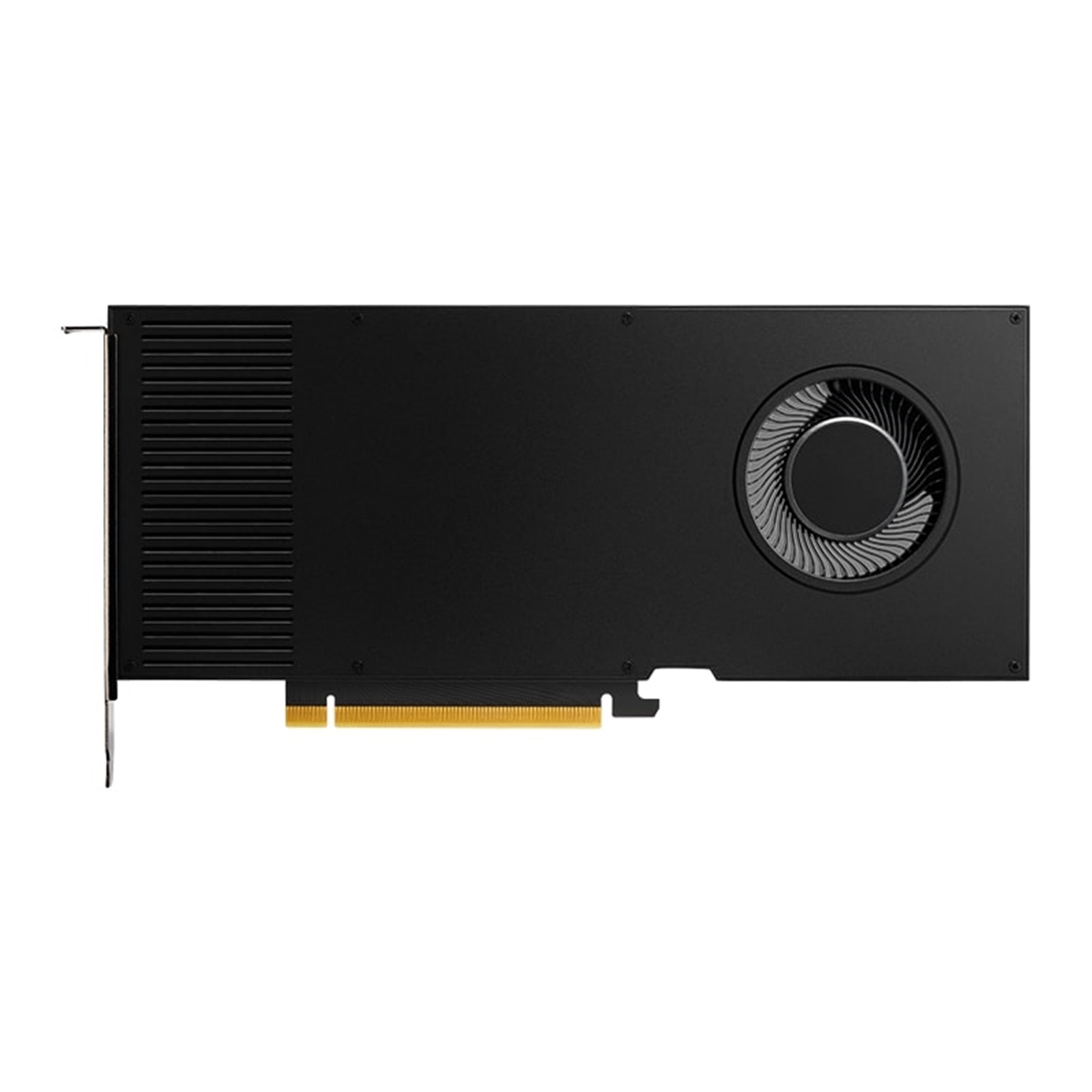

NVIDIA RTX A4000
Sleek Design. Powerful Performance.
The NVIDIA Ampere architecture builds on the power of NVIDIA RTX to deliver the next generation of accelerated visual computing. As millions of professionals continue to work from anywhere, they rely on a wide range of devices to deliver the power and performance they need to work effectively.

The NVIDIA RTX A4000 is the most powerful single-slot GPU for professionals, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics performance to your desktop. Built on the NVIDIA Ampere architecture, the NVIDIA RTX A4000 combines 48 second-generation RT Cores, 192 third-generation Tensor Cores, and 6144 CUDA cores with 16 GB of graphics memory. So you can engineer next-generation products, design cityscapes of the future, and create immersive entertainment experiences of tomorrow, today, from your desktop workstation. And with a power-efficient, single-slot PCIe form factor that fits into a wide range of workstation chassis, you can do exceptional work without limits.

Key Features
CUDA Cores - 6144
Tensor Cores - 192
RT Cores - 48
Single Precision Performance - 19.2 TFLOPS
RT Core Performance - 37.4 TFLOPS
Tensor Performance - 153.4 TFLOPS
GPU Memory - 16 GB GDDR6 with ECC
Memory Interface - 256-bit
Memory Bandwidth - 448 GB/sec
System Interface - PCI Express 4.0 x16
Display Connectors - 4x DisplayPort 1.4a
Maximum Power Consumption - 140 W

Specifications

Architecture
NVIDIA Ampere Architecture

Process Size
8nm

Transistors
17.4 Billion

Die Size
392.5 mm2

CUDA Cores
6144

Tensor Cores
192

RT Cores
48

Single Precision Performance
19.2 TFLOPS

RT Core Performance
37.4 TFLOPS

Tensor Performance
153.4 TFLOPS

GPU Memory
16 GB GDDR6 with ECC

Memory Interface
256-bit

Memory Bandwidth
448 GB/sec

Display Connectors
4x DisplayPort 1.4a

NVENC | NVDEC
1x | 1x (+ AV1 decode)

System Interface
PCI Express 4.0 x16

Form Factor
4.4 inch H x 9.5 inch L Single Slot

Thermal Solution
Active Fansink

Maximum Power Consumption
140 W
NVIDIA Quadro and RTX Power Guidelines

Power Connector
1x 6-pin PCIe

Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support

NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN

Frame Lock
Optional NVIDIA Quadro Sync II
