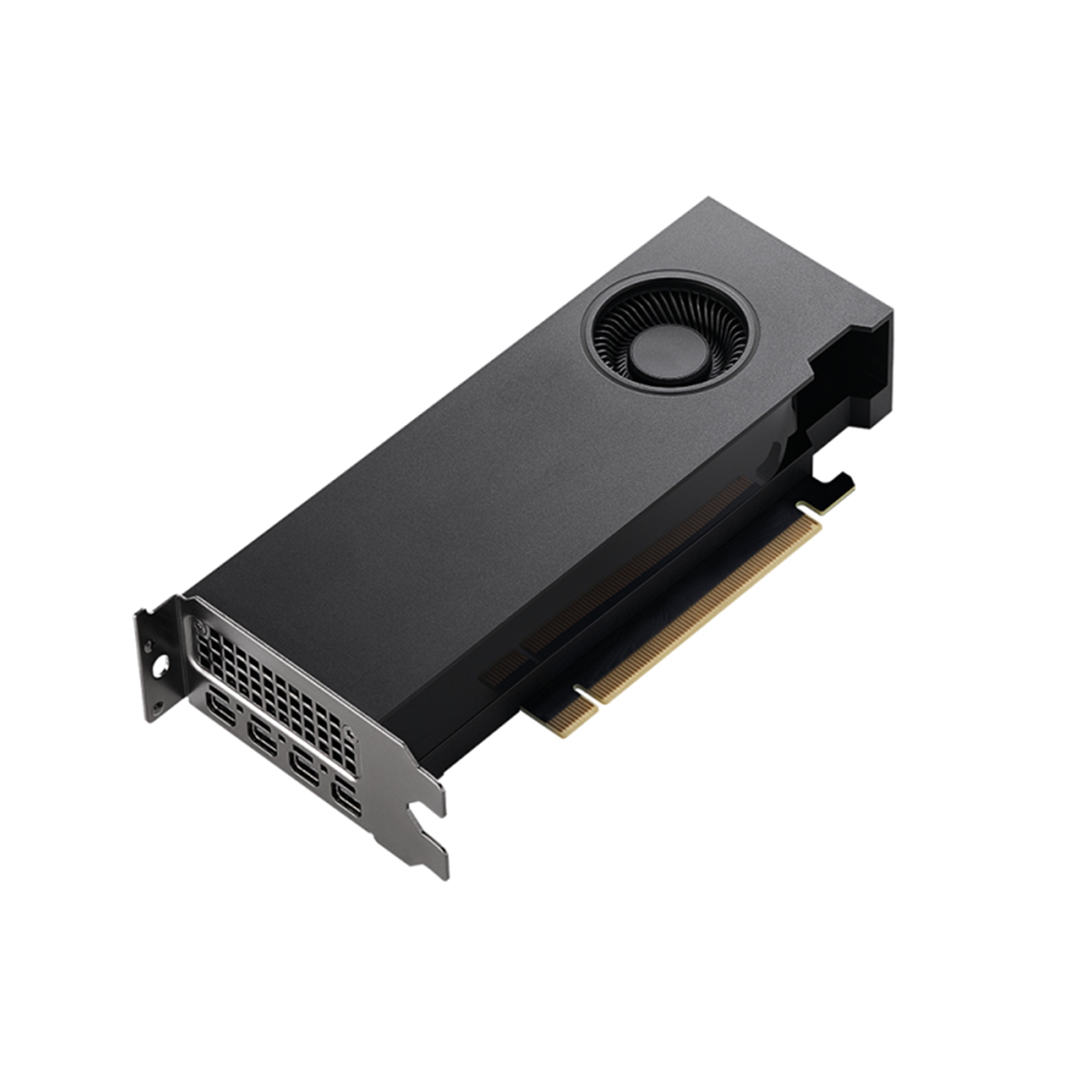

NVIDIA RTX A2000 12GB
Compact Design. Unmatched Performance.
NVIDIA RTX A2000 12GB brings the power of RTX to more professionals with a powerful low-profile, dual-slot GPU design, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics to your desktop. The VR ready RTX A2000 12GB combines 26 second-generation RT Cores, 104 third-generation Tensor Cores, and 3,328 next-generation CUDA Cores and 12GB of GDDR6 graphics memory with error correction code (ECC) support, another industry first in this segment. Design bigger, render faster, work better, at previously unheard of price points with the NVIDIA RTX A2000 12GB.

With the introduction of the NVIDIA Ampere architecture, The next generation of NVIDIA RTX became available to millions of professionals. Featuring enhanced real-time ray tracing, accelerated AI, advanced graphics, and compute capabilities, the NVIDIA Ampere architecture gives artists, designers, engineers, and scientists the power to create tomorrow, today. With the overwhelming adoption of RTX technology, professionals are empowered to design, build, and entertain like never before since over 70 of the world's leading design and creative applications are now accelerated by RTX technology.

Key Features
GPU Architecture - NVIDIA Ampere
CUDA Cores - 3328
Tensor Cores - 104
RT Cores - 26
Peak FP32 Performance - 8.0 TFLOPS
RT Core Performance - 15.6 TLOPS
Tensor Core Performance - 63.9 TFLOPS
GPU Memory - 12GB GDDR6 ECC
Memory Interface - 192-bit
Memory Bandwidth - 288 GB/s
Maximum Power Consumption - 70W
System Interface - PCI Express 4.0 x16
Display Connectors - 4x mDP
Form Factor - 2.713" H x 6.6" Dual Slot
Thermal Solution - Active Fansink

Specifications

Architecture
Ampere

Process Size
8nm | Samsung

Transistors
13.25 Billion

Die Size
276mm

CUDA Cores
3328

Tensor Cores
104

RT Cores
26

Peak FP32 Performance
8.0 TFLOPS

RT Core Performance
15.6 TLOPS

Tensor Core Performance
63.9 TFLOPS

GPU Memory
12GB GDDR6 with ECC

GPU Memory Clock
6001 MHz

Memory Inferface
192-bit

Memory Bandwidth
288 GB/s

Max Power Consumption
70 W

System Interface
PCI Express 4.0 x16

Display Connectors
4x mDP Latching

Form Factor
2.713 Inch H x 6.6 Inch Low Profile | Dual Slot

Thermal Solution
Active Fansink

Max Digital Resolution
2x 7680 x 4320 at 60 Hz

Max Displays
4

HDR Support
Yes

AR | VR | XR Ready
Yes

Quad Buffered Stereo
Yes

Hardware Accelerated BVH
Yes

NVIDIA DLSS
Yes

NVIDIA Mosaic, Warp and Blend
Yes

NVIDIA RTX Experience
Yes

NVIDIA RTX Desktop Manager
Yes

NVIDIA Broadcast Application
Yes

NVENC | NVDEC
1x H.264 and HVEC Encoders
1x Decode Engine
