Target Components

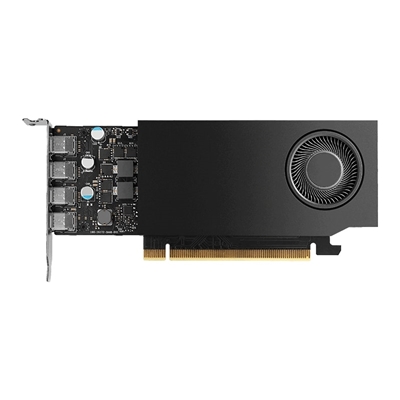

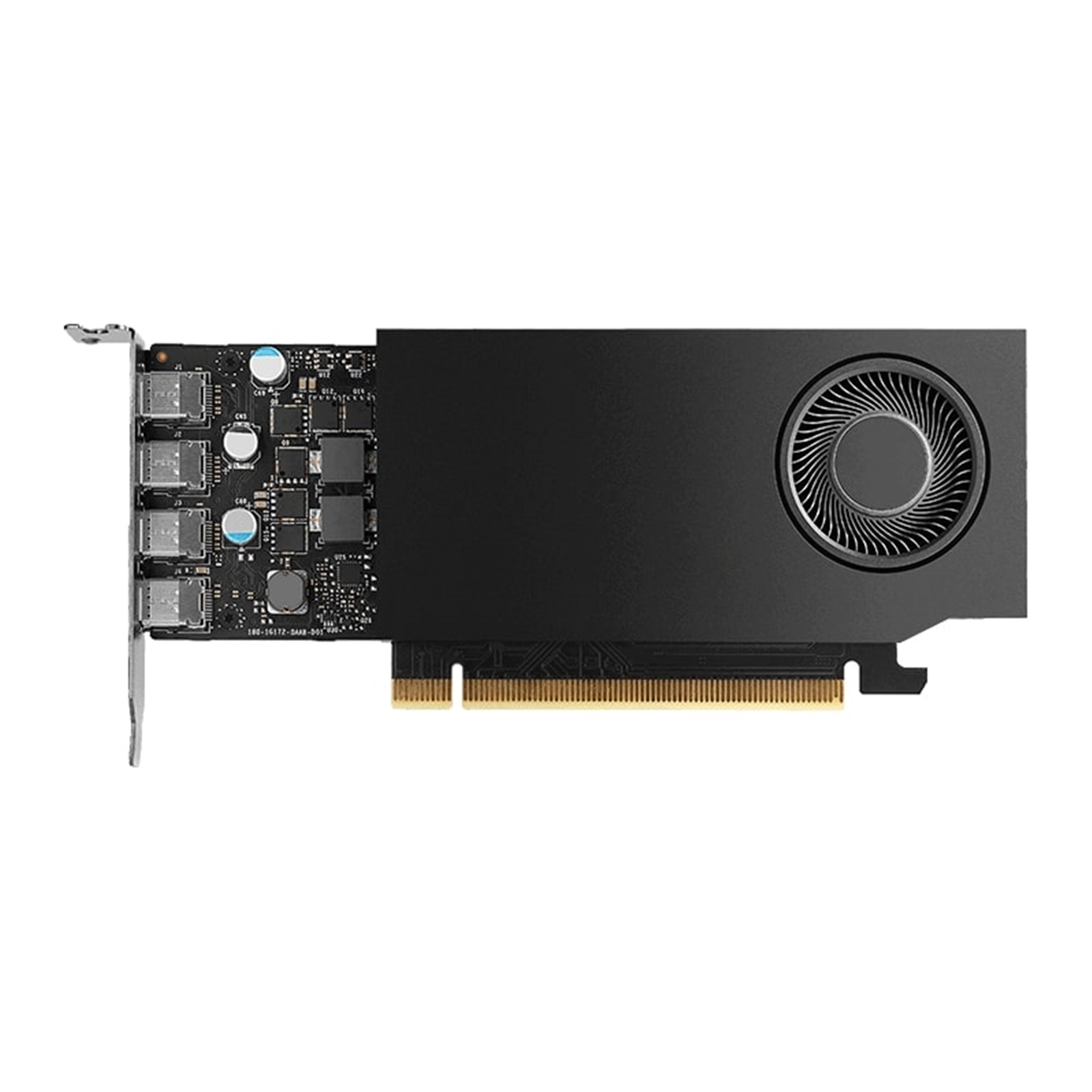

NVIDIA RTX A1000
Performance for endless possibilities.
Small-form-factor computing solutions are becoming more common as professionals look to minimize their desktop workstation footprint—without compromising performance. Today's professional workflows require small-form-factor workstations to provide full-size features and performance in a compact package.

Built on NVIDIA Ampere GPU architecture, the NVIDIA RTX A1000 GPU is a powerful, low-profile solution that delivers the performance and capabilities required by demanding professional applications. With 2,304 CUDA Cores, 18 RT Cores, 72 Tensor Cores, 8GB of GDDR6 memory, and the ability to drive up to four 5K displays, the NVIDIA RTX A1000 is ready to take your work to the next level.

Key Features
CUDA Cores - 2304
Tensor Cores - 72
RT Cores - 18
Single Precision Performance - 6.74 TFLOPS
RT Core Performance - 13.2 TFLOPS
Tensor Performance - 53.8 TFLOPS2
GPU Memory - 8 GB GDDR6
Memory Interface - 128-bit
Memory Bandwidth - 192 GB/secc
System Interface - PCI Express 4.0 x83
Display Connectors - 4x mDisplayPort 1.4a
Maximum Power Consumption - 50 W

Specifications

Product
NVIDIA RTX A1000

Architecture
NVIDIA Ampere Architecture

Process Size
8N | NVIDIA Custom Process

Transistors
8.7 Billion

Die Size
200 mm2

CUDA Cores
2307

Tensor Cores
72

RT Cores
18

Single Precision Performance
6.74 TFLOPS

RT Core Performance
13.2 TFLOPS

Tensor Performance
53.8 TFLOPS2

GPU Memory
8 GB GDDR6

Memory Interface
128-bit

Memory Bandwidth
192 GB/sec

Display Connectors
4x mDisplayPort 1.4a

NVENC | NVDEC
1x | 2x (+ AV1 decode)

System Interface
PCI Express 4.0 x83

NVLink
Not Supported

Form Factor
2.7 Inch H x 6.4 Inch L Single Slot

Thermal Solution
Active Fan

Maximum Power Consumption
50 W
