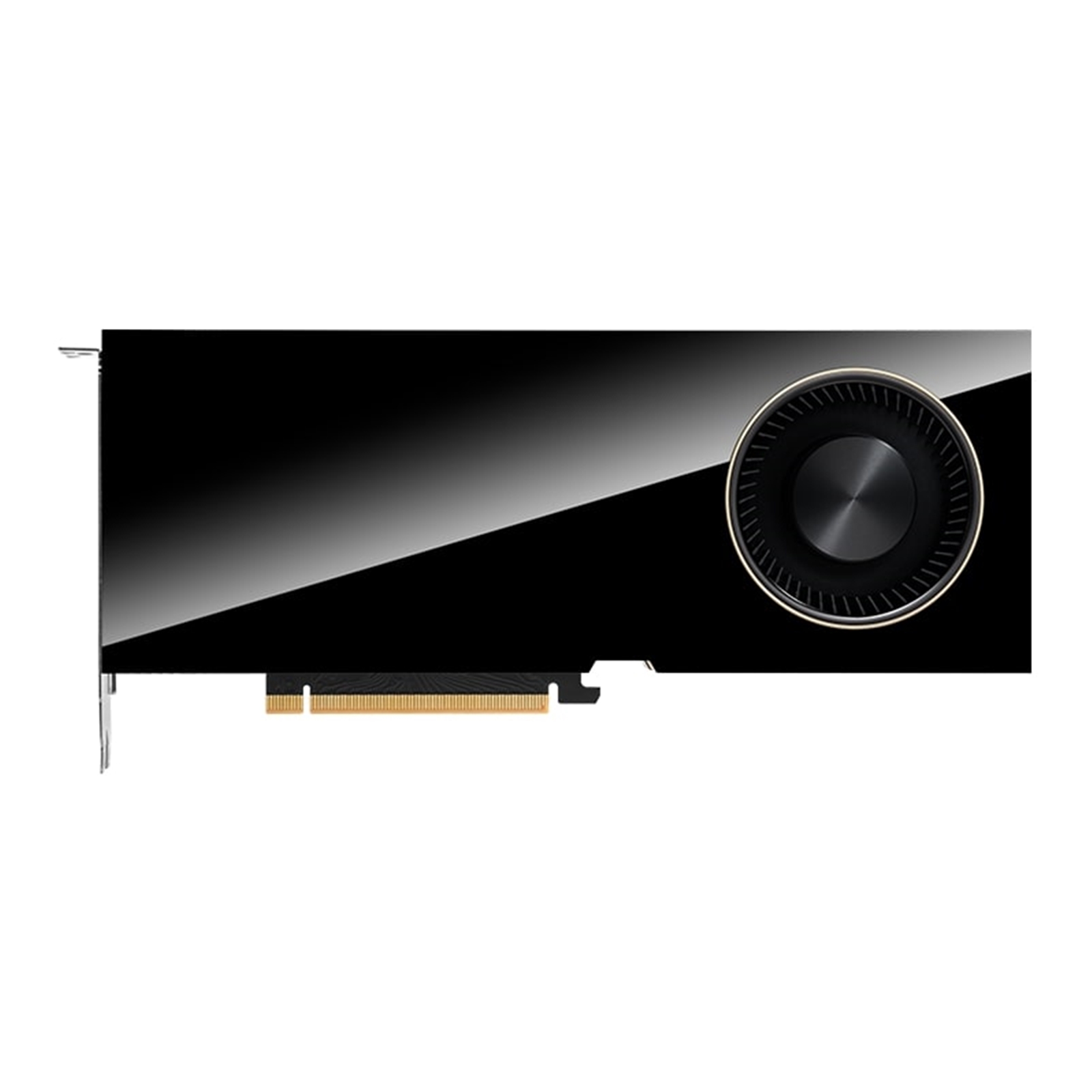

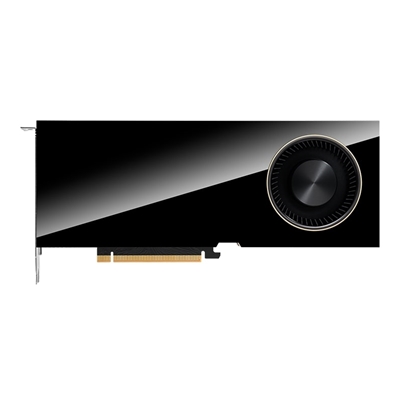

NVIDIA RTX 6000 ADA GENERATION
Performance For Endless Possibilities
The way people work is undergoing a drastic change with distributed teams and remote workers as the new normal. Artists are facing an ever-increasing demand for differentiated and visually compelling content. Designers and engineers are striving to create more complex and efficient designs in highly supply-constrained environments. Scientists, researchers, and medical professionals are faced with incredible challenges that require the rapid development of solutions on a global scale.

The NVIDIA RTX 6000 Ada Generation is designed to meet the challenges of today's professional workflows. Built on the NVIDIA Ada Lovelace architecture, the RTX 6000 Ada combines 142 third-generation RT Cores, 568 fourth-generation Tensor Cores, and 18176 CUDA cores with 48GB of graphics memory to deliver the next generation of AI graphics and petaflop inferencing performance for unprecedented speed-up of rendering, AI, graphics, and compute workloads. RTX 6000 Ada-powered workstations provide what you need to succeed in today's ultra-challenging business environment.

Key Features
Architecture - NVIDIA Ada Lovelace Architecture
Process Size - 4nm NVIDIA Custom Process | TSMC
Die Size - 608.4 mm
Transistors - 76.3 Billion
CUDA Cores - 18176
Tensor Cores - 568 Gen-4
RT Cores - 142 Gen-3
GPU Memory - 48 GB GDDR6 with ECC
Memory Interface - 384-bit
Graphics Bus - PCI Express Gen 4.0 x16
Display Connectors - DP 1.4 (4)
Form Factor - 4.4" H x 10.5" L, Dual-Slot
Thermal Solution - Active Fansink
AR/MR/VR/XR Capable - Yes
NVIDIA 3D Vision and 3D Vision Pro - Support via Optional 3-pin mini-DIN
Frame Lock - Compatible with NVIDIA Quadro Sync II
Maximum Power Consumption - 300 W
Auxiliary Power Connector - 1x PCIe CEMS 16-pin
NVENC | NVDEC - 3x | 3x + AV1 Encode and Decode

Specifications

Product
NVIDIA RTX 6000 Ada Generation

Architecture
NVIDIA Ada Lovelace Architecture

Foundry
TSMC

Process Size
4 nm NVIDIA Custom Process

Transistors
76.3 billion

Die Size
608.4 mm

CUDA Parallel Processing Cores
18,176

RT Cores
142 | Gen 3

NVIDIA Tensor Cores
568

NVIDIA RT Cores
142

Single-Precision Performance
91.1 TFLOPS

RT Core Performance
210.6 TFLOPS

Tensor Performance
1457.0 TFLOPS2

GPU Memory
48 GB GDDR6 with ECC

Memory Interface
384-bit

Memory Bandwidth
960 GB/s

Max Power Consumption
300W

Graphics Bus
PCI Express 4.0 x16

Display Connectors
DP 1.4a (4)3

Form Factor
4.4 Inch H x 10.5 Inch L Dual Slot

Product Weight
1.180 kg

Thermal Solution
Blower Active Fan

vGPU Software Support
NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation (vWS)

vGPU Profiles Supported
1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB

NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin Mini DIN

Frame Lock
Compatible (with Quadro Sync II)

NVLink
Not Supported

NVLink Interconnect
Not Supported

Power Connector
1x PCIe CEM5 16-pin

NVENC | NVDEC
3x | 3x (+AV1 Encode & Decode)
