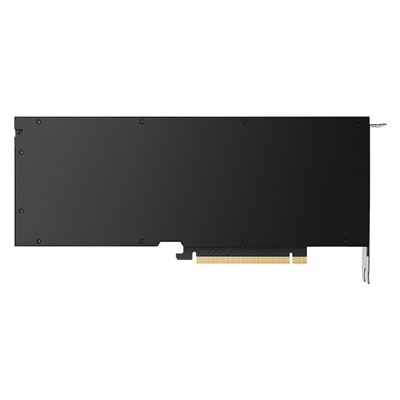

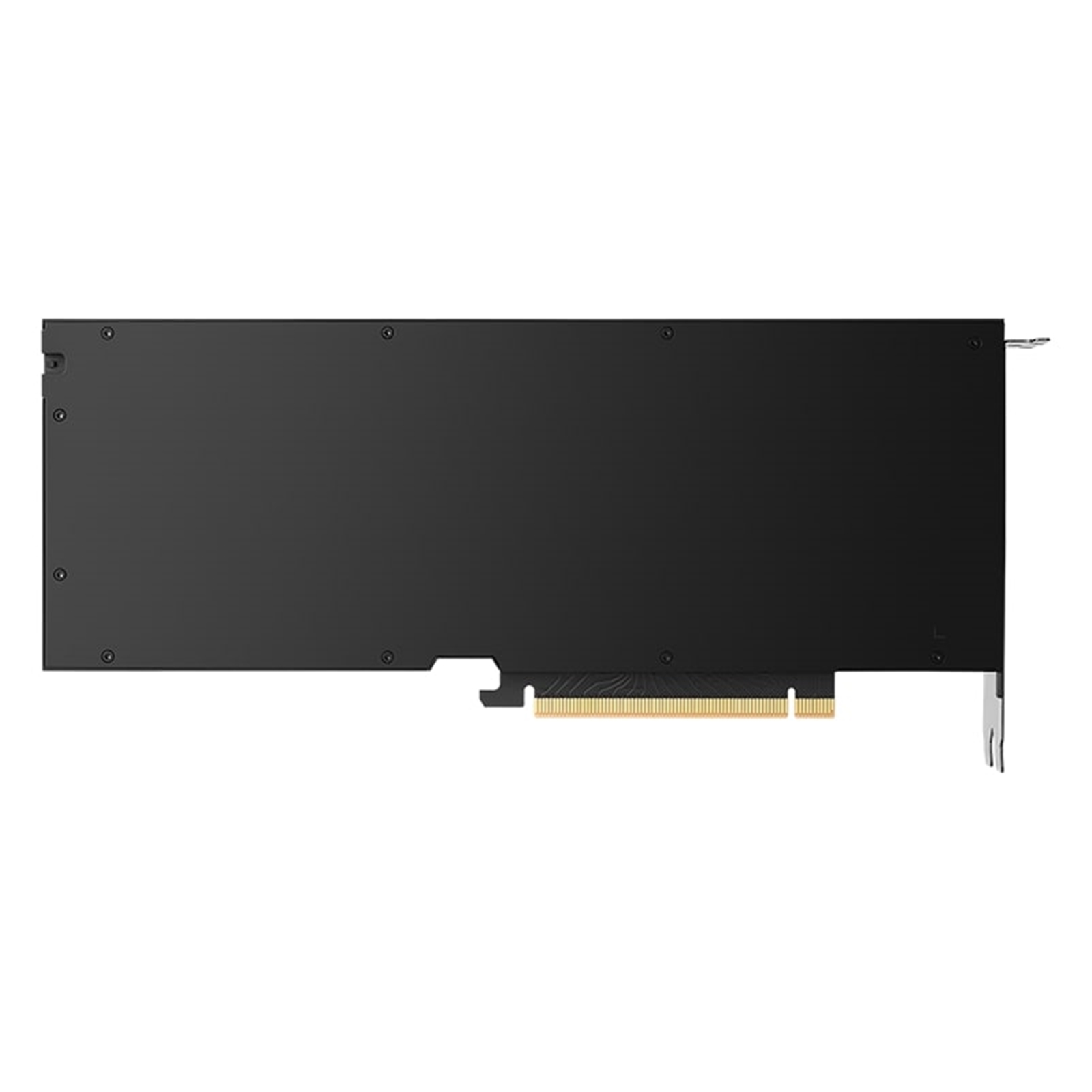

NVIDIA RTX 4500 ADA GENERATION
Performance for Endless Possibilities
Industries are embracing accelerated computing and AI to tackle powerful dynamics and unlock transformative possibilities. Generative AI is reshaping the way professionals create and innovate across various domains, from design and engineering to entertainment and healthcare.
The NVIDIA RTX 4500 Ada Generation, built on the ultra-efficient NVIDIA Ada Lovelace architecture, combines 60 third-generation RT Cores, 240 fourth-generation Tensor Cores, and 7,680 CUDA cores with 24GB of graphics memory to deliver fast ray tracing and AI-powered graphics. Discover new ways to create an incredible workflow acceleration with RTX 4500.
Key Features
Architecture - NVIDIA Ada Lovelace Architecture
Foundry - TSMC
Process Size - 4 nm NVIDIA Custom Process
Transistors - 35.8 billion
Die Size - 294.5 mm2
CUDA Parallel Processing Cores - 7,680
NVIDIA Tensor Cores - 240
NVIDIA RT Cores - 60
Single-Precision Performance - 39.9 TFLOPS
RT Core Performance - 92.2 TFLOPS
Tensor Performance - 637.8 TFLOPS2
GPU Memory - 24 GB GDDR6 with ECC
Memory Interface - 192-bit
Memory Bandwidth - 432 GB/s
Max Power Consumption - 210W
Graphics Bus - PCI Express 4.0 x16
Display Connectors - DP 1.4a (4)3
Form Factor - 4.4" (H) x 10.5"(L) Dual Slot
Product Weight - 1079.7g
Thermal Solution - Blower Active Fan
NVIDIA 3D Vision and 3D Vision Pro - Support via 3-pin mini DIN
Frame Lock - Compatible (with Quadro Sync II)
NVLink - Not Supported
NVENC | NVDEC - 2x | 2x (+AV1 Encode & Decode)
Specifications
Product
NVIDIA RTX 4500 Ada Generation
Architecture
NVIDIA Ada Lovelace Architecture
Foundry
TSMC
Process Size
4 nm NVIDIA Custom Process
Transistors
35.8 billion
Die Size
294.5 mm2
CUDA Parallel Processing Cores
7,680
NVIDIA Tensor Cores
240
NVIDIA RT Cores
60
Single-Precision Performance
39.9 TFLOPS
RT Core Performance
92.2 TFLOPS
Tensor Performance
637.8 TFLOPS2
GPU Memory
24 GB GDDR6 with ECC
Memory Interface
192-bit
Memory Bandwidth
432 GB/s
Max Power Consumption
210W
Graphics Bus
PCI Express 4.0 x16
Display Connectors
DP 1.4a (4)3
Form Factor
4.4 Inch (H) x 10.5 Inch (L) Dual Slot
Product Weight
1079.7 g
Thermal Solution
Blower Active Fan
NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN
Frame Lock
Compatible (with Quadro Sync II)
NVLink
Not Supported
NVENC | NVDEC
2x | 2x (+AV1 Encode & Decode)
Warranty:
3 Year Warranty, 1 Year RTB, 2 Years Manufacturers, please see www.pny.eu for more details.
|
DESIGN
|
| Product colour |
Black |
| Cooling type |
Active |
ENERGY MANAGEMENT
|
| Power consumption (max) |
210 W |
MEMORY
|
| Graphics card memory type |
GDDR6 |
| Data transfer rate |
432 Gbit/s |
| Memory bus |
192 bit |
| Discrete graphics card memory |
24 GB |
PERFORMANCE
|
| TV tuner integrated |
No |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Shader model version |
6.7 |
| Dual Link DVI |
No |
| HDCP |
Yes |
| NVIDIA 3D Vision |
Yes |
| HDCP version |
2.2 |
| Virtual Reality (VR) ready |
Yes |
PORTS & INTERFACES
|
| Interface type |
PCI Express x16 4.0 |
| DisplayPorts quantity |
4 |
| DisplayPort version |
1.4a |
PROCESSOR
|
| Graphics processor |
RTX 4500 Ada |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| CUDA cores |
7680 |
| Graphics processor family |
NVIDIA |
| Lithography |
4 nm |
WEIGHT & DIMENSIONS
|
| Weight |
1.08 kg |
| Height |
111.8 mm |
| Length |
266.7 mm |
