Home    Graphics, Displays & Software    Graphics & Sound    Graphics Cards    GRGIG-N5090AXW

Target Components

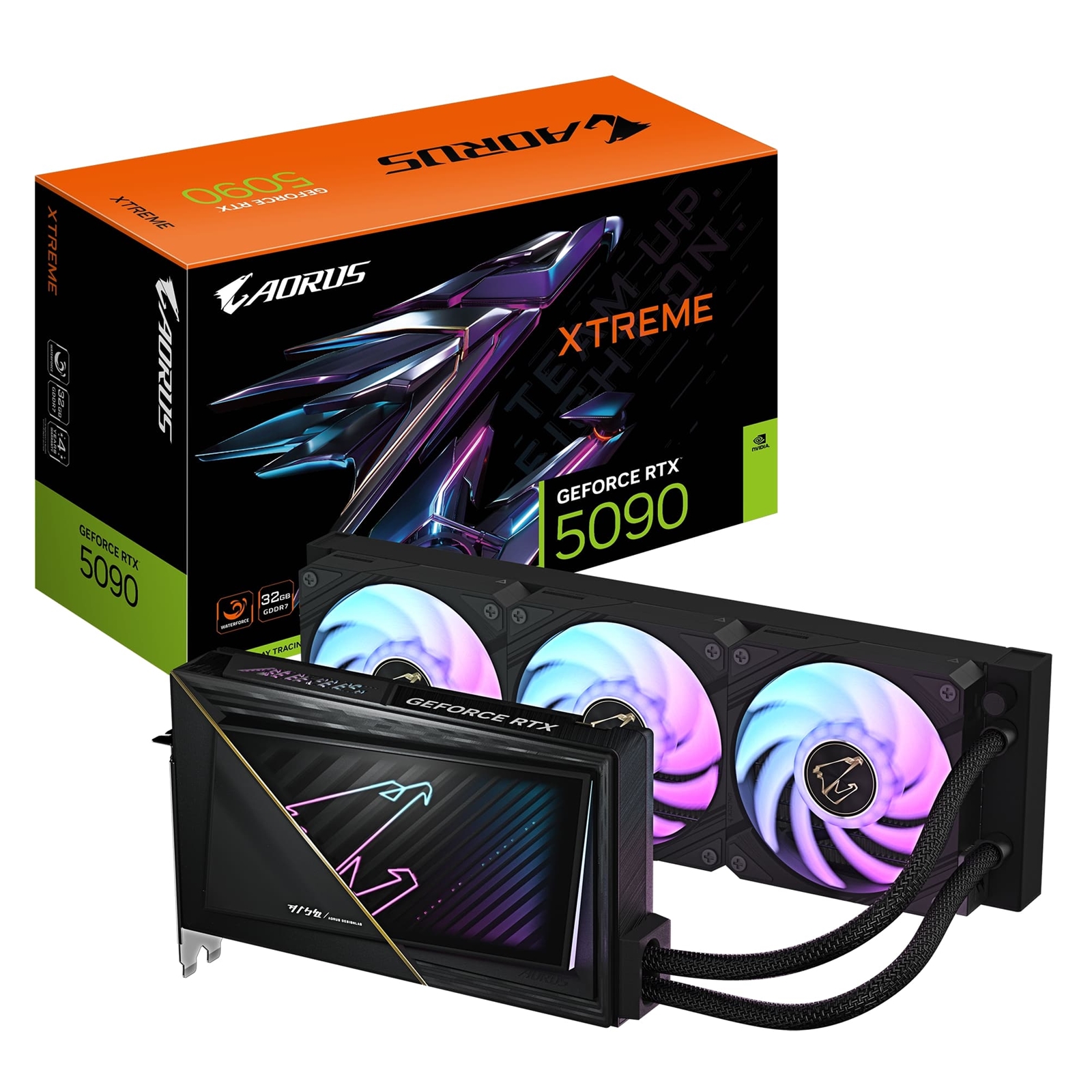

Gigabyte NVIDIA GeForce RTX 5090 AORUS XTREME WATERFORCE 32G Graphics Card, 32GB GDDR7, 21760 CUDA Cores, 2655 MHz Core Clock, Watercooled, RGB, 3x DisplayPorts / 1x HDMI Port

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5090
Form Factor2x ATX
Memory32GB
FansWater Cooled
RGBYes
/productImages/80/GRGIG-N5090AXW.jpg
/productImages/80/207979.JPG
/productImages/80/207980.JPG
/productImages/80/207981.JPG
/productImages/80/207982.JPG
/productImages/80/207983.JPG
/productImages/80/207984.JPG
/productImages/80/207985.JPG
Manufacturer : GIGABYTE
EAN : 4719331355968
Manufacturer Part Code : GV-N5090AORUSX W-32GD
Weight : 3.6 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5090
Form Factor2x ATX
Memory32GB
FansWater Cooled
RGBYes
Manufacturer :
GIGABYTE

EAN :
4719331355968

Manufacturer Part Code :
GV-N5090AORUSX W-32GD

Weight :
3.6 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

AORUS GeForce RTX 5090 XTREME WATERFORCE 32G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5090
Integrated with 32GB GDDR7 512bit memory interface
WATERFORCE all-in-one cooling system
Liquid metal thermal grease for GPU
Server-grade thermal conductive gel
360mm radiator with three120mm ARGB fans
RGB Lighting
Protective metal back plate
4 Years Warranty (Online registration required)

CORE CLOCK
2655 MHz (Reference card : 2407MHz)

SPECIFICATION

Graphics Processing
GeForce RTX 5090

Core Clock
2655 MHz (Reference card : 2407MHz)

CUDA Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=245 W=146 H=36 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
1000W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1b x 3
HDMI 2.1b x 1

Accessories
Quick guide
Warranty registration
1 x 12V-2x6 to 4 x PCIe 8pin adapter
AORUS identity sticker
AORUS metal sticker
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

There are currently no data sheets available for this product.
